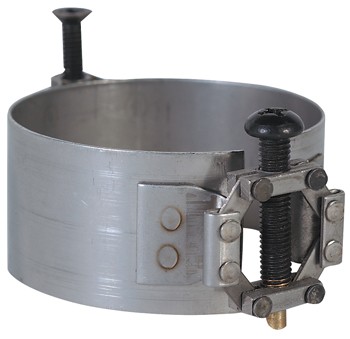

1 ROUND ALUMINUM CLAMP MS28042-4AMS28042-4A Round Clamp | 1in Diameter, 1in Depth, Anodized FinishMSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel.This avionics clamp (Alternate Part# MS28042-4A) measures 1 inch in diameter, with a 1-inch mounting depth and constructed of light weight aluminum with an anodized finish.Simplifies avionic equipment retrofits for replacement or repairDoes not require removal of the entire panelAnti-corrosion Chem-film, anodized aluminum finishProduct CodesMfr Part No:MS28042-4AMIL SPEC:MS28042-4AECCN:EAR99MIL SPEC:MS28042-4ASCHEDULE B CODE:7606.92.0050Shape: Round Size: 1 inch diameter Depth: 1 in Material: Aluminum Finish: Anodized..

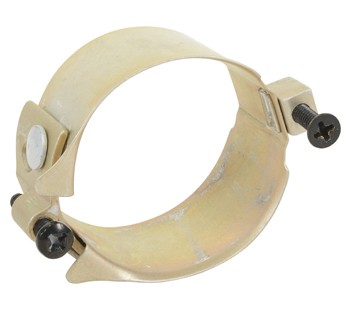

1.5 RD ALUM PER 9M1029-3A REVBCHEM FILM FINISH 6454464544 Round Avionic Clamp | 1.5in Diameter, 1in Depth Chem-Film Anodized FinishMSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel. This round avionics clamp (Alternate Part# 64544) measures 1.5 inches in diameter, with a 1-inch mounting depth and constructed of light weight aluminum with a chem-film anodized finish.Simplifies avionic equipment retrofits for replacement or repairDoes not require removal of the entire panelAnti-corrosion Chem-film, anodized aluminum finishProduct CodesMfr Part No:64544Shape: Round Size: 1.5 in Depth: 1 in Material: Aluminum Finish: Chem Filmed..

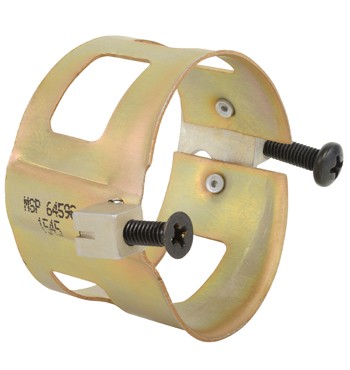

2 CLAMP, 10 DEG. ANGLE 6459864598 Angle Round Clamp | 2in Diameter, 10° Angle, Anodized FinishMSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel. This angled avionics clamp (Alternate Part# 64598) measures 2 inches in diameter, with a 10° angle and constructed of light weight aluminum with an anodized finish.Simplifies avionic equipment retrofits for replacement or repairDoes not require removal of the entire panelAnti-corrosion Chem-film, anodized aluminum finishProduct CodesMfr Part No:64598Shape: Arinc Size: 2 in Material: Aluminum Finish: Anodized..

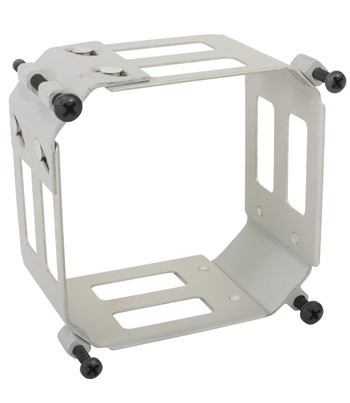

3 ATI 2 DEEP 9D0011-309D0011-30 ARINC Clamp | 3 ATI, 2in Depth, Anodized FinishMSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel. This avionics clamp (Alternate Part# 9D0011-30) measures 3 inches, with a 2-inch mounting depth and constructed of light weight aluminum with an anodized finish.Simplifies avionic equipment retrofits for replacement or repairDoes not require removal of the entire panelAnti-corrosion Chem-film, anodized aluminum finishProduct CodesMfr Part No:9D0011-30Type: Arinc Shape: Square Size: 3 in Material: Aluminum Finish: Anodized..

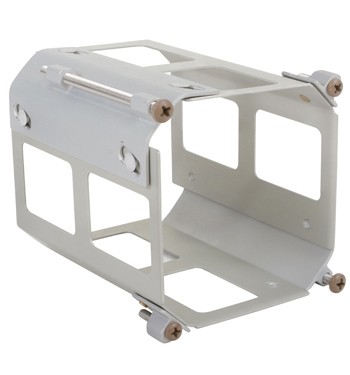

3 ATI 4 DEEP CLAMP 64435B-103832864435B1038 ARINC Clamp | 3 ATI, 4in DepthMSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel. This avionics shelf clamp (Alternate Part# 64391B101) measures 4 inches, with a 7-inch mounting depth and constructed of light weight aluminum with an anodized finish.Simplifies avionic equipment retrofits for replacement or repairDoes not require removal of the entire panelAnti-corrosion Chem-film, anodized aluminum finishProduct CodesMfr Part No:64435B-1038328Type: Arinc Shape: Square Working Size: 3.175 x 3.175 in Depth: 4 in Mounting Hole Location: 3.060 x 3.060 in Material: Aluminum Finish: Anodized..

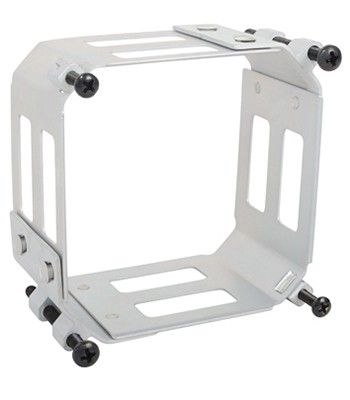

3ATI 2 DEEP, CLEAR CHEM FILM 64311B-101C64311B101C 3 ATI Clamp | 3 ATI, 2in Depth, Chem-Film FinishMSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel. This square ATI avionics clamp (Alternate Part# 64311B101C) measures 3 inches, with a 2-inch mounting depth and constructed of light weight aluminum with a chromic-anodized finish.Simplifies avionic equipment retrofits for replacement or repairDoes not require removal of the entire panelAnti-corrosion Chem-film, anodized aluminum finishProduct CodesMfr Part No:64311B-101CType: Arinc Shape: Square Working Size: 3.175 x 3.175 ±0.15 in Depth: 2 in Mounting Hole Location: 3.175 x 3.175 ±0.005 in Material: Aluminum Finish: Clear Chem-Film..

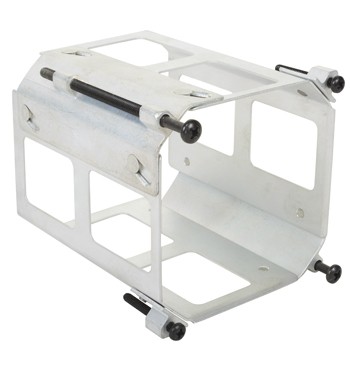

3ATI CLAMP 4 DP SS LUG RVTCLEAR CHEM FILM COATING 64662B-11064662B-107 ARINC Clamp | 3in, 4in Depth, Chem-Film Alodine FinishMSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel.This avionics clamp (Alternate Part# 64662B-110) measures 3.175 x 3.175 inches, with a 4-inch mounting depth and constructed of light weight aluminum with a clear chem-film alodine finish.Simplifies avionic equipment retrofits for replacement or repairDoes not require removal of the entire panelAnti-corrosion Chem-film, anodized aluminum finishProduct CodesMfr Part No:64662B-110ECCN:EAR99Shape: Arinc Size: 3.175 x 3.175 in Depth: 4 in Material: Aluminum Finish: Chem-Film (Alodine)..

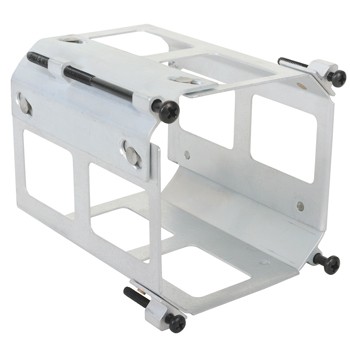

3ATI X 4 DEEP, CLAMP, LG. SCRclear chem filmed 64662B-10864662B-108 ARINC Clamp | 3 ATI, 3 x 3in, 4in depth, Chem-Film FinishMSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel. This avionics clamp (Alternate Part# 64662B-108) is 3 ATI clamp, measuring 3 x 3 inches, with a 4-inch mounting depth and constructed of light weight aluminum with a clear chem-film finish.Simplifies avionic equipment retrofits for replacement or repairDoes not require removal of the entire panelAnti-corrosion Chem-film, anodized aluminum finishProduct CodesMfr Part No:64662B-108Shape: ARINC Size: 3.175 x 3.175 in Depth: 4 in Material: Aluminum Finish: Chem-Film (Alodine)..

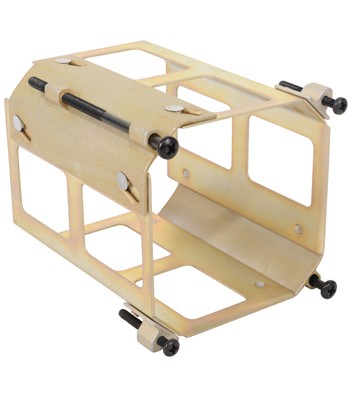

3ATI X 4 DEEP, CLAMP, LG. SCRClosing bracket elongated hole 64662B-10964662B-109 ARINC Clamp | 3.175 x 3.175in, 4in Depth, Chem-Film AlodineMSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel. This avionics clamp (Alternate Part# 64662B-109) measures 3.175 x 3.175 inches, with a 4-inch mounting depth and constructed of light weight aluminum with a clear chem-film alodine finish. SCRClosing bracket with elongated hole.Simplifies avionic equipment retrofits for replacement or repairDoes not require removal of the entire panelAnti-corrosion Chem-film, anodized aluminum finishProduct CodesMfr Part No:64662B-109Shape: Arinc Size: 3.175 x 3.175 in Depth: 4 in Material: Aluminum Finish: Chem-Film (Alodine)..

A2 ADAHRS MODULE/Air Data, Attitude and Heading Reference system. Compatible with EKP V providing attitude, heading, altitude and airspeed to the system. UX0IM000AMA2 ADAHRS Module | EKP V SystemThe AvMap A2 ADAHRS module is packed with solid-state 3-axis gyro, accelerometer, magnetic field sensor and air data sensors. The added A2 ADAHRS module extends the functionality of the EKP V and turns it into AvMap EFIS (Electronic Flight Information System), a centralized display for both navigation and primary flight information.It is suggested to install the A2 aligned with the aircraft longitudinal axis, as it simplifies the attitude calibration process. The A2 can be installed in any orientation, whereafter a proper calibration needs to be performed.Solid-state gyros, accelerometers, magnetic field sensors, and air data sensorsConnects to aircrafts pitot-static systemCompatible with EKP VAirspeed, altitude, attitude, side slip and heading wind indicatorClear HSI displayAltimeter, heading, and V-speed reference valuesProduct CodesMfr Part No:UX0IM000AMWeight: 1.8 oz Dimensions: 2.48 x 2.28 x 0.098 in Temperature range: -40ºF to 185ºF Acceleration range: (3 axis) ±8 g Rotation range: ±1600 deg/s Air data sensors: 0 – 250 kts; –3000, 44000 ft..

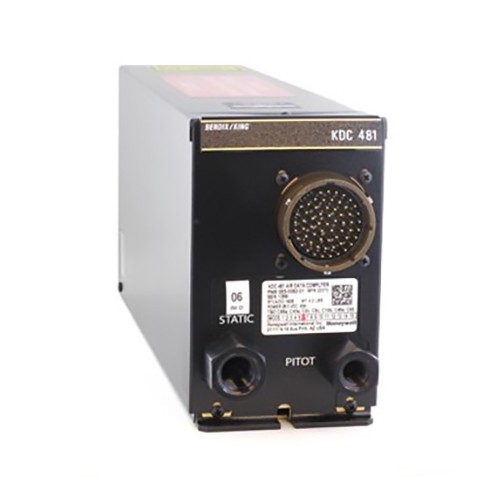

AIR DATA COMPUTER HELICOPTER 065-0082-12KDC 481T Central Air Data Computer | Helicopter, TCASThe KDC 481T is the Central Air Data Computer that processes pitot and static pressures and air temperature inputs for the KAD 480 Air Data System. The processed information is supplied to both the KCP 520 Flight Computer and KAV 485 Altimeter/Vertical speed indicator. The KDC 481T uses a strap module which contains aircraft specific information required for overspeed protection. The Central Air Data Computer is also capable of supplying  air data information to optional Navigation Management Systems.This KDC 481T (Alternate Part# 65-0082-12) helicopter version provides TCAS/RVSM operations and rotor modulation immunity.Product CodesMfr Part No:065-0082-12SCHEDULE B CODE:9031.80.8080Weight: 4.8 lb (w/ rack) Dimensions: 3.25 x 5.43 x 13.63 in (w/ mating connector) Mounting: remote with supplied rack Altitude Range: -1,000 ft – 55,000 ft Temperature: -55°C to 70°C Power Inputs: 28 VDC @ 500 mA Inputs: Test, Gear up/down, Test Clock, Test TXD, TAT Probe Heat, Pitot Probe Heat, Static Source Heat, AOA Sensor, Fast/Slow Deviation, Altitude SSEC, Airpseed SSEC, 40% Flap, 100% Flap, Temp Sensor Select, Rosemount Temp Hi, Rosemount Temp Lo, AOA Signal, 429 Channel 1 thru 7, TCAS Installation, Bus Speed Select, Spare 1, Spare 2, Spare 3, Spare 4, Spare 5 Outputs: Over and under 50 Kts, Overspeed Warning, Test RXD, Transponder, AOA Hi, +12 Vdc Reference, Discrete #1, Discrete #2, Discrete #3, Discrete #4, Discrete #5, Discrete #6, 429 Channels, Instruments 1, Instruments 2, Flight Control, General Purpose Environmental: RTCA/DO-160C TSO C2d, C8d, C10b, C43b, C46a, C88a, C95, C119a ..

AIR DATA COMPUTER TANDEM 065-0082-11KDC 481T Central Air Data Computer | Tandem, No TCASThe KDC 481T is the Central Air Data Computer that processes pitot and static pressures and air temperature inputs for the KAD 480 Air Data System. The processed information is supplied to both the KCP 520 Flight Computer and KAV 485 Altimeter/Vertical speed indicator. The KDC 481T uses a strap module which contains aircraft specific information required for overspeed protection. The Central Air Data Computer is also capable of supplying  air data information to optional Navigation Management Systems.This KDC 481T (Alternate Part# 65-0082-11) has no TCAS, tandem operation, and both can act as as the master unit.Product CodesMfr Part No:065-0082-11SCHEDULE B CODE:9031.80.8080Weight: 4.8 lb (w/ rack) Dimensions: 3.25 x 5.43 x 13.63 in (w/ mating connector) Mounting: remote with supplied rack Altitude Range: -1,000 ft – 55,000 ft Temperature: -55°C to 70°C Power Inputs: 28 VDC @ 500 mA Inputs: Test, Gear up/down, Test Clock, Test TXD, TAT Probe Heat, Pitot Probe Heat, Static Source Heat, AOA Sensor, Fast/Slow Deviation, Altitude SSEC, Airpseed SSEC, 40% Flap, 100% Flap, Temp Sensor Select, Rosemount Temp Hi, Rosemount Temp Lo, AOA Signal, 429 Channel 1 thru 7, TCAS Installation, Bus Speed Select, Spare 1, Spare 2, Spare 3, Spare 4, Spare 5 Outputs: Over and under 50 Kts, Overspeed Warning, Test RXD, Transponder, AOA Hi, +12 Vdc Reference, Discrete #1, Discrete #2, Discrete #3, Discrete #4, Discrete #5, Discrete #6, 429 Channels, Instruments 1, Instruments 2, Flight Control, General Purpose Environmental: RTCA/DO-160C TSO C2d, C8d, C10b, C43b, C46a, C88a, C95, C119a ..

AIR DATA COMPUTER TCAS 065-00082-0010KDC 481T Central Air Data Computer | TCASThe KDC 481T is the Central Air Data Computer that processes pitot and static pressures and air temperature inputs for the KAD 480 Air Data System. The processed information is supplied to both the KCP 520 Flight Computer and KAV 485 Altimeter/Vertical speed indicator. The KDC 481T uses a strap module which contains aircraft specific information required for overspeed protection. The Central Air Data Computer is also capable of supplying  air data information to optional Navigation Management Systems. This KDC 481T (Alternate Part# 00082-0010) includes TCAS functionality.Product CodesMfr Part No:065-00082-0010SCHEDULE B CODE:9031.80.8080Weight: 4.8 lb (w/ rack) Dimensions: 3.25 x 5.43 x 13.63 in (w/ mating connector) Mounting: remote with supplied rack Altitude Range: -1,000 ft – 55,000 ft Temperature: -55°C to 70°C Power Inputs: 28 VDC @ 500 mA Inputs: Test, Gear up/down, Test Clock, Test TXD, TAT Probe Heat, Pitot Probe Heat, Static Source Heat, AOA Sensor, Fast/Slow Deviation, Altitude SSEC, Airpseed SSEC, 40% Flap, 100% Flap, Temp Sensor Select, Rosemount Temp Hi, Rosemount Temp Lo, AOA Signal, 429 Channel 1 thru 7, TCAS Installation, Bus Speed Select, Spare 1, Spare 2, Spare 3, Spare 4, Spare 5 Outputs: Over and under 50 Kts, Overspeed Warning, Test RXD, Transponder, AOA Hi, +12 Vdc Reference, Discrete #1, Discrete #2, Discrete #3, Discrete #4, Discrete #5, Discrete #6, 429 Channels, Instruments 1, Instruments 2, Flight Control, General Purpose Environmental: RTCA/DO-160C TSO C2d, C8d, C10b, C43b, C46a, C88a, C95, C119a ..

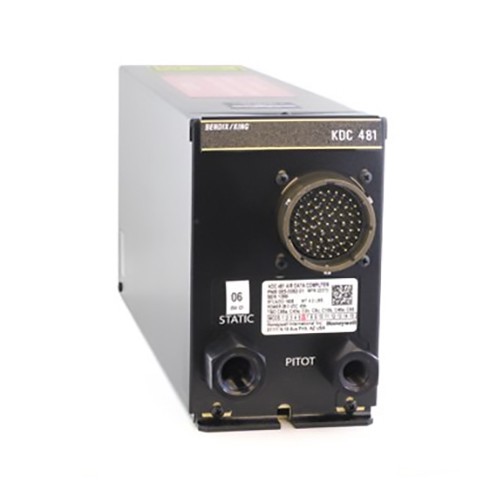

AIR DATA COMPUTER TCAS/RVSM 065-0082-14KDC 481T Central Air Data Computer | TCAS/RVSMThe KDC 481T is the Central Air Data Computer that processes pitot and static pressures and air temperature inputs for the KAD 480 Air Data System. The processed information is supplied to both the KCP 520 Flight Computer and KAV 485 Altimeter/Vertical speed indicator. The KDC 481T uses a strap module which contains aircraft specific information required for overspeed protection. The Central Air Data Computer is also capable of supplying  air data information to optional Navigation Management Systems. This KDC 481T (Alternate Part# 65-0082-14) provides TCAS/RVSM operations. Product CodesMfr Part No:065-0082-14SCHEDULE B CODE:9031.80.8080Weight: 4.8 lb (w/ rack) Dimensions: 3.25 x 5.43 x 13.63 in (w/ mating connector) Mounting: remote with supplied rack Altitude Range: -1,000 ft – 55,000 ft Temperature: -55°C to 70°C Power Inputs: 28 VDC @ 500 mA Inputs: Test, Gear up/down, Test Clock, Test TXD, TAT Probe Heat, Pitot Probe Heat, Static Source Heat, AOA Sensor, Fast/Slow Deviation, Altitude SSEC, Airpseed SSEC, 40% Flap, 100% Flap, Temp Sensor Select, Rosemount Temp Hi, Rosemount Temp Lo, AOA Signal, 429 Channel 1 thru 7, TCAS Installation, Bus Speed Select, Spare 1, Spare 2, Spare 3, Spare 4, Spare 5 Outputs: Over and under 50 Kts, Overspeed Warning, Test RXD, Transponder, AOA Hi, +12 Vdc Reference, Discrete #1, Discrete #2, Discrete #3, Discrete #4, Discrete #5, Discrete #6, 429 Channels, Instruments 1, Instruments 2, Flight Control, General Purpose Environmental: RTCA/DO-160C..

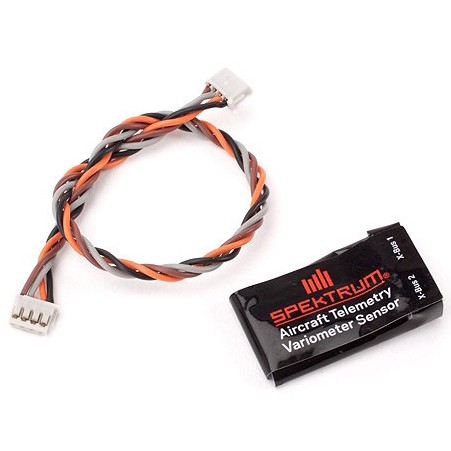

Aircraft Telemetry Variometer Sensor SPK A9589. Aircraft sensor. Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number SPK A9589 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

AIRPLANE COASTERS SET OF FOUR 97953. FAA-approved aviation aftermarket part. Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number 97953 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

ALARM CLOCK/Cessna Altimeter CES-DM60ALARM CLOCK/Cessna Altimeter Cessna Altimeter Alarm Clock.Dimensions: 3.5 x 3.5Product CodesMfr Part No:CES-DM60ECCN:EAR99SCHEDULE B CODE:9105.19.0000..

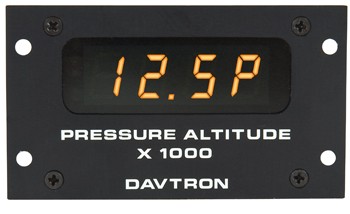

ALT ENCODER PRESSURE ALTITUDE/Rectangle, 62K. Pressure Altitude: -1,000 to 62,700 ft 650-1ALT ENCODER PRESSURE ALTITUDE/Rectangle, 62K. Pressure Altitude: -1,000 to 62,700 ftThe model 650 is a digital readout for the blind encoding altimeter, which reads altitudes from minus 1,000 to plus 30,700 in one hundred foot increments. It displays the altitude your transponder is reporting to ATC, and becomes an emergency altimeter back up.Digital pressure altitude for density altitude conversion, etc. Direct readout of encoding altimeter verifying proper operationMinimum panel space Lightweight Automatic dimming Incandescent display Panel or clock mount Altitude polarity Blanks in incorrect gray code inputsProduct CodesMfr Part No:650-1PMA:PQ1062NMSCHEDULE B CODE:9030.39.0080..

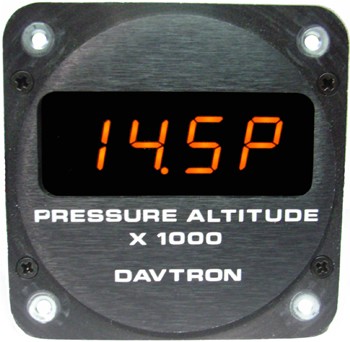

ALT ENCODER PRESSURE ALTITUDE/Round, 62K. Pressure Altitude: -1,000 to 62,700 ft 650-2ALT ENCODER PRESSURE ALTITUDE/Round, 62K. Pressure Altitude: -1,000 to 62,700 ftFive Function IndicatorThe model 650 is a digital readout for the blind encoding altimeter, which reads altitudes from minus 1,000 to plus 30,700 in one hundred foot increments. It displays the altitude your transponder is reporting to ATC, and becomes an emergency altimeter back up.Digital pressure altitude for density altitude conversion, etc. Direct readout of encoding altimeter verifying proper operationMinimum panel space Lightweight Automatic dimming Incandescent display Panel or clock mount Altitude polarity Blanks in incorrect gray code inputsProduct CodesMfr Part No:650-2PMA:PQ1062NMSCHEDULE B CODE:8803.90.9010..

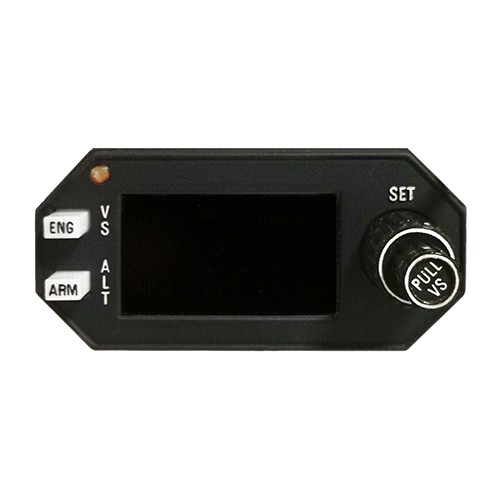

ALT SEL KFC275/325 5VBLK 12MHZ 065-00089-0005KAS 297C Altitude/Vertical Speed Preselector | 5V, Black, For KFC275/325 FCSThe KAS 297C serves as an altitude preselector, altitude alerter, and altitude capture guidance unit. Altitudes from sea level to 49,000 ft. may be preselected in increments of 100 feet. Selected altitude and visual warning display is controlled by automatic light dimming circuit that provides sufficient intensity under all cockpit conditions. Altitude Selector may be coupled to Flight Director and Autopilot for automatic altitude capture once climb or descent is selected.Version 065-00089-0005 black bezel with 5V lighting.Used in KFC275/325 Flight Control SystemFunctions along with the KEA346 or KEA130A Encoding AltimeterVertical speed selectionVertical syncVertical speed holdAutomatic brightness adjustment by photocellProduct CodesMfr Part No:065-00089-0005SCHEDULE B CODE:9014.20.8040Weight: 1.2 lb Dimensions: 8 x 3.26 x 1.54 in. Power rated: 28VDC with 0.35 amps max TSO: C9c, C52a C1ASXXXXXXABBBB..
