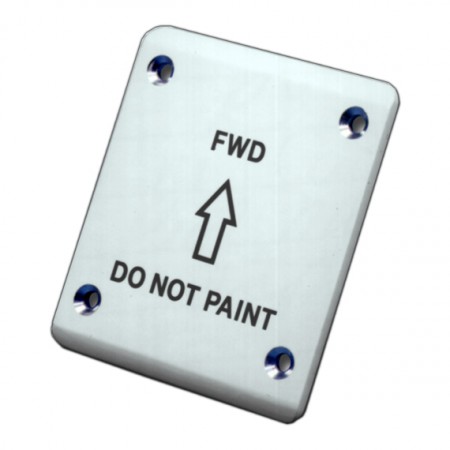

MICROSTRIP ANTENNA/ARINC 707 PN19-1-1
MICROSTRIP ANTENNA/ARINC 707 PN19-1-1PN19 Radio Altimeter Antenna | 4,200M–4,400MHz, ARINC 707
The PN19 series radio altimeter antennas uses microstrip technology to produce an extremely low-profile antenna designed for high quality, low-cost, and lightweight. The dielectric insert and radiating elements are built into a metal housing which protects the dielectric surface from the elements and increases erosion protection, prevents water intrusion, delamination.
This PN19 flush mount antenna (Alternate Part# DMPN19-1-1) is an ARINC 707 type antenna.
- Low profile design
- Microstrip technology
- Unique erosion protection features
- Lightning protection variants available
Product Codes | |
|---|---|
| Mfr Part No: | PN19-1-1 |
| ECCN: | 7A994 |
| SCHEDULE B CODE: | 8526.10.6000 |
| TSO: | C87 |
Weight: 5 ozConnector: TNC femaleFrequency Range: 4,200 MHz – 4,400 MHzVSWR: < 2.0:1 @ 4,200 MHz – 4,400 MHz, max < 1.8:1 @ 4,275 MHz – 4,325 MHz, maxGain: 10 dBiImpedance: 50ΩPolarization: LinearTemperature: -55°C to 85°C, operatingAltitude: -1,000 ft to 70,000 ftVibration: 10G'sApprovals: FAA TSO C87 ARINC 707/552 DO160C...E1-ABC’XWHDNSXXXXXXXXXX MIL-E-5400
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: PN19-1-1
$2,399.99
