GPS NETWORK HI-ISOLATION RACK MOUNT AMPLIFIED ANTENNA SPLITTER - 16 OUTPUTS NHIRMALDCBS1X16: S/0.0/110

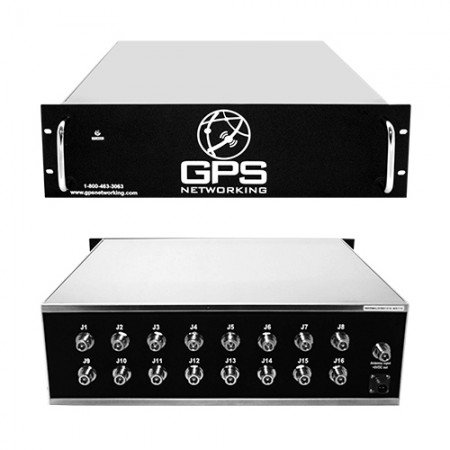

The RMALDCBS1X16 Rack Mount Amplified 1X16 GPS Splitter (GNSS Splitter) is a one input, sixteen output device. The frequency response covers the entire L-band (all GPS/GNSS frequencies) with excellent gain flatness. In the standard configuration, the splitter is powered by the receiver connected to the J1 port that powers the splitter's internal amplifier and outdoor antenna. The other outputs are DC blocked and loaded with 200Ω resistors to simulate the antenna current draw to prevent false antenna alarm faults. Ideally suited for timing and testing applications where the GPS/GNSS signal is required by as many as 16 devices simultaneously.

The NHIRMALD16 is a High Isolation 16 output splitter.
