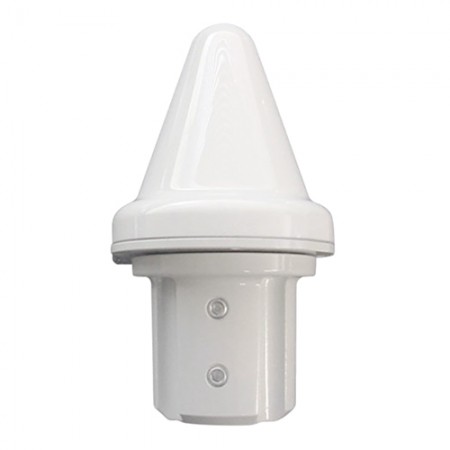

L1 ROOF ANTENNA/ACTIVE L1GPSA-S
L1 ROOF ANTENNA/ACTIVE L1GPSA-SL1 GPS Active Roof Antenna | SMA Connector
The L1GPSA active roof antenna designed to operate on the L1 carrier frequency for timing and synchronization applications. This active antenna maintains excellent performance in harsh environmental conditions. It features high gain, a low noise figure, and low operating current.
This L1GPSA active gps antenna (Alternate Part# L1GPSA-S) as a SMA connector.
- High gain amplified root antenna: 38 dB gain
- Low noise figure: 1.8 dB typical
- Low operating current: 20 mA typical
- Enhanced immunity to lightning surge: IEC61000-4-5 Level 4 (4000V) prevents lightening induced failure
- Optional L1RAMB mount with base and pole available separately
Product Codes | |
|---|---|
| Mfr Part No: | L1GPSA-S |
Weight: 6.6 ozDimensions: 6.6 x 3.54 in (not including connectors)Operating Temperature: -45°C to 85°CRadome Material: White polycarbonateMounting Base Material: aluminumFrequency: 1.575 GHzGain: 38 dB, typicalBandwidth: 10 MHz, typicalFiltering: -60 dB, typicalNoise Figure: 1.8 dB, typicalOutput SWR: 1.5:1, max.Characteristic  Impedance: 50ΩReq. DC Input V.: 20 VDC, typical (5.5 VDC, max.)Current Draw: 20 mA, typical (27 mA, max.)
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: L1GPSA-S
