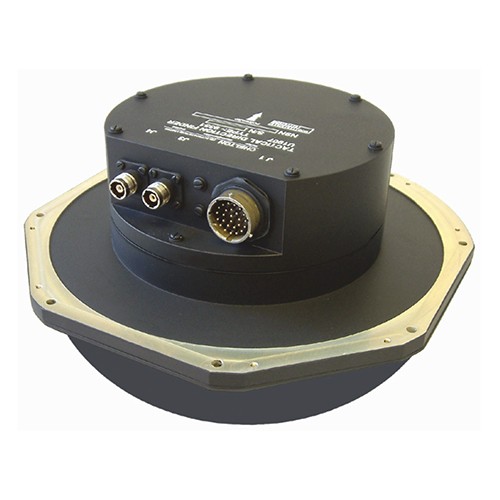

DIRECTION FINDER 935-5P94Type 935 Series Tactical Direction FinderThe 935 series tactical direction finders provide a range of integrated and stand-alone direction finding systems for SAR and CSAR operations. The 935 series offers frequency coverage from 30 MHz to 470 MHz. The five guard receivers allow monitoring of pre-defined distress frequencies. Bearing reading are taken using all six receivers simultaneously. Data decoding is provided for COSAT-SARSAT messages using all of the associated receivers. 300 MHz – 470 MHz frequency rangeFive guard receivers to monitor pre-defined distress frequenciesPreprogrammed main frequenciesProgrammable auxiliary frequenciesOperates with personnel survival radios when used with a personnel locator systemProduct CodesMfr Part No:935-5P94Frequency Range: 30 MHz – 470 MHz Primary Power: 16 to 31.5 VDC, 1.6A max Operational Performance: Accuracy: better than 5 rms (dependent on installation) Mounting Altitude: In-line with airframe (normal or inverted) Mounting Method: ridged Integrated Receiver: 30 MHz – 470 MHz Guard: 212.5 MHz, 156.525 MHz (ch. 70), 156.800 MHz (ch. 16), 243 MHz, 406.025 – 406.076 MHz Specific Functions: CSAR, COSPAS-SARSAT decoding, GMDSS VHF decoding Interface Options: RS 422, ARINC 407, ARINC 429, MIL STD 1553B Installation Dimensions: Antenna Diameter: 286 mm (overall) Antenna Height: 90 mm (above airframe) Antenna Penetration: 75 mm Control/Display Size: 68 x 147 x 182 mm..

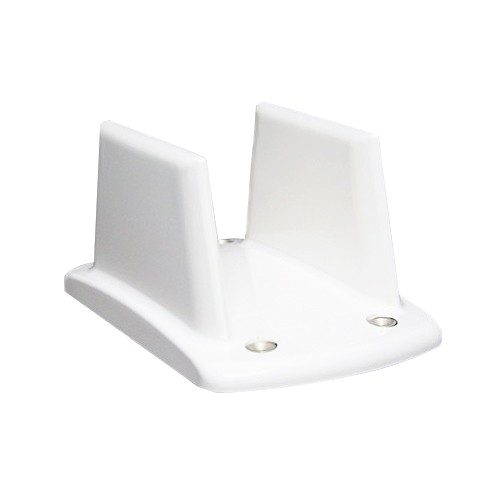

DIRECTIONAL ANTENNA 071-01599-0100KA-815 TCASI Directional Antenna | WhiteThe KA-815 Directional Antenna completes the dual antenna configuration necessary to operate the KMH 880/KTA 870 multi-hazard awareness system. The KA-815 antenna is designed for top or bottom mount and can be used as a pair or with an omni-directional L-band bottom antenna.Directional antennaTop or bottom mountTCAS I operationTNC connectionUsed with KMH-880 & KMH-980 multi-hazard awareness systemUsed with KTA-870 & KTA-970 traffic alert & collision avoidance systemsProduct CodesMfr Part No:071-01599-0100ECCN:7E994SCHEDULE B CODE:8529.10.4000STC:STCWeight: 0.95 lb Dimensions: 3.5 x 5.95 x 2.7 in. TSO compliance: C129..

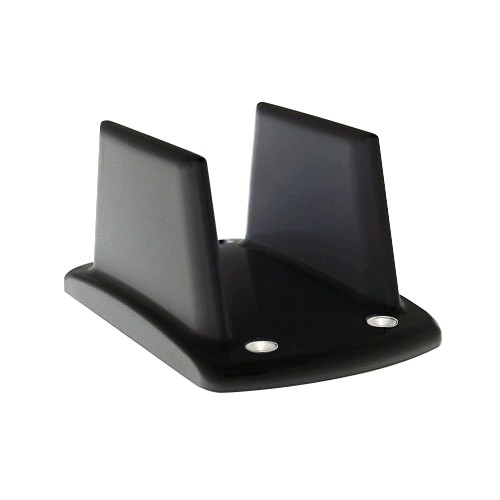

DIRECTIONAL ANTENNA BLACK 071-01599-0200KA-815 TCASI Directional Antenna | BlackThe KA-815 Directional Antenna completes the dual antenna configuration necessary to operate the KMH 880/KTA 870 multi-hazard awareness system. The KA-815 antenna is designed for top or bottom mount and can be used as a pair or with an omni-directional L-band bottom antenna.Directional antennaTop or bottom mountTCAS I operationTNC connectionUsed with KMH-880 & KMH-980 multi-hazard awareness systemUsed with KTA-870 & KTA-970 traffic alert & collision avoidance systemsProduct CodesMfr Part No:071-01599-0200SCHEDULE B CODE:8529.10.4000Weight: 0.95 lb Dimensions: 3.5 x 5.95 x 2.7 in. TSO compliance: C129..

DIRECTIONAL ANTENNA, BLACK 071-00228-0001Directional Antenna | BlackDirectional Antenna. Color black.No product features currently available.Product CodesMfr Part No:071-00228-0001SCHEDULE B CODE:8529.10.40STC:STC..

DM C60-1 S/N 7919 THAT IS IN PERFECTLY NEW CONDITION. SOUTEAFL PURCHASED THIS UNIT AND RECEIVED WITH DISCOLORED PAINT. THE ANTENNA WA REPAINTED BY HARRIS THE MFG BUT THE NEW 8130-3 IS MARKED AS RETURN TO SERVICE...

DM C70-6 S/N 5309, THIS ANTENNA IS IN BRAND NEW CONDITION BUT IS MISSING THE ORIGINAL MFG PACKAGING...

DME TRANSPONDER ANTENNA/BNC Connector, 960-1220 MHz, 50 Ohms, L-Band, 4 Hole Mount, Airspeed 600 Knots CI 305..

DME TRANSPONDER ANTENNA/BNC Connector, L-Band, 4 Hole Mount, 960-1220 MHz and 1030-1090 MHz, 50 Ohms, Airspeed 400 Knots & a White Finish. CI 105-6..

DME TRANSPONDER ANTENNA/BNC Female connector, Color: white, Frequency: 960 1220 MHz, operate at speeds up to 350 mph and altitudes up to 50,000 ft. AV-61..

DME TRANSPONDER ANTENNA/BNC Female Connector, Extended 2 Stud Mount, .70 Stud Length, 960-1220 MHz and 1030-1090 MHz, 50 Ohms, Airspeed 400 Knots & a White Finish. CI 105-16CI 105-16 DME Transponder Antenna | 960-1220 MHzThe CI 105-16 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has an extended two stud mounting configuration. Tested to the tougher DO-160D environmental requirements, it offers the best in ruggedness and performance.This antenna (CI-105-16) was designed specifically to replace the Honeywell Bendix-King KA60. It includes a BNC connector, covers 960 - 1220 MHz frequencies and is rated to 400 Knots TAS at 25,000 ft.Encased in a glass reinforced polyester molded shellExtended two stud mounting configurationIncludes a BNC connectorProduct CodesMfr Part No:CI 105-16ECCN:7A994PROAPP:PT2316NMSCHEDULE B CODE:8529.10.4000TSO:C66c,C74cWeight: 0.2 lb Height: 3.23 in Finish: polyurethane enamel Connector: BNC (female) Frequency:  960 MHz to 1220 MHz VSWR:  1.5:1 @ 960-1220 MHz, maximum 1.3:1 @ 1025-1150 MHz, maximum Polarization: Vertical Radiation pattern: equivalent to a 1/4 wave stub  Impedance: 50Ω Resistance DC: open circuit Power RF: 2.5 KW Peak Temperature: -55°C to 85°C Altitude:  70,000 ft Airspeed: 400 Knots TAS at 25,000 ft..

DME TRANSPONDER ANTENNA/BNC Female Connector, L-Band, 3 Hole Flange Mount, 960-1220 MHz and 1030-1090 MHz/50 Ohms, Airspeed 400 Knots & a White Finish. CI 105-3..

DME TRANSPONDER ANTENNA/BNC Female Connector, L-Band, 960-1220 MHz and 1030-1090 MHz, 50 Ohms, Airspeed 400 Knots, cork gasket included, 2 Hole Mount & a White Finish. CI 105..

DME TRANSPONDER ANTENNA/BNC, L-Band, 960-1220 MHz and 1030-1090 MHz, 50 Ohms, 2 Stud Mount, With Remote, Airspeed 400 Knots & a White Finish. CI 105-9CI 105-9 DME Transponder Antenna | 960-1220MHz, 1025-1150MHzComant's CI 105-9 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell. Used in single and twin engine piston aircraft.Encased in a glass reinforced polyester molded shellStandard two stud mounting configuration1 inch in length studs6" extension coax cableBNC connector960-1220 MHz frequenciesProduct CodesMfr Part No:CI 105-9ECCN:7A994PROAPP:PT2316NMSCHEDULE B CODE:8529.10.4000TSO:C66b,C74cWeight: 0.3 lb Dimensions (height): 3.23 in Finish: polyurethane enamel Connector: cable terminal - BNC (female) Frequency:  960 - 1220 MHz 1025 - 1150 MHz VSWR: 1.5:1 @ 960-1220 MHz, maximum 1.3:1 @ 1025-1150 MHz, maximum Polarization: Vertical Radiation pattern: equivalent to a 1/4 wave stub  Impedance: 50Ω Resistance DC: open circuit Power RF: 2.5 KW Peak Temperature: -55° to 85° C Altitude:  70,000 ft Airspeed: 400 Knots TAS at 25,000 ft Gasket: B10505..

DME TRANSPONDER ANTENNA/C Connector, L-Band, 960-1220 MHz and 1030-1090 MHz, 50 Ohms, 4 Hole Mount, Airspeed 400 Knots & a White Finish. CI 105-7CI 105-7 DME Transponder AntennaComant's CI 105-7 DME/Transponder antenna is identical to the CI 105 in operating characteristics, except it will provide the popular 4-hole external mounting typical on some turbo-prop and jet aircraft.  This antenna (CI-105-7) includes a C connector, covers 960 - 1220 MHz and 1030 - 1090 MHz frequencies, and is rated to 400 Knots TAS at 25,000 ft.Encased in a glass reinforced polyester molded shellFour hole flange mountingIncludes a C connectorProduct CodesMfr Part No:CI 105-7ECCN:7A994PROAPP:PT2316NMSCHEDULE B CODE:8529.10.4000TSO:C66b,C74cWeight: 0.4 lb Dimensions (height): 3.31 in Finish: polyurethane enamel Material: molded radome Connector: C  Frequency:  960 - 1220 MHz 1030 - 1090 MHz VSWR: 1.5:1 @ 960 - 1220 MHz, maximum 1.3:1 @ 1025 - 1150 MHz, maximum Polarization: Vertical Radiation pattern: equivalent to a 1/4 wave stub  Impedance: 50Ω Resistance DC: open circuit Power RF: 2.5 KW Peak Temperature: -54° to 55° C Altitude:  70,000 ft Airspeed: 400 Knots TAS at 25,000 ft Gasket: B10505..

DME TRANSPONDER ANTENNA/L-Band, 2 hole mount & a White Finish. CI 105-11CI 105-11 DME Transponder AntennaThe CI 105 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has a standard two stud mounting configuration. This model (CI-105-11) is an L-Band antenna.Encased in a glass reinforced polyester molded shellStandard two stud mounting configurationIncludes a BNC connectorProduct CodesMfr Part No:CI 105-11ECCN:7A994SCHEDULE B CODE:8529.10.4000TSO:C66b, C74cWeight: 0.24 lb Dimensions (height): 3.23 in Finish: polyurethane enamel Connector: BNC (female) Frequency:  960 - 1220 MHz VSWR: 1.5:1 @ 960-1220 MHz, maximum 1.3:1 @ 1025-1150 MHz, maximum Polarization: Vertical Radiation pattern: equivalent to a 1/4 wave stub  Impedance: 50Ω Resistance DC: open circuit Power RF: 2.5 KW Peak Temperature: -54° to 55° C Altitude:  70,000 ft Airspeed: 400 Knots TAS at 25,000 ft Gasket: B10505..

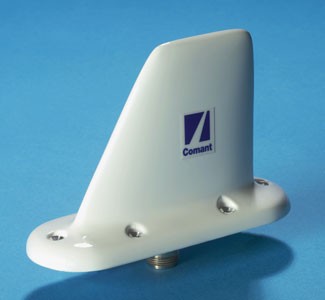

DME TRANSPONDER ANTENNA/TNC Connector, 6 Hole Mount, & a White Finish. CI 105-22CI 105-22 DME Transponder AntennaThe CI 105-20 series wideband vertically polarized/omnidirectional antenna is designed for high performance aircraft over the UHF/L band of frequencies from 806 to 960 MHz. The low profile blade-type construction features 6-hole mounting, low drag, low weight, wide band/high efficiency electrical performance, DC grounding for lightning protection and Skydrol/rain erosion resistance. This antenna (CI-105-22) includes a TNC connector, covers 806 to 960 MHz and 960 to 1220 MHz frequencies, and is rated to 600 Knots TAS at 25,000 ft.Encased in a glass reinforced polyester molded shellSix hole flange mountingIncludes a TNC connectorProduct CodesMfr Part No:CI 105-22ECCN:7A994SCHEDULE B CODE:8529.10.4000TSO:C66b,C74cWeight: 0.4 lb Dimensions height: 3.55 in Finish:  polyurethane enamel Material: molded radome Connector: TNC Frequency: 806 to 960 MHz 960 to 1220 MHz VSWR: 1.5:1 894 to 896 MHz, transmit 1.5:1 849 to 851 MHz, receive Polarization: Vertical Radiation pattern: equivalent to a 1/4 wave stub  Impedance: 50Ω Resistance DC: short circuit Power RF: 100 watts, maximum Temperature: -55° to 85° C Altitude:  70,000 ft Airspeed: 600 Knots TAS at 25,000 ft Gasket: 70445 'O' Ring..

DME TRANSPONDER BLADE ANTENNA/C Connector, 4 Hole Mount, Closed Circuit, TSO'd & a White Finish. CI-110-41-30DME Transponder Blade Antenna | 960-1220 MHz, Short Circuit ResistanceThe CI 110-40-30 is an all metal, low profile antenna designed for business jet and commercial high speed aircraft. With a popular four hole mount and connector with open path to ground, this antenna is ideally suited for those aircraft equipped with standard transponders and Mode S transponders.Short circuit resistanceTough one piece construction175 lb side load capabilityCompletely sealed constructionVertical polarizationOmnidirectional radiation patternFemale C connector960-1220 MHz & 1030-1090 MHz frequenciesProduct CodesMfr Part No:CI-110-41-30ECCN:7A994PROAPP:PT2316NMSCHEDULE B CODE:8529.10.4000TSO:C66c, C74c, C112 Incomplete SystemWeight: 0.25 lb, maximum Height: 2.20 in, maximum Frequency: 960 to 1220 MHz 1030 to 1090 MHz VSWR: 960 to 1220 MHz: 1.7:1 1000 to 1100 MHz: 1.4:1 Polarization: Vertical Radiation Pattern: Equivalent of 1/4 Stub Impedance RF: 50Ω Resistance DC: Open Circuit Power RF: 3 KW Peak Average 100 watts Material: Die Cast A380 aluminum alloy Finish: White polyurethane enamel (Standard) Connector:  C Gasket: 70445 "O" Ring Temperature: -55°C to 85°C Altitude: 70,000 ft Air Speed: 600 Knots TAS at 25,000 ft RTCA Environmental: DO-160D Environmental Category: [F2X]ACB(S(L)U(F,F1)T(C,C1,R)] XRFDXSXXXXX[XX]X[XXXX]XAX FAA TSO: C66c, C74c, C112 RTCA MOPS: DO-144, DO-189, DO-181..

DME TRANSPONDER BLADE ANTENNA/C Connector, 4 Hole Mount, Open Circuit, TSO'd, & a White Finish. CI 110-40-30DME Transponder Blade Antenna | 960-1220 MHz, Open Circuit ResistanceThe CI 110-40-30 is an all metal, low profile antenna designed for business jet and commercial high speed aircraft. With a popular four hole mount and connector with open path to ground, this antenna is ideally suited for those aircraft equipped with standard transponders and Mode S transponders.Tough one piece construction175 lb side load capabilityCompletely sealed constructionVertical polarizationOmnidirectional radiation patternFemale C connector960-1220 MHz & 1030-1090 MHz frequenciesProduct CodesMfr Part No:CI 110-40-30ECCN:7A994SCHEDULE B CODE:8529.10.4000TSO:C66c,C74c,C112Weight: 0.25 lb, maximum Height: 2.20 in, maximum Frequency: 960 to 1220 MHz 1030 to 1090 MHz VSWR: 960 to 1220 MHz: 1.7:1 1000 to 1100 MHz: 1.4:1 Polarization: Vertical Radiation Pattern: Equivalent of 1/4 Stub Impedance RF: 50Ω Resistance DC: Open Circuit Power RF: 3 KW Peak Average 100 watts Material: Die Cast A380 aluminum alloy Finish: White polyurethane enamel (Standard) Connector:  C Gasket: 70445 "O" Ring Temperature: -55°C to 85°C Altitude: 70,000 ft Air Speed: 600 Knots TAS at 25,000 ft RTCA Environmental: DO-160D Environmental Category: [F2X]ACB(S(L)U(F,F1)T(C,C1,R)] XRFDXSXXXXX[XX]X[XXXX]XAX FAA TSO: C66c, C74c, C112 RTCA MOPS: DO-144, DO-189, DO-181..

DME TRANSPONDER BLADE ANTENNA/C Female Connector, Closed Circuit, 6 Hole Mount, & a White Finish. CI 110-61-30DME TRANSPONDER BLADE ANTENNA/C ConnectorAll metal, low profile antenna is designed for businessjet and commercial high speed aircraft. With a popularsix hole mount and connector path to ground, thisantenna is ideally suited for those aircraft equippedwith Mode S transponders. In addition to standardDME, transponder, and Mode S transponder, this antennacan be used for TAS/IHAS installations. Tough, onepiece construction provides 175 lbs. side load capability,guarding against breakage from ground equipment.Moisture failure is prevented with completely sealedconstruction.Product CodesMfr Part No:CI 110-61-30ECCN:7A994SCHEDULE B CODE:8529.10.4000TSO:C66c,C74c,C112..

DME TRANSPONDER BLADE ANTENNA/C Female Connector, Open Circuit, 6 Hole Mount and a White Finish. CI-110-60-30CI 110-60-30 DME Transponder Blade Antenna | 960-1220 MHz, C ConnectorAll metal, low profile antenna is designed for business jet and commercial high speed aircraft. With a popular six hole mount and connector with open path to ground, this antenna is ideally suited for those aircraft equipped with standard transponders and Mode S transponders. Tough, one-piece construction provides 175 lbs. side load capability, guarding against breakage from ground equipment. Moisture failure is prevented with completely sealed construction.960-1220 MHz frequenciesVertical polarizationOmnidirectional radiation patternAll metal one-piece construction6-hole mountingCompletely sealedProduct CodesMfr Part No:CI-110-60-30ECCN:7A994PROAPP:PT2316NMSCHEDULE B CODE:8529.10.4000TSO:C66c,C74c,C112Weight: 0.25 lb Height: 2.25 in Frequency: 960-1220 MHz VSWR: 1.5:1 maximum Polarization: Vertical Radiation pattern: Omnidirectional Impedance (RF): 50 ohms Power (RF): 3.0 KW Peak / 100 watt average Temperature:  -55ºC to +85ºC Altitude: 70,000 ft Certifications: FAA TSO C66c, C74c, C112 (Class 1A), DO-160D..

DME WITH TNC CONNECTOR 071-00221-0020KA 61 L-Band Antenna | TNC connector, WhiteThe KA 61 L-Band antenna with BNC connector operates on a frequency range of 960 MHz to 1,220 MHz and is ideal for transponder, DME, and ADS-B use. This antenna is a direct replacement for the KA 60 antenna.L-Band AntennaDirect Replacement for the KA-60 antenna TNC configurationLightning- qualified for improved reliabilitySupports Honeywell transponders, DME & IHAS installationsProduct CodesMfr Part No:071-00221-0020ETSO:2C66b, C74c (2A), C112 (04), C118, C147 (A)SCHEDULE B CODE:8529.10.4000STC:STCTSO:C66c, C74c (2A), C112 (04), C118, C147 (A)..

DME/TRANSPONDER ANTENNA, L-BAND, BLADE, 4 HOLE MOUNT, BNC FEMALE CONNECTOR, & a WHITE FINISH. NI70-2DM NI70-2 DME/ATC Transponder Antenna | 950MHz–1220MHz, 4-Hole Mount, BNC Female ConnectorThe NI70 L-Band transponder antenna provides sufficient bandwidth for DME and ATC frequencies on civil aviation aircraft. It will provide omni-directional, vertically polarized coverage when installed on the top or the bottom of an aircraft. To reduce drag, this antenna features an aerodynamic designed structure that consists of a single metal element. This DM NI70 transponder antenna (Alternate Part# DM NI70-2) has a BNC female connector and a four-hole mounting pattern.950 MHz – 1,220 MHz frequency rangeOmni-directional, vertically polarize polarized patternMounts to the top or bottom of aircraftAerodynamic designProduct CodesMfr Part No:NI70-2ECCN:7A994PROAPP:PT1084NESCHEDULE B CODE:8526.10.6000TSO:C66a,C74b,C112Weight: 0.25 lb Finish: White Connector: Type C female (N170, N170-3) Type BNC female (N170-2) Drag @ sea level: 0.5 lb Frequency Range: 960 MHz – 1,220 MHz VSWR: < 1.7:1, (960 MHz – 1,220 MHz) < 1.5:1, (1,000 MHz – 1,100 MHz) Gain: equivalent to a λ/4 stub Impedance: 50Ω Polarization: vertical Radiation Pattern: omnidirectional DC Resistance: open circuited Power handling: 2 kW peak Approvals: TSO C66a: ENV. CAT. JAJXXXXx TSO C74b: ENV. CAT. JAJXXXX CAT. II..

DME/TRANSPONDER ANTENNA, L-BAND, BLADE, 4 HOLE MOUNT, C FEMALE CONNECTOR, & a WHITE FINISH. DM NI70-1DM NI70-1 DME/ATC Transponder Antenna | 950MHz–1220MHz, 4-Hole Mount, Type C Female ConnectorThe NI70 L-Band transponder antenna provides sufficient bandwidth for DME and ATC frequencies on civil aviation aircraft. It will provide omni-directional, vertically polarized coverage when installed on the top or the bottom of an aircraft. To reduce drag, this antenna features an aerodynamic designed structure that consists of a single metal element. This DM NI70 transponder antenna (Alternate Part# DM NI70-1) has a type C female connector and a four-mounting pattern.950 MHz – 1,220 MHz frequency rangeOmni-directional, vertically polarize polarized patternMounts to the top or bottom of aircraftAerodynamic designProduct CodesMfr Part No:DM NI70-1ECCN:7A994NSN:5985-01-175-5751PROAPP:PT1084NESCHEDULE B CODE:8526.10.6000TSO:C66a,C74b,C112Weight: 0.25 lb Finish: White Connector: Type C female (N170, N170-3) Type BNC female (N170-2) Drag @ sea level: 0.5 lb Frequency Range: 960 MHz – 1,220 MHz VSWR: < 1.7:1, (960 MHz – 1,220 MHz) < 1.5:1, (1,000 MHz – 1,100 MHz) Gain: equivalent to a λ/4 stub Impedance: 50Ω Polarization: vertical Radiation Pattern: omnidirectional DC Resistance: open circuited Power handling: 2 kW peak Approvals: TSO C66a: ENV. CAT. JAJXXXXx TSO C74b: ENV. CAT. JAJXXXX CAT. II..

DME/TRANSPONDER ANTENNA, L-BAND, BLADE, 4 HOLE MOUNT, C MALE CONNECTOR & a GLOSSY WHITE FINISH. DM NI50-2-2DM NI50 DME/ATC L-Band Antenna | 960MHz – 1,220MHz, Type C Male Connector, Gloss WhiteThe DM NI50 reduces maintenance costs due to its low profile, all-metal blade that provides unequalled mechanical strength and reliability. The NI50 antennas are engineered for use on business, commercial, and military aircraft. NI50 DME antennas can be used will all standard L-Band equipment operating on the 960 MHz to 1,220 MHz frequency band. These antennas are interchangeable with with virtually all L-band blade, flush mountable antennas currently in service on commercial and military aircraft. This DM NI50 DME/ATC antenna (Alternate Part# DM NI50-2) has a gloss white finish, type C male connector, and a four-hole mounting pattern.Extremely high side load strength guards against breakage by ground handling gearCompletely sealed construction prevents moisture intrusionLightning protection circuits safeguard electronic equipmentLow-profile, all- metal blade antennaDirect current ground designInterchangeable with most L-band blade and flush mount antennasMultiple color and connector configurations availableProduct CodesMfr Part No:DM NI50-2-2ECCN:7A994NSN:5985-01-015-0737PROAPP:PT1084NESCHEDULE B CODE:8526.10.6000TSO:C66a, C74, C112Weight: 4 oz Height: 2.2 in Frequency Range: 960 MHz – 1,220 MHz VSWR: < 1.7:1 (960 MHz – 1,220 MHz) < 1.5:1 (1,000 MHz – 1,100 MHz) Gain: 0 dB, average @ horizon Impedance: RF: 50Ω DC: short circuit Polarization: vertical Radiation Pattern: hemispherical Power Handling: 3kW (peak), 100 watts (average) ENVIRONMENTAL: Aerodynamic Drag (@ sea level): 2 oz (mach 0.5) 4.5 oz (mach 0.8) Side Load: TSO C34c ARINC: 532 E (ATC transponder) 521 D (DME) FAA: TSO-C74 (ATC transponder) TSO-C66a (DME)..

DME/TRANSPONDER ANTENNA, L-BAND, BLADE, 6 HOLE MOUNT, C FEMALE CONNECTOR & a WHITE FINISH. DM NI70-3DM NI70-3 DME/ATC Transponder Antenna | 950MHz–1220MHz, 6-Hole Mount, Type C Female ConnectorThe NI70 L-Band transponder antenna provides sufficient bandwidth for DME and ATC frequencies on civil aviation aircraft. It will provide omni-directional, vertically polarized coverage when installed on the top or the bottom of an aircraft. To reduce drag, this antenna features an aerodynamic designed structure that consists of a single metal element. This DM NI70 transponder antenna (Alternate Part# DM NI70-3) has a type C female connector and a six-hole mounting pattern.950 MHz – 1,220 MHz frequency rangeOmni-directional, vertically polarize polarized patternMounts to the top or bottom of aircraftAerodynamic designProduct CodesMfr Part No:DM NI70-3ECCN:7A994SCHEDULE B CODE:8526.10.6000TSO:C66a,C74b,C112Weight: 0.25 lb Finish: White Connector: Type C female (N170, N170-3) Type BNC female (N170-2) Drag @ sea level: 0.5 lb Frequency Range: 960 MHz – 1,220 MHz VSWR: < 1.7:1, (960 MHz – 1,220 MHz) < 1.5:1, (1,000 MHz – 1,100 MHz) Gain: equivalent to a λ/4 stub Impedance: 50Ω Polarization: vertical Radiation Pattern: omnidirectional DC Resistance: open circuited Power handling: 2 kW peak Approvals: TSO C66a: ENV. CAT. JAJXXXXx TSO C74b: ENV. CAT. JAJXXXX CAT. II..
