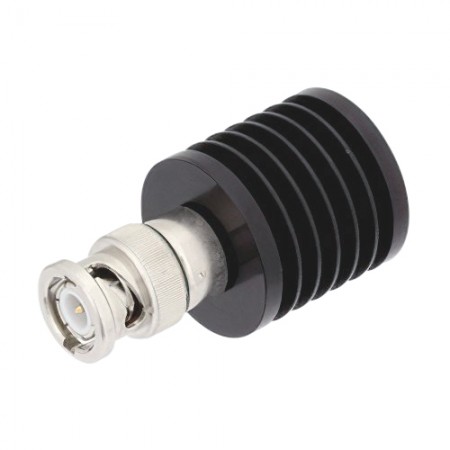

The PE6034 RF termination is designed to operating from DC to 4 GHz and can handle up to 10 watts of power RF power. It features a BNC male connector and offers a maximum 1.25:1 VSWR. The black anodized heatsink will provide adequate heat dispensation within its full operating frequency.
- DC to 4 GHz frequency range
- 1.25:1 VSWR, max.
- 10 Watt maximum power (CW)
- BNC male coaxial interface
Product Codes | |
|---|---|
| Mfr Part No: | PE6034 |
Weight: 0.0795 lb (36.06 g)Dimensions: 1.84 x 1 in (48.74 x 25.4 mm)Frequency Range: DC ~ 4 GHzImpedance: 50ΩVSWR: 1.25:1Input Power: 10W CW (derated linearly to 2W @ 125°C)Peak Input Power: 500W, 5µs pulse duty cycleTemperature: -65°C to 125°F, operatingConnector Contact Material: gold-plated, Beryllium CopperInsulation Material: PTFECoupling Nut Material: nickel-plated, brassHousing Material: Black anodized aluminum heatsink
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: PE6034
