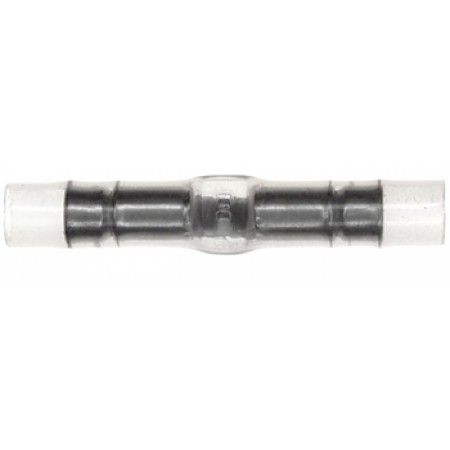

BUTT SPLICE/Female, insulated, copper material, nylon insulation, 300 VAC. PIDG series. For use with 24-20 gauge wire. 323975 pack of 100
BUTT SPLICE/Female, insulated, copper material, nylon insulation, 300 VAC. PIDG series. For use with 24-20 gauge wire. 323975 pack of 100PIDG Butt Splice | 24 - 20 AWG Wire Size
PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.
This PIDG butt splice (Alternate Part# 323975):
- Fits 24 - 20 AWG wire sizes
- Translucent (clear) nylon insulation material
- Tin-plated, copper conductor
Features:
- Vibration resistant design
- Allows wires to bend freely in any direction
- PIDG terminal meet or exceed SAE AS7928 Type II, Class 1 & 2 requirements
Product Codes | |
|---|---|
| Mfr Part No: | 323975 |
| MIL SPEC: | M7928/5-2 |
| ECCN: | EAR99 |
| MIL SPEC: | M7928/5-2 |
| SCHEDULE B CODE: | 8536.90.4000 |
Splice Type: butt spliceWeight: 0.735 g (per piece)AWG Size: 24 AWG – 20 AWGColor: translucent (clear)Barrel Type: closedInsulated: yesWire/Cable Type: regular wireCurrent Capacity: 300V, maxPlating Material: tin-plated copperOperating Temperature: 105°C (221°F)
- Stock: Warehouse
- Manufacturer Part #: 323975
$0.00
