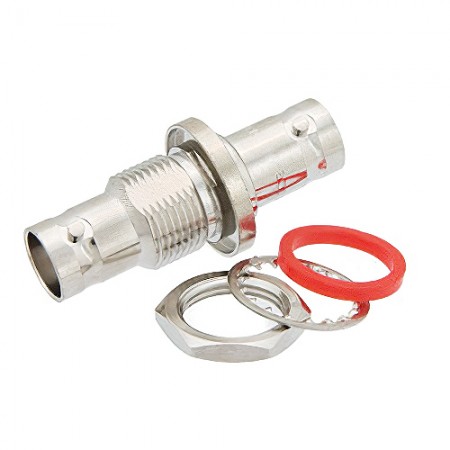

PE9093 is a hermetically sealed bulkhead connector with BNC female connectors at both ends. The connector operates up to a maximum frequency of 4 GHz and offers VSWR of 1.5:1. This TNC connector has a brass body with nickel plating and uses a gold-plated brass contact.
- BNC to BNC female connector
- MIL-STD-348A
- 50Ω impedance
- 6 GHz Max. operating frequency
- VSWR 1.5:1
- Gold-plated brass contact
- Applications include general purpose test, vacuum test environment, and rack-mounted equipment
AI disclosure: this description was generated with AI assistance from this product's own listing data.
Product Codes | |
|---|---|
| Mfr Part No: | PE9093 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8536.69.4010 |
Weight: 0.05 lb (22.68 g)Dimensions: 1.555 x 0.689 x 0.689 in (39.5 x 17.5 x 17.5 mm)Connectors: BNC female (both connectors)Impedance: 50ΩVSWR: 1.5:1Frequency Range: 4 GHz, maximumOperating Voltage: 500 VrmsHermetically SealedBody Geometry: StraightMounting: BulkheadApplication: General purpose test Vacuum Test Environment Rack-mounted equipment
