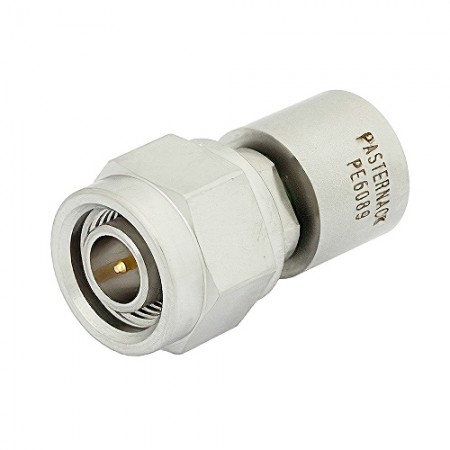

The PE6089 RF termination features a 2-watt dummy load up to 18 GHz and a TNC male connection. This termination has a maximum VSWR of 1.25:1 and is ideal for use in wireless, SatCom, radar system, test and measurement, and commercial & military communication applications.
- DC to 18 GHz frequency range
- 1.25:1 maximum VSWR
- 2-watt maximum power (CW)
- TNC male coaxial interface
AI disclosure: this description was generated with AI assistance from this product's own listing data.
Product Codes | |
|---|---|
| Mfr Part No: | PE6089 |
Weight: 0.082 lb (37.19 g)Dimensions: 1.25 x 0.625 in (31.72 x 15.88 mm)Frequency Range: DC – 18 GHzImpedance: 50ΩVSWR: 1.25:1Input Power (CW): 2 watt (derated linearly to 1W @ 125°C)Input Power (peak): 250 watt (5 µs pulse, 0.05% duty cycle)Connector Type: TNC male (mode-free up to 18 GHz)Connector Specifications: MIL-C-39012Hex Size: 5/8Contact Material: gold-plated beryllium copperInsulation Material: teflonBody Material: passivated stainless steelCoupling Nut Material: passivated stainless steelHousing Material: passivated stainless steelOperating Temperature: -65°C to 165°CCertification: RoHS & REACH compliant
- Stock: Out of Stock
- Manufacturer Part #: PE6089
