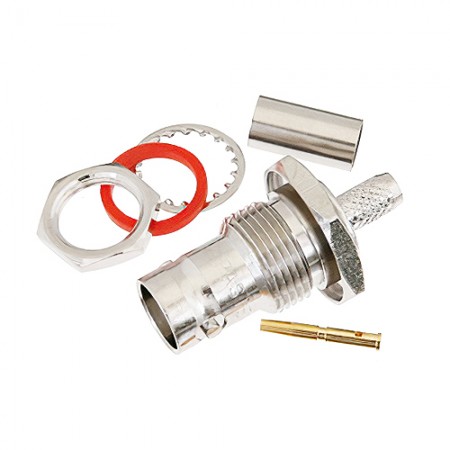

The PE4209 BNC female bulkhead mount connector features a crimp/solder attachment for attaching RG55, RG142, RG223, RG400 and RG141 coax compliant. This connector offers offer a maximum VSWR 1.5:1 up to 4 GHz and is MIL-STD-348A compliant.
- Straight body geometry
- VSWR 1.5:1 up to 4 GHz
- Gold-plated brass contact
- 30 µ-in minimum contact plating
- RG55, RG142, RG223, RG400, RG141 interface type
AI disclosure: this description was generated with AI assistance from this product's own listing data.
Product Codes | |
|---|---|
| Mfr Part No: | PE4209 |
Weight: 0.043 lb (19.5 g)Dimensions: 1.43 x 0.689 in (36.32 x 17.50 mm)Frequency Range: DC – 4 GHzVSWR: 1.5:1Operating Voltage: 500 Vrms ACContact Material: gold-plated brassInsulation Material: PTFEBody Material: nickel-plated brassCrimp Sleeve Material: Nickel-plated brassWasher Material: Nickel-plated steelOperating Temperature: -65°C to 165°C
- Stock: Warehouse
- Manufacturer Part #: PE4209
