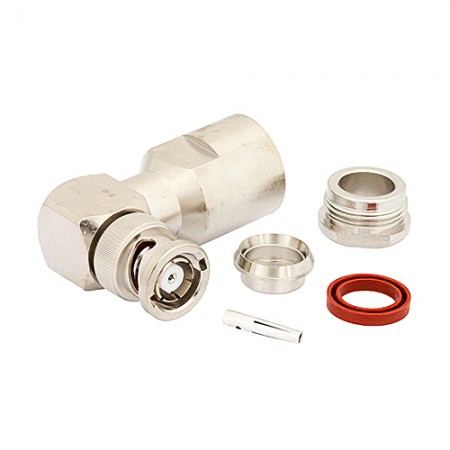

The PE4727 BNC male right angle connector features clamp/solder attachment method for attaching to RG213, RG214, RG8, RG9, RG225, RG393, and RG215 coax cables. This connector a 50Ω impedance, silver0-plated contacts, reverse polarity and is MIL-STD-348 compatible.
- BNC male reverse polarity connector
- Right angle body geometry
- 50Ω impedance
- Silver-plated contact
- RG213, RG214, RG8, RG9, RG225, RG393, and RG215 cable compatibility
AI disclosure: this description was generated with AI assistance from this product's own listing data.
Product Codes | |
|---|---|
| Mfr Part No: | PE4727 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8536.69.4010 |
Weight: 0.151 lb (68.49 g)Dimensions: 1.84 x 0.75 x 1.65 in (46.74 x 19.05 x 29.59 mm)Connector Type: BNC male (reverse polarity)Impedance: 50ΩBody Geometry: right angleAttachment Method: clamp/solder methodContact Material: Silver (QQ-S-365)Insulation Material: PTFEBody Material: Nickel-plated (QQ-N-290)Coupling Material: nickel-plated brass (QQ-N-290)Operating Temperature: -65°C to 165°CCable Compatibility: RG213, RG214, RG8, RG9, RG225, RG393, RG215 interface types
- Stock: Out of Stock
- Manufacturer Part #: PE4727
