Out of Stock - On Backorder
DAVID CLARK HEADSET/ENC/HELICOPTER/M-7A AMPLIFIED ELECTRET MIC/5' COIL CORD/U-174/U PLUG/UNIVERSAL FLEX BOOM/BATTERY PWR MODULE 40600G-03

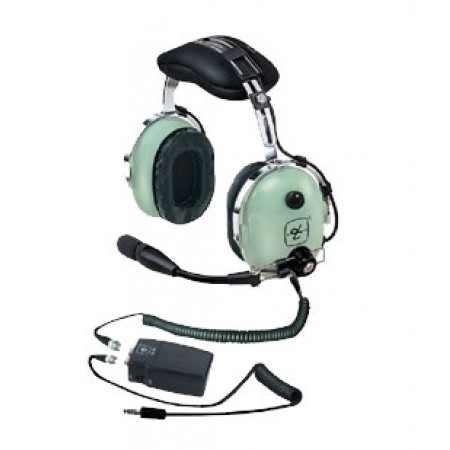

DAVID CLARK HEADSET/ENC/HELICOPTER/M-7A AMPLIFIED ELECTRET MIC/5' COIL CORD/U-174/U PLUG/UNIVERSAL FLEX BOOM/BATTERY PWR MODULE 40600G-03Model H10-13HXL Aviation Headset | U-174/U plugs, Helicopter
The Model H10-13HXL aviation headset features electronic noice-cancellation (ENC) and a M-7A amplified electret microphone for offering pilots with crisp & clear communication. From a single nine-volt battery, this H10-13HXL operates up to 25 hours and has a pilot selectable auto-off function preserving battery life. Large, super-soft gel ear seal combined with a double-foam head pad offer comfort on long flights, while a flex/wire boom provides precise microphone place.
- Battery power module provides up to 25 hour of operation from one 9-volt battery
- Expanded, super-soft, double-foam head pad offer comfort during long flights
- Larger and lighter undercut comfort gel ear seals
- Patented flex/wire boom provides precise microphone placement
- Pilot selectable auto-shut off
- M-7A noise-cancelling electret microphone for crisp & clear voice transmission
- Five-foot extended coiled cord
- Cord assembly connects to battery module then to panel intercom connector
- FAA TSO-C57a, TSO-C58a approved
Product Codes | |
|---|---|
| Mfr Part No: | 40600G-03 |
| ECCN: | 5A991 |
| SCHEDULE B CODE: | 8518302000 |
| TSO: | TSO C57b, C58a |
Weight: 18 ozEar Coupling: around-the-earHardware Material: steelEar Dome Material: ABSConnectors: U-174/U, earphone plug U-174/U, mic plugConnection Cable: ~5 ft coil cord (1.5 m)Earphone Sensitivity: 90 dB SPL on flat plate coupler, re 1mW input @1KHzEarphone Type: Dynamic (ENC)Ear Impedance: 150Ω, nominal (stereo) 300Ω, nominal (mono)Ear Frequency Response: 100 Hz — 5,500 HzMicrophone Principle: M-7A amplified electretMicrophone Impedance: 50Ω ±20%Microphone Sensitivity: 400mV ±6dB into 150Ω load @ 1kHz for 114 dB SPL inputMicrophone Frequency Response: 300 Hz – 3,500 Hz per RTCA DO 214Microphone DC Supply Voltage: 8V - 16V (not polarity sensitive)Source Resistance: 470Ω
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: 40600G-03
$1,073.99
