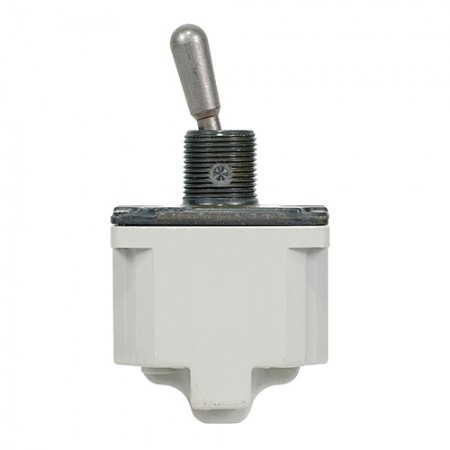

ONE POLE TOGGLE - ON/NONE/ON 8500K4
ONE POLE TOGGLE - ON/NONE/ON 8500K48500 Series Toggle Switch | SPDT, ON-ON, Environmentally Sealed
The 8500K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates.
Version 8500K4 is a single-pole, double-throw toggle switch. Positions: ON-ON
- Threaded panel mount
- Thermoset molding materials meet flame retardant requirements
- Molded-in terminal inserts and terminal numbers
- Environmentally sealed per MIL-S-3950
- MS approved and QPL'd per MIL-S-3950
- Life: 20,000 operations at rated load 40,000 operations mechanical life
Product Codes | |
|---|---|
| Mfr Part No: | 8500K4 |
| MIL SPEC: | MS24523-23 |
| ECCN: | EAR99 |
| MIL SPEC: | MS24523-23 |
| SCHEDULE B CODE: | 8536.50.9040 |
Bushing:Â 15/32" - 32 threadTemperature Range: -85F to +160F (-65C to +71C)Contact current max: 20AContact Voltage AC: 115V nominalContact Voltage DC: 28VContact configuration: Single-pole, double-throw (SPDT)Switch operation: ON-ONMS part number: MS24523-23
- Stock: Warehouse
- Manufacturer Part #: 8500K4
$0.00
