RELAY/MS24178-D1 MS24178

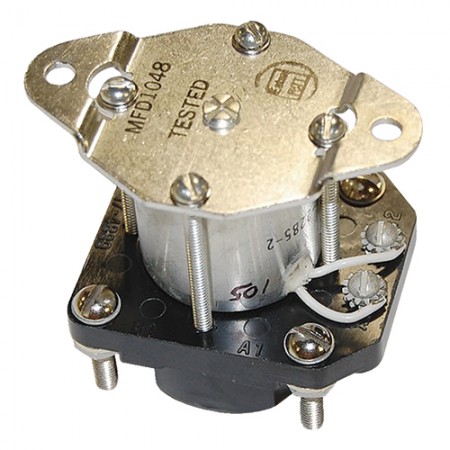

RELAY/MS24178-D1 MS24178MS24178-D1 Relay | 55A
Continuous duty, gasketed, powered relay with non-latching solenoid design. Operates at 28 VDC, 55 amp current.
Product Codes | |
|---|---|
| Mfr Part No: | MS24178 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8536.41.0020 |
Weight: 340.91 g (0.75 lb)Dimensions: 2.922 x 2.844 x 2.031 in (74.22 x 72.24 x 51.59 mm) 2.385 in (60.58 mm), mountingCoil: 0,138-32 UNC-2BAmpere Ratings: 55 ampAltitude: 50,000 ftShock: 25 g’sAcceleration: 10 g’sVibration Limits: 5 to 10 Hz: 0.8 in DA 19 to 55 Hz: 0.6 in DA 55 to 2,000 Hz: 2 g’sTemperature Range: -55°C to 71°CInsulation Resistance: 100 MΩ, minimum initally 50 MΩ, minimum after testsDielectric: 1,250 VAC, minimum initially 1,000 VAC, minimum after testsElectrical Operations: 50,000 cyclesMechanical Operations: 100,000 cycles at 25% rated resistive loadMinimum Current: 10% of rated DC resistive loadIntermittent Duty Ratings: % of rated resistiveTime On in Minutes: Cooling time is required between successive over load applications
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: MS24178
$0.00
