M27500 specification provides for a wide range of construction options allowing for optimal performance in virtually any environment. Any number of design components are available for users to choose from — including conductor size, number of conductors, insulation type, shield material (or no shield), circuit identification, and single or double walled jacket.
SAE AS50861/1 has excellent resistance to moisture, fuels, hydraulic fuels, and other common industrial solvents. This wiring maybe used in applications where if maybe exposed to chemicals, impacts, abrasions, or other abuse. This Mil-Spec wire has a soft annealed, stranded tinned copper connector and a thermoplastic polyvinyl chloride insulation making it ideal for use in high-temperature environments — up to 105°C and 600 volts.

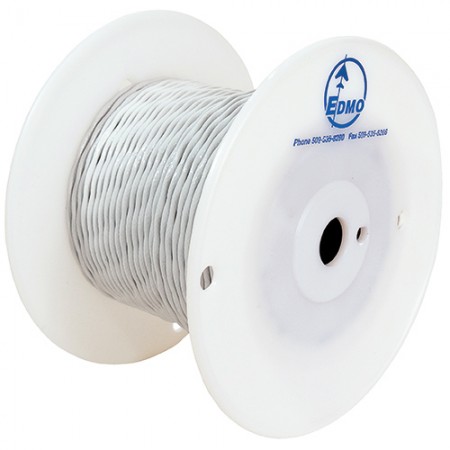

This M27500-22A3N06 polyvinyl chloride insulated wire (Alternate Part# 22A3N06) meets SAE AS50861/1 specifications and has three, 22 AWG tin-plated copper conductors, and a nylon jacketing.
- 600 volt rating
- 105°C temperature rating
- Excellent thermal stability
- High reliability
- High break strength and flex life
- High abrasion resistance
Product Codes | |
|---|---|
| Mfr Part No: | M27500-22A3N06 |
| MIL SPEC: | M27500-22A3N06 |
| MIL SPEC: | M27500-22A3N06 |
Gauge: 22 AWGSAE specification: SAE AS50861/1Conductor Stranding: 19/34Jacket Material: NylonInsulation Material: Polyvinyl chloride insulatedTemperature Rating: 105°CVoltage Raging: 600 V
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: M27500-22A3N06
