M27500 specification provides for a wide range of construction options allowing for optimal performance in virtually any environment. Any number of design components are available for users to choose from — including conductor size, number of conductors, insulation type, shield material (or no shield), circuit identification, and single or double walled jacket.
SAE AS22759/8 wiring are shielded and jacketed cables with PTFE tape or extruded PFA jackets that surround MIL-W-22759/7 or/8 wires. These component wires are insulated with light-weight mineral filled PTFE, and have silver-plated or nickel-plated copper conductors.

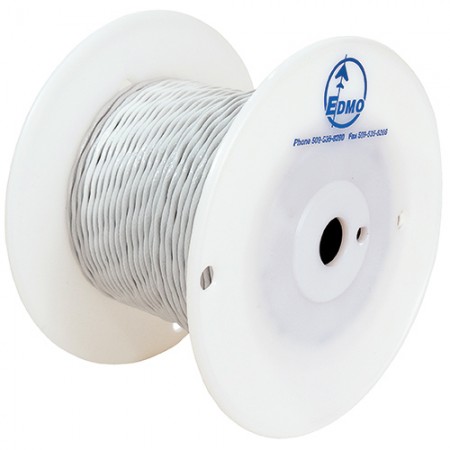

This M27500-22TA2N06 PTFE taped wrapped wire (Alternate Part# 22TA2N06) has two, 22 AWG, nickel-coated copper conductors and taped PTFE jacket material. Meets Mil-Spec 22759/8 and rated for 260°C and 600 volts.
- Excellent thermal stability
- High reliability
- High break strength and flex life
- High abrasion resistance
- 260°C maximum temperature rating
- 600 volt rating
Product Codes | |
|---|---|
| Mfr Part No: | M27500-22TA2N06 |
| MIL SPEC: | M27500-22TA2N06 |
| MIL SPEC: | M27500-22TA2N06 |
Approx. Weight: 25.7 lb/mftNumber of Conductors: 2Gauge: 22 AWGWire Stranding: 19/34Shield Diameter: 0.166 inJacket Diameter: 0.190 inShield Material: Nickel-coated copper, round, 85% coverageJacket Material: Taped PTFE, whiteTemperature: 260°C, maximumVoltage Rating: 600 VInner Conductor Specification: SAE AS22759/8
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: M27500-22TA2N06
