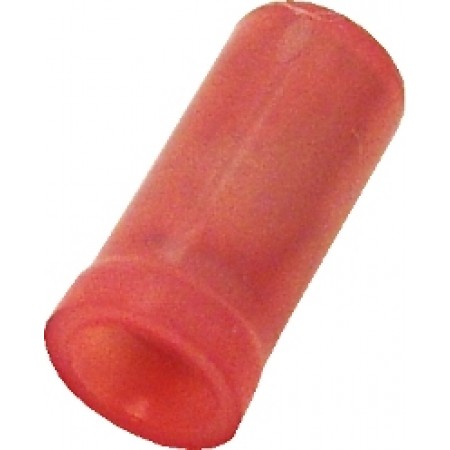

END SPLICE/Female, insulated, red, tin plating, copper material, 300 V. 328 series. For use with 22-18 gauge wire. 328307 pack of 100
END SPLICE/Female, insulated, red, tin plating, copper material, 300 V. 328 series. For use with 22-18 gauge wire. 328307 pack of 100Nylon End Splice Terminal | 22 – 18 AWG, Red
PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.
This end splice terminal (Alternate Part# 328307) has red insolation, and used for 22 – 18 AWG wire.
- Red nylon insulation material
- Tin-plated copper conductor
- Meets MS25274/2 class 1 and 2
Product Codes | |
|---|---|
| Mfr Part No: | 328307 |
| MIL SPEC: | MS25274-2 |
| ECCN: | EAR99 |
| MIL SPEC: | MS25274-2 |
| NSN: | 5999-00-280-3499 |
| SCHEDULE B CODE: | 8536.90.4000 |
Dimensions: 0.445 x 0.210 in (11.30 x 5.33 mm)Wire Gauge: 22 – 18 AWGColor: redOperating Rating: (221°F) 105°CContact Material: tin-plated copperInsulation: nylonMounting Style: cable mount / free-hangingTerminal Type: spliceTermination Method: crimpVoltage Rating: 300 VDC
- Stock: Warehouse
- Manufacturer Part #: 328307
$0.00
