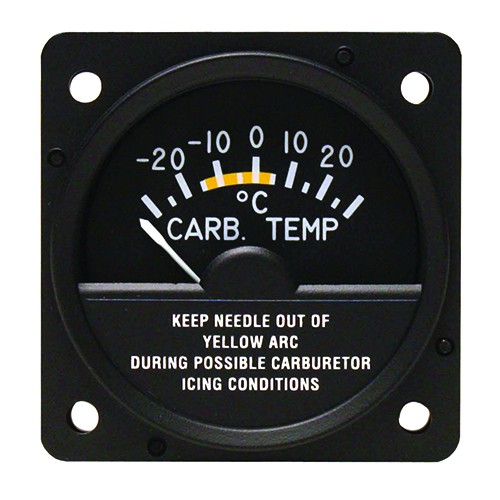

CARBURETOR AIR TEMPERATURE INDICATOR/14V MD11-3Carburetor Air Temperature Indicator | 14VThe MD11 Series Carburetor Air Temperature Indicator senses the internal carburetor temperature when used with the B-5 Probe that is FAA approved and STC'd. The probe is designed to be installed at the throttle valve, a critical icing point in fuel induction systems. The indicator has a reading within 1ºC for maximum safety and engine efficiency.Version (Alternate Part# MD11-3) is 14V.Detects potential carburetor icingReduces spark plug foulingExtends engine lifeHelps attain maximum fuel economy, range and powerProbe fits pre-tapped hole in Marvel-Schebler and Bendix carburetorsQuality connector includedSupplemental Type Certification FAA PMA approvedProduct CodesMfr Part No:MD11-3ECCN:EAR99PMA:PQ3738CESCHEDULE B CODE:9025.80.6060Weight: 0.3 lbs Dimensions: 2.4 x 2.5 x 2.7 inches Power Input: 14 VDC, 90 mA Operating Temperature: –40°C to +87°C (–40°F to +190°F) Indicating Temperature: –30°C to +30°C (–22°F to +86°F) Altitude: –1,000 to +40,000 feet Humidity: 0 to 90% at 25°C Vibration: .02 in. dbl. ampl., 1.5g @ 5 to 50 Hz Certification: FAA PMA approved Mounting: Front or rear panel Case Material: Flame-retardant polycarbonate Connector: 3-pin AN type male (MS3102A–14S–07P) Mating Connector: 3-pin AN type female (MS3106A14S–7S with MS3057–6A)..

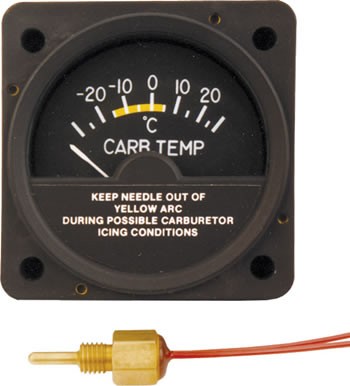

CARBURETOR AIR TEMPERATURE INDICATOR/28V. MD11-4..

CARBURETOR AIR TEMPERATURE KIT/14V, Includes: Indicator, Probe and Connector. MD11-3K..

CARBURETOR AIR TEMPERATURE KIT/28V, Includes: Indicator, Probe and Connector. MD11-4K..

MID-CONTINENT CARBURETOR TEMPERATURE INDICATORS MD11-4..
