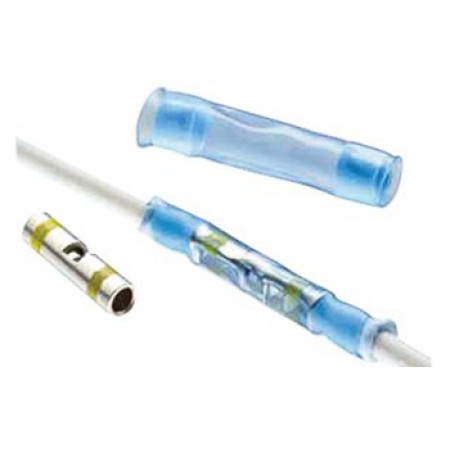

D-436 MiniSeal crimp splices are immersion-resistant, in-line nickel-plated sealed crimp splices that are designed for temperatures up to 150°C. These crimp splices are small, light, and environmentally resistant and meet SAE-AS81824 requirements.
This Mini-seal splice (Alternate Part# D-436-84) is yellow and has a 4.32 mm (min) inside diameter for use with 16-12 AWG gauge wire.
- Meets SAE-AS81824 requirements
- Immersion-resistant in-line splice
- 135°C insolation rating
- Small size and light weight
- Provides insulation and strain relief
- Easy installation
AI disclosure: this description was generated with AI assistance from this product's own listing data.
Product Codes | |
|---|---|
| Mfr Part No: | D-200-84 |
| MIL SPEC: | M81824/1-3 |
Splice Type: Butt spliceInsulation Material: Radiation cross-linked, heat-shrinkable polyvinylidene fluorideCrimp Barrel: nickel-plated copperMeltable Inserts: Meltable thermoplasticBarrel Inside Diameter: 4.32 mm (0.17 in)Wire Size: 16 - 12 AWG 2,375 - 6,755 CMA 0.95 - 3.37 mmMaximum Number of Wires: side 1: 2 side 2: 2Operating Temperature: 150°C max.Temperature Rating: -55°C to 150°C (-67°F to 302°F)Voltage Drop: 6.9mV at 4.5A vs 8.1mV for an equal length of wireTensile Strength: exceeds strength of the conductorDielectric Strength: 2.5kVInsulation Resistance: 5,000 MΩGovernment Certified: noQualified to MIL-S-81824/1
- Stock: Out of Stock
- Manufacturer Part #: D-200-84
