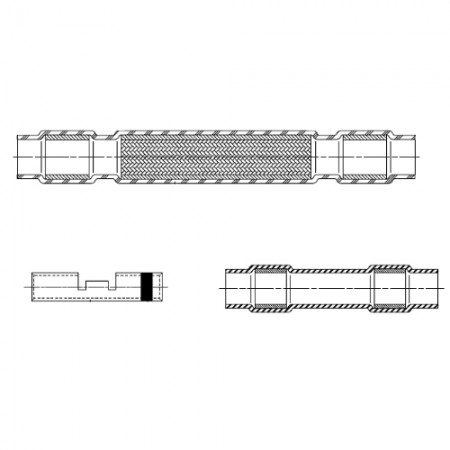

D-150 solder sleeve splices provide encapsulation, strain relief, insulation, and simple inspections for splicing together one or two wires per end. The one-piece design makes installation simple and cost effective.
This D-150 solder splice (Alternate Part# D-150-0169) will fit over 20 – 16 AWG cables with one tin- or silver-plated conductor. Colored blue.
- Provides environment resistant seal
- One-to-one inline shielded splice
- Compatible with twisted pair, trio and quad cables with nickel-plated conductors
- 135°C minimum wire insulation rating
Product Codes | |
|---|---|
| Mfr Part No: | D-150-0169 |
| ANSI: | ANSI/ASQZ 1.4 AQL 2.5 LEVEL I |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8536.90.4000 |
AWG wire range: 20 AWG – 16 AWGDimensions: 3.170 x 0.157 in (80.52 x 4 mm)Insulation Material: Heat-shrinkable, radiation cross-linked modified polyvinylidene fluorideColor Code: BlueSolder Type: Type Sn63 per ANSI J-STD-006Flux Type: Type ROM1 per ANSI J-STD-004Crimp Splice: tin-plated, copper alloyTemperature Rating: -55°C to 150°C
- Stock: Out of Stock
- Manufacturer Part #: D-150-0169
