B-40 coaxial solder terminal sleeves provide easy termination of the primary conductor and the braided shield of coaxial cables. These solder terminals offer insulation and strain relief while providing an economical method for attaching the connector of coax cable to connector terminals, printed wire assemblies, and solderless wrap terminals.

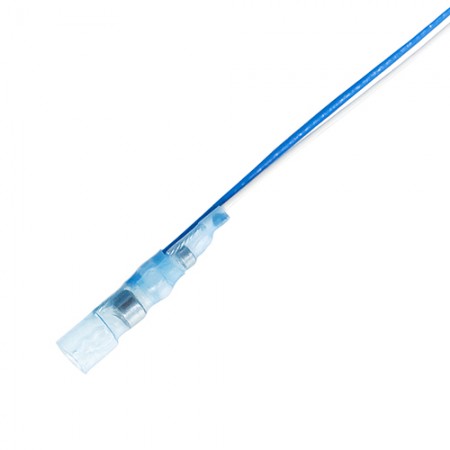

This B-40 solder sleeve (Alternate Part# B-040-24-N) fits 24 AWG gauge coax cables that have a jacket diameter of 0.175 inches. *see datasheet
- Ideal for terminating coax cables
- 125°C temperature rating
- Provides insulation and strain relief
- Works with tin- or silver-plated shield materials
Product Codes | |
|---|---|
| Mfr Part No: | B-040-24-N |
Wire Gauge: 24 AWGOverall Length: 1.180 in (30 mm)Jacket Diameter: 0.175 in (4.4 mm), expanded 0.065 in (0.065 mm), minimumBraid Diameter: 0.110 in (2.8 mm), expanded 0.060 in (1.5 mm), minimumTemperature Range: -55°C to 150°CInsulation Sleeve: Heat-shrinkable, radiation cross-linked modified polyvinylidene fluorideInsulation Color: transparent blueSolder Preforms (with flux): Solder: TYPE Sn63 per ANSI J-STD-006 Flux: TYPE ROL1 per ANSI J-STD-004Meltable Rings: Thermally stabilized thermoplasticConductor Lead: MIL-W-22759/32-GA-9, AWG “GA†ETFE insulated, stranded tin plated copper  Conductor Lead Color: whiteGround Lead: MIL-W-22759/32-GA-6, AWG “GA†ETFE insulated, stranded tin plated copper  Ground Lead Color: blue
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: B-040-24-N
