8000 Series Airspeed Indicators UTD AIRSPEED. Pitot-static instrument (airspeed indicator). Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number UTD AIRSPEED against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

8100 Series True Airspeed Indicators UTD TRUE AIRSPEED..

Airspeed Indicator, 3 1/8 inch 40-200 mph/ 35-170 knots Lighted, TSO UTD 8000-B166-L..

Airspeed Indicator, 3 1/8 inch 40-200 mph/ 35-170 knots, TSO UTD 8000-B166..

Airspeed Indicator, 3 1/8 inch 40-250 mph/ 40-200 knots Lighted, TSO UTD 8025-B167-L..

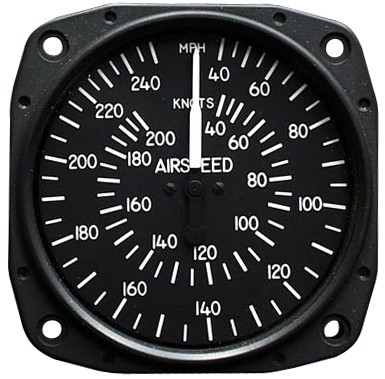

Airspeed Indicator, 3 1/8 inch 40-250 mph/ 40-200 knots, TSO UTD 8025-B167..

Airspeed Indicator, 3 1/8 inch 40-300 mph/ 40-260 knots, TSO UTD 8030-B168..

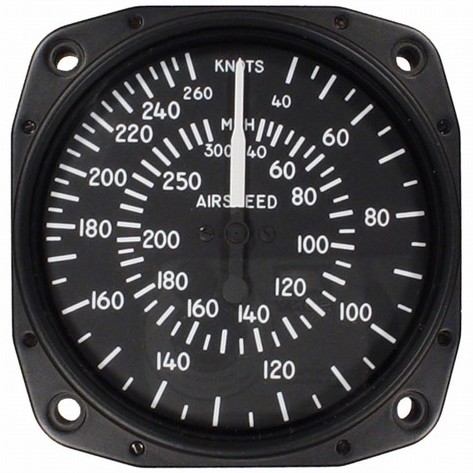

Airspeed Indicator, 3 1/8 inch40-300 mph/ 40-260 knots Lighted, TSO UTD 8030-B168-L..

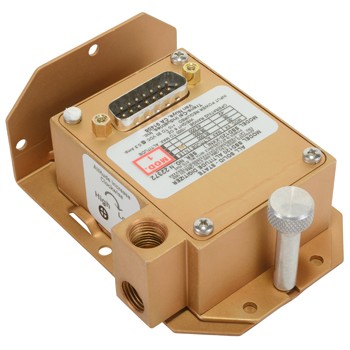

ALT ENCODER/30K/NANO/NARCO SSD120-30N(MOD.1)SSD120 Nano Altitude Encoder | Mod. 1 Narco Transponders, 30,000 ftThe SSD120-(XX)-N Series Nano altitude encoders are all solid-state devices that measure air pressure and convert the measurements into the ICAO parallel data for pressure altitude transmission via ICAO pressure altitude Gray Code output. The SSD120-30N model (Alternate Part# 30N-MOD1): -1,000 ft — 30,000 ft altitude rangeFactory modified (MOD. 1) for Narco AT-5A, AT-6A, AT-50, and AT-50A transpondersIncludes mounting bracket, mating connectors with cable clamps, and installation kitFeatures: Dual 1/8-27 NPT static port inletsOne ICAO pressure altitude Gray code outputOptional two or five RS-232 compliant data outputsSerial ports may be installer configured to transmit separate data protocols (message and baud data)Power, ground, and data I/O lines provided on industry standard D-miniature connectorsConstructed with corrosion-resistant aluminum housingProduct CodesMfr Part No:SSD120-30N(MOD.1)ECCN:7A994ETSO:C88ASCHEDULE B CODE:9014.20.6000TSO:C88AWeight: 5.9 oz (low altitude) 6.3 oz (high altitude) Altitude ceiling: 30,000 to 42,000 ft (low altitude) 50,000 to 100,000 ft (high altitude) ICAO Gray Code output: Yes RS-485 output: No (except for SSD120(XX)N-RS model) Operating voltage: 12VDC @ 220mA / 28VDC @ 270mA (low altitude) 12VDC @ 55mA / 28VDC @ 60mA (high altitude) Low operating temperature: -20°C / -55°C (E models) High operating temperature: 70°C Wet environment: No Electrical Connector: D-Subminiature 15-pin, SSD120-(XX)N D-Subminiature 15-pin & 9-pin, -RS232 (low/high models) D-Subminiature 15-pin plug & 15-pin recpt, -RS models Static line connection: Dual 1/8-27NPT (low altitude) Dual 1/8-27NPT or 1/8 Tube Swivel Fitting (high altitude) Approvals: TSO-C88a ETSO-C88a MIL-STD-704E RTCA DO-160E..

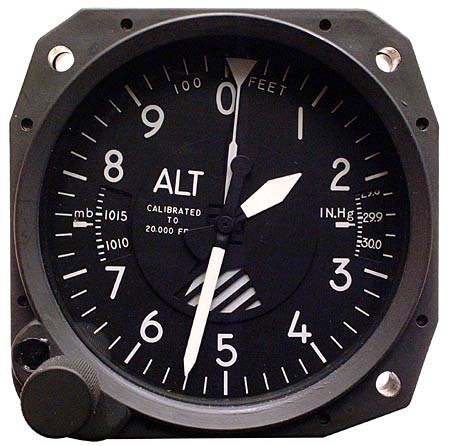

Altimeter, 0-20,000 ft Dual Scale, Millibar/ in Hg, TSO UTD 5934PD3..

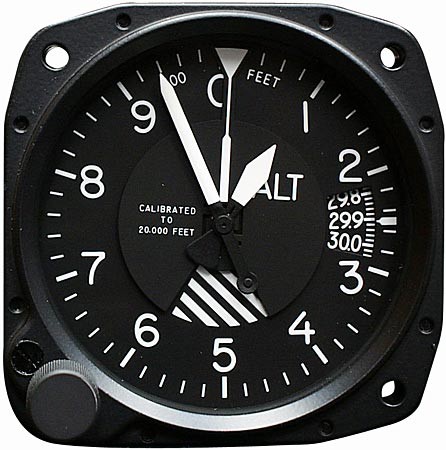

Altimeter, 0-20,000 ft in Hg, Lighted 14 volt, TSO UTD 5934P3L..

Altimeter, 0-20,000 ft in Hg, TSO UTD 5934P3. Pitot-static instrument (altimeter). Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number UTD 5934P3 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

Altimeter, 0-20,000 ft Millibar, TSO UTD 5934PM3. Pitot-static instrument (altimeter). Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number UTD 5934PM3 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

Altimeter, 0-35,000 ft in Hg, Lighted, TSO UTD 5934PA3L..

Altimeter, 0-35,000 ft in Hg, TSO UTD 5934PA3. Pitot-static instrument (altimeter). Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number UTD 5934PA3 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

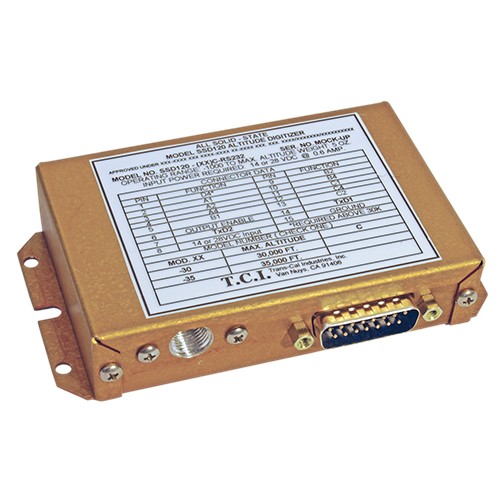

ALTITUDE ENCODER/1/8-27 NPT static port inlet, 1 ea ICAO pressure altitude gray code output, ICAO Parallel Code,2 ea RS232 serial altitude data outputs, operating altitude range -1000 to +35,000 feet, 10' serial resolution, 42 month warranty. The serial data protocol can provide pressure altitude data to ADS-B, GPS, Auto-Pilots, Transponders and other navigation devices. Six (6) serial data protocols are available. SSD120-35C-RS232SSD120-35C Altitude EncoderThe SSD120-35C-RS232 (SSD120-35C) is a rugged and reliable altitude digitizer for applications where size, weight, and economy are critical. This encoder accurately measures air pressure and converts this measurement into the ICAO parallel data as set forth in the International Standard for Pressure Altitude Transmission.Incorporating one ICAO gray code port and two RS232 serial altitude data outputs, this encoder is a simple and robust addition to any avionics installation requiring pressure altitude information for multiple aircraft systems. The serial data protocol is commonly used to provide pressure altitude data to ADS-B, GPS, auto-pilots, transponders and other navigation devices. Six serial data protocols are available. Data protocol is selected through internal shunts or via software set-up. Installation hardware includes: quick release mounting tray, mating electrical connector and backshell, 1/8-27NPT to tube and plug, and installation manual.Small, light, and low power consumption1/8-27NPT static port inletADS-B CompliantOne ICAO pressure altitude gray code outputTwo RS232 serial altitude data outputsResolution of the serial altitude data may be set to 100 feet or 10 feet through internal shuntsAltitude range from -1,000 to 35,000 feetFAA TSO-C88a and ETSO-C88a approvedTested and conforms to MIL-STD-704E and RTCA DO-160EProduct CodesMfr Part No:SSD120-35C-RS232ECCN:7A994PROAPP:PT0758NMSCHEDULE B CODE:9014.20.6000TSO:C88aWeight: 4.3 oz (5.3 oz with tray and knob) Operating Voltage: 12 - 30 VDC Operating Current: 0.25 amps @14 VDC, 0.27 amps @28 VDC Operating Temperature: -20°C to 55°C (-4°F to 158°F) Storage Temperature: -65°C to 85°C (-85°F to 185°F) Warm-up Time: 0 sec @20°C (68°F) Operating Altitude: 1,000 to 35,000 ft Certifications: FAA TSO C88a, EASA TSO C88a, RTCA DO-178 software, RTCA-DO-160E D1BAB[(SM (UF)]XXXXXXZBBB(BC)TTBXXXAX..

ALTITUDE ENCODER/30K/NANO SSD120-30NSSD120 Nano Altitude Encoder | 30,000 ftThe SSD120-(XX)-N Series Nano altitude encoders are all solid-state devices that measure air pressure and convert the measurements into the ICAO parallel data for pressure altitude transmission via ICAO pressure altitude Gray Code output. The SSD120-30N model (Alternate Part# SSD120-30N): -1,000 ft — 30,000 ft altitude rangeIncludes mounting bracket, mating connectors with cable clamps, and installation kitFeatures: Dual 1/8-27 NPT static port inletsOne ICAO pressure altitude Gray code outputOptional two or five RS-232 compliant data outputsSerial ports may be installer configured to transmit separate data protocols (message and baud data)Power, ground, and data I/O lines provided on industry standard D-miniature connectorsConstructed with corrosion-resistant aluminum housingProduct CodesMfr Part No:SSD120-30NECCN:7A994ETSO:C88APROAPP:PT0758NMSCHEDULE B CODE:9014.20.6000TSO:C88AWeight: 5.9 oz (low altitude) 6.3 oz (high altitude) Altitude ceiling: 30,000 to 42,000 ft (low altitude) 50,000 to 100,000 ft (high altitude) ICAO Gray Code output: Yes RS-485 output: No (except for SSD120(XX)N-RS model) Operating voltage: 12VDC @ 220mA / 28VDC @ 270mA (low altitude) 12VDC @ 55mA / 28VDC @ 60mA (high altitude) Low operating temperature: -20°C / -55°C (E models) High operating temperature: 70°C Wet environment: No Electrical Connector: D-Subminiature 15-pin, SSD120-(XX)N D-Subminiature 15-pin & 9-pin, -RS232 (low/high models) D-Subminiature 15-pin plug & 15-pin recpt, -RS models Static line connection: Dual 1/8-27NPT (low altitude) Dual 1/8-27NPT or 1/8 Tube Swivel Fitting (high altitude) Approvals: TSO-C88a ETSO-C88a MIL-STD-704E RTCA DO-160E..

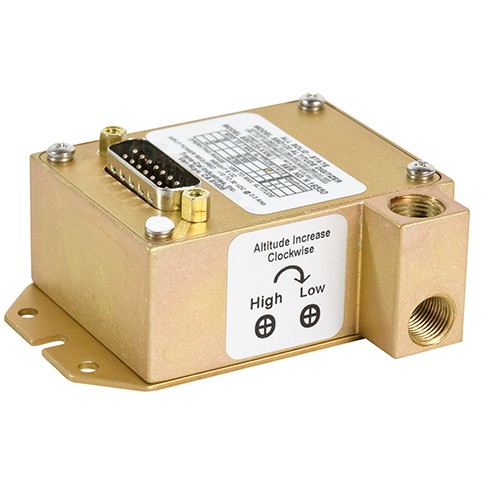

ALTITUDE ENCODER/35K/NANO SSD120-35NSSD120 Nano Altitude Encoder | 35,000 ftThe SSD120-(XX)N Series High Altitude Nano Encoders are all solid-state devices that measure air pressure and convert the measurements into the ICAO parallel data for pressure altitude transmission via ICAO pressure altitude Gray Code output. This High Altitude Nano Encoder (Alternate Part# SSD120-35N) includes: -1,000 ft to 35,000 ft altitude range15 Pin D-Subminiature Mating Connector (1 ea.)15 Pin Connector Back Shell (1 ea.)1/8 NPT Nylon tube fitting (1 ea.)1⁄4-inch Tube Polypropylene tee fitting (1 ea.)1/8-27NPT Nylon Plug (1 ea.)Features: Dual 1/8-27 NPT static port inletsOne ICAO pressure altitude Gray code outputOptional two or five RS-232 compliant data outputsSerial ports may be installer configured to transmit separate data protocols (message and baud data)Power, ground, and data I/O lines provided on industry standard D-miniature connectorsConstructed with corrosion-resistant aluminum housingProduct CodesMfr Part No:SSD120-35NETSO:C88aTSO:C88aWeight: 5.9 oz (low altitude) 6.3 oz (high altitude) Altitude ceiling: 30,000 to 42,000 ft (low altitude) 50,000 to 100,000 ft (high altitude) ICAO Gray Code output: Yes RS-232 output: Yes (except for SSD120-(XX)N model) RS-485 output: No (except for SSD120(XX)N-RS & RS1 models) Operating voltage: 12VDC @ 220mA / 28VDC @ 270mA (low altitude) 12VDC @ 55mA / 28VDC @ 60mA (high altitude) Low operating temperature: -20°C / -55°C (E models) High operating temperature: 70°C Wet environment: No Electrical Connector: D-Subminiature 15-pin, SSD120-(XX)N D-Subminiature 15-pin & 9-pin, -RS232 (low/high models) D-Subminiature 15-pin plug & 15-pin recpt, -RS models Static line connection: Dual 1/8-27NPT (low altitude) Dual 1/8-27NPT or 1/8 Tube Swivel Fitting (high altitude) Approvals: TSO-C88a ETSO-C88a MIL-STD-704E RTCA DO-160E..

ALTITUDE ENCODER/42K/NANO SSD120-42NSSD120 Nano Altitude Encoder | 42,000 ftThe SSD120-(XX)N Series High Altitude Nano Encoders are all solid-state devices that measure air pressure and convert the measurements into the ICAO parallel data for pressure altitude transmission via ICAO pressure altitude Gray Code output. This High Altitude Nano Encoder (Alternate Part# SSD120-42N) includes: -1,000 ft to 42,000 ft altitude range15 Pin D-Subminiature Mating Connector (1 ea.)15 Pin Connector Back Shell (1 ea.)1/8 NPT Nylon tube fitting (1 ea.)1⁄4-inch Tube Polypropylene tee fitting (1 ea.)1/8-27NPT Nylon Plug (1 ea.)Features: Dual 1/8-27 NPT static port inletsOne ICAO pressure altitude Gray code outputOptional two or five RS-232 compliant data outputsSerial ports may be installer configured to transmit separate data protocols (message and baud data)Power, ground, and data I/O lines provided on industry standard D-miniature connectorsConstructed with corrosion-resistant aluminum housingProduct CodesMfr Part No:SSD120-42NECCN:7A994ETSO:C88ASCHEDULE B CODE:9014.20.6000TSO:C88AWeight: 5.9 oz (low altitude) 6.3 oz (high altitude) Altitude ceiling: 30,000 to 42,000 ft (low altitude) 50,000 to 100,000 ft (high altitude) ICAO Gray Code output: Yes RS-232 output: Yes (except for SSD120-(XX)N model) RS-485 output: No (except for SSD120(XX)N-RS & RS1 models) Operating voltage: 12VDC @ 220mA / 28VDC @ 270mA (low altitude) 12VDC @ 55mA / 28VDC @ 60mA (high altitude) Low operating temperature: -20°C / -55°C (E models) High operating temperature: 70°C Wet environment: No Electrical Connector: D-Subminiature 15-pin, SSD120-(XX)N D-Subminiature 15-pin & 9-pin, -RS232 (low/high models) D-Subminiature 15-pin plug & 15-pin recpt, -RS models Static line connection: Dual 1/8-27NPT (low altitude) Dual 1/8-27NPT or 1/8 Tube Swivel Fitting (high altitude) Approvals: TSO-C88a ETSO-C88a MIL-STD-704E RTCA DO-160E..

AvMap ULTRA EFIS/Electronic Flight Instrument System(EFIS), Stand-alone unit, 3.5 ultra bright LCD display, solid-state gyros accelerometers, magnetic field sensors, air data sensors and UAV navigation motion processor. Includes GPS antenna receiver and 2 serial connections for sending out NMEA messages. Compatible with RS-232 and NMEA 0183. UX0EFS51AMUltra EFIS | Electronic Flight Instrument SystemThe Ultra EFIS is a complete instrumentation system for primary flight display (PFD) and horizontal situation indicator (HSI) functions. It is a rugged and reliable system designed for fixed panel installation and fits in a standard 3 1/8” diameter hole. This unit combines 9 instruments into 1. Users get an Altimeter, Airspeed Indicator, Artificial Horizon, Directional Gyro / HSI, Side Slip Indicator, Vertical Speed Indicator, Automatic Direction Finder with GPS, G-meter, and Magnetic Compass all in one instrument. The Ultra EFIS contains solid-state gyros, accelerometers, magnetic field sensors, air data sensors and motion processors.Connecting an external GPS receiver to the Ultra, the system provides the pilot with navigation information on the HSI page, providing its position, direction and radials relative to reference navigation points.Software Update 5.22.0R released! For more information, check out the promo video here. Preloaded with Jeppesen navigation POI’sCoverage in Europe-Africa, North America, South America, Asia-AustraliaDisplays altimeter, airspeed, artificial horizon, directional gyro/horizontal situation, side slip, vertical speed informationAutomatic direction finder with GPSG-meterMagnetic compassFits in a standard 3 1/8” diameter holeProduct CodesMfr Part No:UX0EFS51AMWeight: 230g (5.11 oz) Dimensions: 3.74 x 3.74 x 3.07 in. (95 x 95 x 78 mm) Interface: RS-232 serial Operating temperature: -20 °C + 70 °C ( -4 °F + 158 °F) Pitot/static ports: 1/8 in. NPT..
