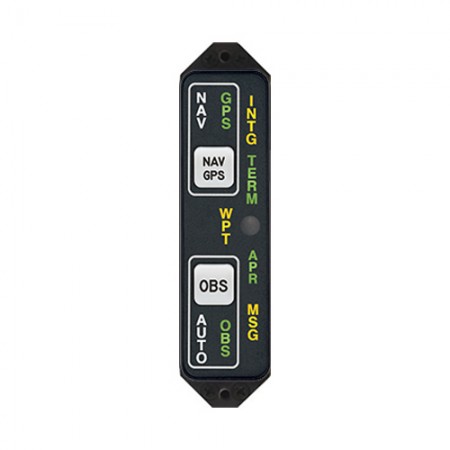

The MD41 is a compact, self-contained GPS Annunciation and Control unit. It combines all the necessary functions required to interface the Garmin GPS 400/500, GNC 420/520 and GNS 430/530 approach certified GPS receivers with the MD41-244/248 remote mounted relay transfer system. In addition, the MD41 contains several GPS status annunciations used to indicate modes selected by the front panel switches and various inputs from the GPS receiver.
Version (Alternate Part# MD41-1418A) is a 28V unit with vertical orientation compatible with the Garmin GPS 400/500, GNC 420/520 and GNS 430/530 approach certified GPS receivers with the MD41-244/248 remote mounted relay transfer system. Includes remote relay.
- Compact, self-contained GPS Annunciation unit
- More than 25,000 MD41s currently in service
- 10,000 hour lamp with automatic photocell dimming and proven daylight-readability
- 28 Volt
- Vertical configuration
- Reduces installation costs:
- Single cutout
- Panel punches available
- Easy-to-wire D-subminiature connector
- Includes NAV/GPS switching push button for the 400W and 500W series
- Certified TSO C129a
- Meets RTCA DO-160C environmental specs (certified to 55,000 feet)
- Quality Mil-Spec connector included
Product Codes | |
|---|---|
| Mfr Part No: | KITMD41-1418A |
| ECCN: | 9A991 |
| SCHEDULE B CODE: | 8536.50.9030 |
| TSO: | C129 |
Weight: 0.50 lbDimensions: 3.25 x 3.20 x 0.80 in.Temperature: -55ºC to +70ºC Humidity: 95% non-condensingAltitude: 55,000 ft
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: KITMD41-1418A
