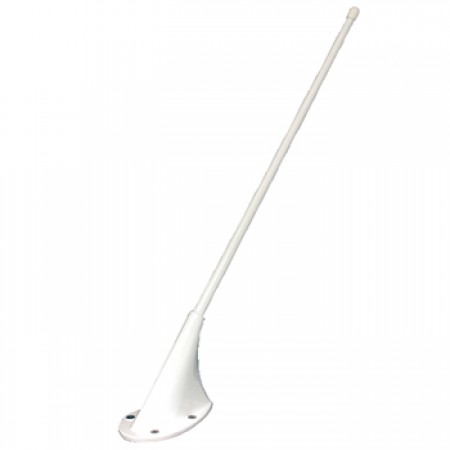

ELT ANTENNA/Rod type, 350 knots, 3 Frequency 121.5, 243 and 406 MHz, white. Dual antenna connection, 1each BNC for 121.5, 243.0 and 1 each TNC connector for 406.0. 110-320
ELT ANTENNA/Rod type, 350 knots, 3 Frequency 121.5, 243 and 406 MHz, white. Dual antenna connection, 1each BNC for 121.5, 243.0 and 1 each TNC connector for 406.0. 110-320110-320 Tri-Band ELT Rod Antenna | Dual Input, 121.5/243/406MHz, White
The Artex 110-320 antenna is designed with a glass-reinforced, polyester housing and uses proprietary Tri-Band technology to provide signal transmission on 121.5, 243, and 406 MHz with 10 dB of isolation between ports. Use #280-0320, optional gasket for 110-320 for installation.
- White
- Tri-Band technology
- Dual input BNC, TNC
- 121.5, 243, and 406 MHz frequencies
- Vertical polarization
- Omni-directional radiation pattern
- Tough glass reinforced polyester housing
- Designed to meet the Eurocae ED 62 flame test
Product Codes | |
|---|---|
| Mfr Part No: | 110-320 |
| ECCN: | 7A994 |
| NSN: | 5985-01-493-3928 |
| PROAPP: | PT1113CE/PQ1113CE |
| SCHEDULE B CODE: | 8529.10.4000 |
| TSO: | C126 THIS PART IS A SUBCOMPONENT OF AN FAA TSOA ARTICLE. |
Weight: 0.45 lbHeight: 15.50 in.Frequency: 121.5, 243 & 406 MHzVSWR: 2.0:1 - 121.5/243 MHz, 1.5:1 - 406 MHzPolarization: VerticalRadiation Pattern: Omni-directionalImpedance: RF 50 OHMS (nominal)Power: 25 wattsMaterial: Molded radome/fiberglass whipFinish: Polyurethane enamelConnector: BNC (female) for 121.5/243 MHz, TNC (female) for 406 MHzTemperature: -55Ëš C to + 85Ëš CAltitude: 50,000 ftColor: WhiteGasket: B31725(optional to order separately)
- Stock: Warehouse
- Manufacturer Part #: 110-320
$1,540.36
