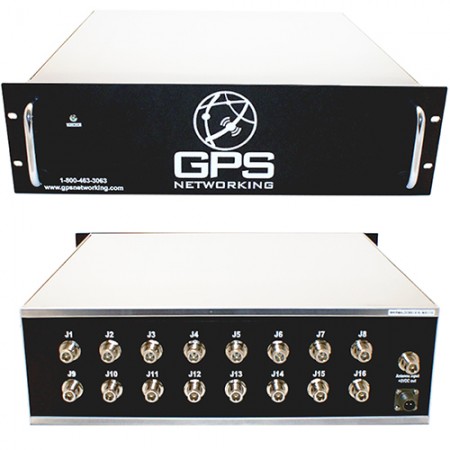

This networked rack mounted amplified loaded DC blocked splitter features one input and sixteen outputs for splitting RF frequencies from 1.1 GHz — 1.7 GHz and fit in to a standard server rack. This GPS splitter is designed to amplify and split signals within the L-band spectrum to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or anther device up from the splitter. The other ports (J2 — J16) are DC blocked and loaded with 200Ω resistors to simulate antenna current draw preventing antenna alarm faults.
This networked amplified rack mounted GPS splitter (Alternate Part# NRMALDCBS) features one input and sixteen outputs, has N connectors, 5-volt output, and 110-volt source voltage.
- Excellent amplitude balance: <1 dB variation between ports
- Flat group delay: 1 ns variation between L1 & L2
- High gain output: 14.0 dB typical across operating frequency
- Wide accepted frequency range: covering entire L-Band & major GNSS constellations
- Efficiently blocked ports: 200Ω resistor prevents antenna alarm faults
- LED power light
- -48 VDC power option available
- Durable rugged standard 3U chassis
Product Codes | |
|---|---|
| Mfr Part No: | NRMALDCBSIX |
Weight: 10.8 lb (4.90 kg) max.Dimensions: 17.17 x 17.03 x 5.25 inOperating Frequency: -57°C to 87°CFrequency Range: 1.1 GHz — 1.7 GHzCharacteristic Impedance: 50ΩReq. DC Input V.: 3.3 VDC — 15 VDCCurrent Draw: 76 mAGain: 13 dB — 15 dB (14 dB, typical)High Isolation Gain: -2.0 dB — 2.0 dB (0.0 dB, typical)Input SWR: 1.5:1Output SWR: 1.5:1Gain Flatness: 0.5 dB, typical (1.0 dB, max.)Amplitude Balance: 1.0 dB, max.Isolation: L1: 17 dB, typical (76 dB, max.) L2: 12 dB, typical (71 dB, max.)Group Delay Flatness: 1 ns, typicalInput P1dB: -23.5 dBmSource Voltage Option: 110 VAC (Transformer (ITA Type A Wall Mount)Output Voltage Option: 5V @ 130 mAConnector Option: N type connector
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: NRMALDCBSIX
