ANTENNA/Military Airborne communications for fixed wing aircraft, operating temperature range: -65 degrees Fahrenheit to 257 degrees Fahrenheit, 225-400 MHz, 50 Ohms, N Female Connector, 55 Mpa, Airspeed rating: Mach 0.95, altitude: 70,000 feet. 8 Hole M

ANTENNA/Military Airborne communications for fixed wing aircraft, operating temperature range: -65 degrees Fahrenheit to 257 degrees Fahrenheit, 225-400 MHz, 50 Ohms, N Female Connector, 55 Mpa, Airspeed rating: Mach 0.95, altitude: 70,000 feet. 8 Hole Mount, & a Granite Grey Finish. AT-256A/ARC
ANTENNA/Military Airborne communications for fixed wing aircraft, operating temperature range: -65 degrees Fahrenheit to 257 degrees Fahrenheit, 225-400HZ, 50 Ohms, N female connector, 55 Mpa.

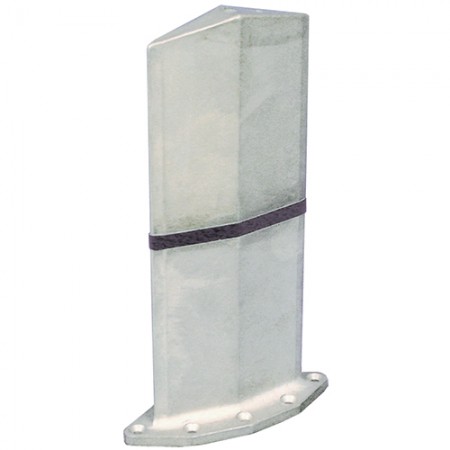

The AT-256A/ARC Antenna is used for airborne communications on various fixed-wing and rotary-wing aircraft. The antenna is produced to Military Specifications MIL-A-5815 and MIL-A-5815/1. The antenna is designed to operate at the extreme temperature range of -65 F to 257 F with intermittent operation at 302 F and can withstand a static load of 8 psi perpendicular to the blade, with an ultimate of 12 psi. The antenna is protected by an anodic coating to prevent corrosion and the outside surfaces will resist particular erosion up to Mach 0.95. The antenna's sealability is tested to an altitude of 70,000 ft.

Product Codes
Mfr Part No:	AT-256A/ARC
MIL SPEC:	M5815/1-01
ECCN:	7A994
MIL SPEC:	M5815/1-01
NSN:	5985-00-217-0457
SCHEDULE B CODE:	8529.10.4000
