COCKPIT DOCKING STATION/For EKP V mounting. Full connection: 4 USB input, 2 serial output, Audio IN/OUT, Video IN and Power supply. External GPS antenna and wire clamp board adaptor included UX0DS100AM

COCKPIT DOCKING STATION/For EKP V mounting. Full connection: 4 USB input, 2 serial output, Audio IN/OUT, Video IN and Power supply. External GPS antenna and wire clamp board adaptor included UX0DS100AM

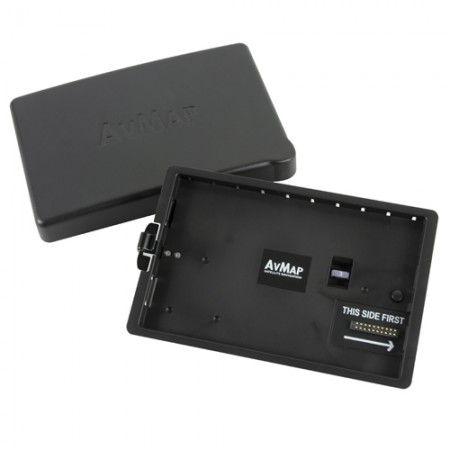

EKP V Cockpit Docking Station | Power Supply, USB, External GPS

The Cockpit Docking station allows the EKP V to be mounted directly to the panel which enables the navigator to interface with multiple external devices at the same time. It mechanically hosts the EKP V creating a hub of all electrical connections. With four simultaneous USB connections plus two serial connections, users can easily customize the system and connect any desired additional instruments.

Product Codes
Mfr Part No:	UX0DS100AM

Dimensions: 6.77 x 4.33 in.Operating temperature: -20ºC to 70ºCSupply voltage: 10-35 VDCN.2 serial ports: (1xRS-232, 1x TTL levels)N.4 USB OTG: (output 5v - 500 mA, 1x powered by EKP V internal battery)
