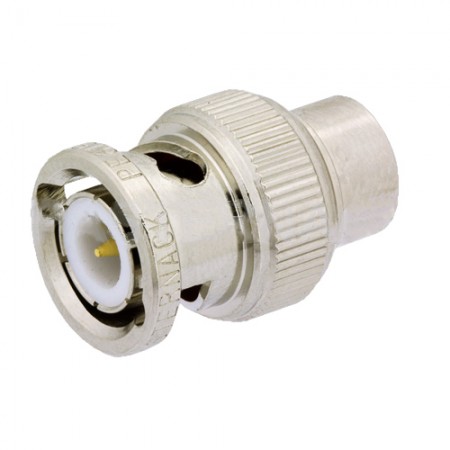

The PE6156 is a two watt RF termination load with a BNC male, nickel-plated brass coaxial connector that operates from DC 4 GHz.
- DC to 4 GHz frequency range
- Two watt (CW) maximum power
- -16 dB maximum return loss
- BNC male coaxial interface
- Ideal use in wireless, SatCom, radar systems, test & measurement, commercial & military communications
Product Codes | |
|---|---|
| Mfr Part No: | PE6156 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8529.90.9900 |
Weight: 0.02 lb (9.07 g)Dimensions: 0.84 x 0.54 in (21.34 x 13.72 mm)Connector: BNC maleFrequency Range: 4 GHz, DCImpedance: 50Ω Return Loss: -16 dBInput Power (CW): 2 watts
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: PE6156
