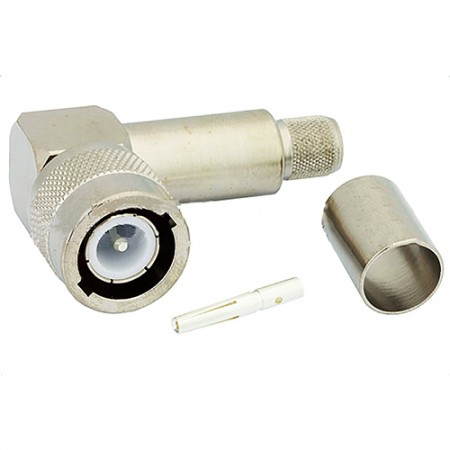

The PE4949 C male right angle connector features a crimp/solder attachment method for attaching to RG214, RG9, and RG393 coax cable. This connector has a 50Ω impedance, silver-plated contacts, and MIL-STD-348 compatible.
- C-type male connector
- Right angle body geometry
- 50Ω impedance
- Silver-plated contact per QQ-S-365 specifications
- RG214, RG9, RG393 cable compatibility
Product Codes | |
|---|---|
| Mfr Part No: | PE4949 |
Weight: 0.127 lb (57.61 mm)Dimensions: 2.16 x 1.3 x 0.75 in (54.86 x 33.02 x 10.05 mm)Connector Type: C maleBody Geometry: right angleAttachment Method: crimp/solder attachmentImpedance: 50ΩContact Plating: Silver (QQ-S-365 standard)Insulation Material: PTFEBody Material: Nickel-plated brass (QC-N-290)Coupling Nut Material: Nickel-plate brass (QQ-N-290)
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: PE4949
