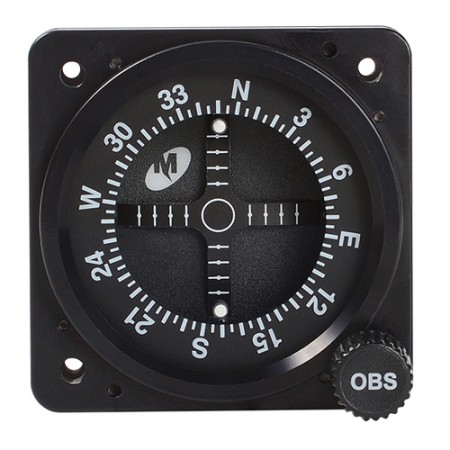

The MD222-406 is configured to work with the Garmin GNS-430/530 navigation equipment.
- Compact size fits in a 2-inch panel hole
- Replaces older navigation indicators
- Ideal for applications where space is limited or as a backup for glass panel displays
- Rectilinear meter movements allow for more accurate readings
- LED backlighting increases reliability in sunlight and provides longer life
- Built-in NAV, GPS and VLOC annunciators
- Rugged construction includes ball bearings in critical areas
- True course resolver output (1 volt, 30 Hz)
- Includes quality Mil-Spec connectors
- FAA TSO certified for use with most GPS and VOR systems
- Designed and built in Wichita, Kansas, USA
Product Codes | |
|---|---|
| Mfr Part No: | MD222-406 |
| ECCN: | 7A994 |
| SCHEDULE B CODE: | 9014.20.6000 |
| TSO: | C34e, C36e, C40c |
Weight: 0.6 lbPower Input: 11 VDC – 32VDC, 0.3A (maximum)Lighting: internal white LED selectable lighting control voltage for 5 VDC, 14 VDC, and 28 VDCCertifications: FAA TSO-C34e, -C36e, -C40c RTCA DO-192, -195, -196, -160ETemperature Range: -30°C to 55°C (-22°C to 130°C)Humidity: 95%, non-condensingAltitude: -15,000 to 55,000 ftCover Glass: special HEA (anti-reflective) coatingConnector: 25-pin male D-Sub (MD25M3S0V50)Mating Connector: 25-pin male D-Sub (MD25F3R4000 or equivalent)Color: index marks, text: white glideslope, navigational pointer: white bezel, dial background: blackOperational Shock: rigid mount, 6G operational, 15G crash safetyNAV/GS Deviation: input impedance: 1KΩ ±10%, nominal max. operating temperature range: 1KΩ±25%deflection sensitivity: 150mV ±10%, nominalValid NAV/GS Deviation: input impedance: 1KΩ ±10%, nominal max. operating temperature range: 1KΩ ±25%meter in view: 260mV ±10%, nominal max. operating temperature range: 260mV ±25% To or From Annunciation: input impedance: 200Ω ±10% max operating temperature range: 200Ω ±25%To or From in View: ±40mV ±15%, nominal max operating temperature range: ±50mV ±25%OBS Resolver: zero at: 300° ±1° ORZ, nominal max. operating temperature range: 300° ±2.5°Input Range: common mode/reference 1 to 5 volts for signal inputs
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: MD222-406
