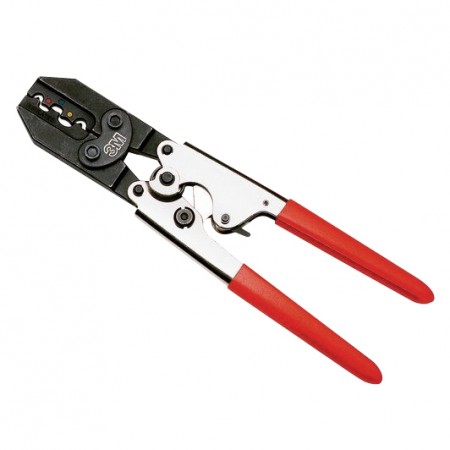

The TR-490 is a positive action ratchet tool that crimps both insulated and non-insulated terminals and connectors. It has hardened steel jaws and a corrosion-resistant finish that offers enhanced durability and effectively crimps nylon, vinyl-insulated or non-insulated, butted or brazed-seam terminals. This tool has a ratchet mechanism which provides positive closure of the handles for a full crimping cycle. It is cushion-gripped, and features a pawl release lever for the removal of misplaced terminals.
- Independently crimps the barrel and grip on insulated and non-insulated terminals and connectors
- A positive closure of the handles ensures a proper crimp
- Crimps nylon, vinyl-insulated or non-insulated, butted- or brazed-seam terminals and connectors
- Crimp stations for 22 to 10 AWG connectors
- Tough steel jaws and handles with corrosion-resistant finish
Product Codes | |
|---|---|
| Mfr Part No: | TR-490 |
Weight: 0.8 lbAWG: 22-10Die sizes insulated: Red - 22-18 AWG Blue - 16-14 AWG Yellow - 12-10 AWGDie sizes non-insulated: 22-14 AWG 12-10 AWG
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: TR-490
