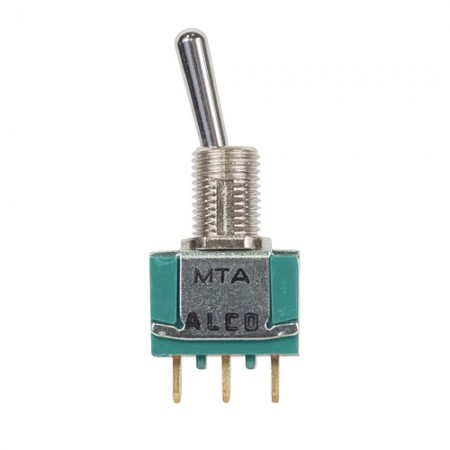

TOGGLE SWITCH/SPDT (single pole double throw), panel mount, gold flash over silver plating, on-off-on 1-1437558-6
TOGGLE SWITCH/SPDT (single pole double throw), panel mount, gold flash over silver plating, on-off-on 1-1437558-6Green Series Toggle Switch | SPDT, ON(MOM)-OFF-ON(MOM)
The Green Series Toggle Switches have silver slugs with all contact surfaces gold flashed, this inhibits oxidation and also offers a very low initial contact resistance. The design also includes overmolded terminals which eliminate any voids with epoxy sealed terminals.
Version MTA-106G is a single-pole, double-throw toggle switch. Positions: ON(momentary)-OFF-ON(momentary)
- Wire lug, PC terminals
- Threaded panel mount
- Overmolded terminals
- 10 mOhms maximum Initial contact resistance
- 1,000 MOhms minimum insulation resistance
- 1500VRMS at sea level Minimum dielectric strength
- RoHS Compliant
- Break-before-make contact timing
Product Codes | |
|---|---|
| Mfr Part No: | 1-1437558-6 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8536.50.9065 |
Bushing: 1/4-40 UNS-2ATemperature Range: -4°F to +176°F (-20°C to +80°C)Contact current max: 6A @ 125VAC 3A @ 250VAC 4A @ 28VDCContact Voltage AC: 115V nominalContact Voltage DC: 28VContact configuration:Single-pole, double-throw (SPDT)Switch operation: ON(MOM)-OFF-ON(MOM)
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: 1-1437558-6
