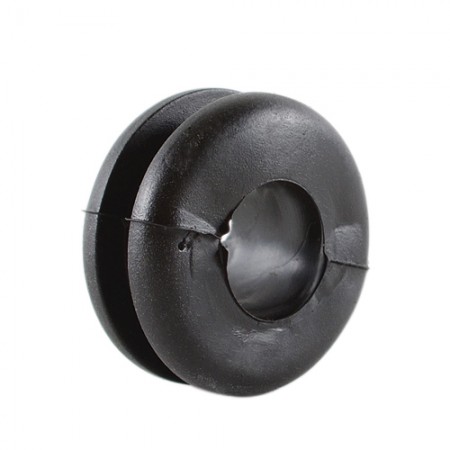

VINYL GROMMET/21/32 DIAMETER GV-21/32 pack of 100
VINYL GROMMET/21/32 DIAMETER GV-21/32 pack of 100Vinyl Grommet | Fits 21/32-in Holes
GV Series Vinyl Grommets are inexpensive, flexible, and oil resistant. They feature a high dielectric strength and have excellent aging qualities.
This GV series vinyl grommet (Alternate Part# GV-21/32) fits into 21/32-inch panel holes.
Features:
- Flexible, inexpensive, and resists oil
- High dielectric strength
- Excellent aging qualities
- Hardness Durometer: 60 ±5 Shore A
- Tensile Strength: 1400 psi
- Abrasive Resistance: Excellent
- Effect of Sunlight: Slight to None
- Hydro Carbon Solvent Resistance: Good
- Weak Acid Resistance: No Effect
- Burning Rate: Self Extinguishing
Product Codes | |
|---|---|
| Mfr Part No: | GV-21/32 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 3926909887 |
Inside Diameter (Dimension A): 0.391 in (9.93 mm)Panel Thickness (Dimension B): 0.125 in (3.18 mm)Overall Diameter (Dimension C): 0.844 in (21.44 mm)Overall Height (Dimension D): 0.375 in (9.53 mm)Panel Hole Diameter (Dimension E): 0.656 in (16.66 mm)
- Stock: Warehouse
- Manufacturer Part #: GV-21/32
$0.00
