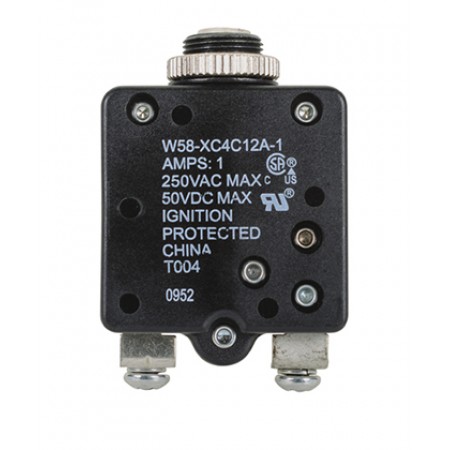

W58XC4C12A-1 CIRCUIT BREAKER/1 AMP, AC: 250V, DC: 50V, 250 VAC, panel mount, 1 pole, push button actuator, screw termination. Height: 34.93 mm Length: 34.93 mm Width: 16.76 mm 3-1393249-9

W58XC4C12A-1 CIRCUIT BREAKER/1 AMP, AC: 250V, DC: 50V, 250 VAC, panel mount, 1 pole, push button actuator, screw termination. Height: 34.93 mm Length: 34.93 mm Width: 16.76 mm 3-1393249-9
W58 Series Circuit Breaker | 1 Amp Rating, Push Actuator

The W58 series are secondary panel-mount thermal circuit breakers with a push to reset actuator and series trip function. The thermal type breakers have an interrupt capacity of 2000 amps at 50 VDC and 1000 amps at 250 VAC. The button color has white with black rate marking with a red trip band.

Includes hardware.

Product Codes
Mfr Part No:	3-1393249-9
ECCN:	EAR99
SCHEDULE B CODE:	8536.20.0020

Weight: Less than 1 1/2 oz. (42.5g)Vibration: Withstands to 10g at 10-55 HzMechanical Shock: Withstands to 10gEndurance Cycling: Over 1,000 cycles at 200% of rated loadDielectric Strength: Over 1,500 volts RMSCurrent Rating: 1 ampVoltage Rating: AC 250V DC 50V Number of Poles: 1Terminals: #6-32 screw terminals
