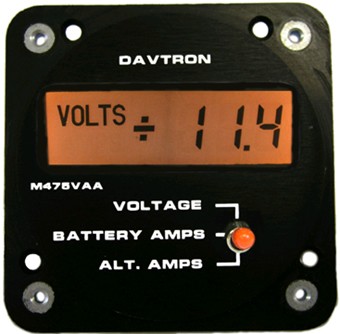

DC VOLTS/BATT AMP/ALT AMP/28V Lighting. Plus or Minus 150 AMP Range. Plus 100 Volt D.C. Range. Operating temperature: -25 degrees Celsius to 60 degrees Celsius. PMA 475VAA-28V400 Series Voltage & Dual Amperage Meter | 2-1/4 Mount, 28V Orange LightingThe M475VAA is a 3-function volt amp meter that can be used with a remote shunt with 14 volt lighting. This volt amp meter features a 100 DC volt range, 150 amp range, sunlight readable display, and remote lighting option. Displays voltage, battery amperage, and alternate amperage measurements. The 475VAA-28V operates on 28V orange lightingOrange backlightingVolts, battery amps, or alternate amps toggle switchLow current drain of 0.001 ampPlus or minus 150.0 amp rangePlus 100.0 VDC rangeRemote optionSunlight readable display0.10 amp resolution0.10 volt resolutionFAA-PMA approvedProduct CodesMfr Part No:475VAA-28VECCN:7A994PMA:PQ1062NMSCHEDULE B CODE:8803.90.9010Dimensions: 2.375 x 1.3 x 2.375 in Range: 8 to 32 V Input voltage: 14 to 28 V Resolution: 0.1 V Input current: 150 mA Operating temperature: -25°C to +60°C..

VOLT AMP METER/For use with remote shunt, 14V lighting. Plus or Minus 150 AMP Range. Plus 100 Volt D.C. Range. Operating temperature: -25 degrees Celsius to 60 degrees Celsius 475VA-R-14V400 Series Voltage & Amperage Meter | 2-1/4 Mount, 14V Orange LightingThe M475VA is a 2-function volt amp meter that can be used with a remote shunt with 14 volt lighting. This volt amp meter features a 100 DC volt range, 150 amp range, sunlight readable display, and remote lighting option. The 475VA-R14V operates on 14V orange lighting and includes the remote option.Orange backlightingVolts or amps toggle switchLow current drain of 0.001 amp100.0 VDC rangeRemote optionSunlight readable display0.10 amp resolution0.10 volt resolutionFAA-PMA approvedProduct CodesMfr Part No:475VA-R-14VECCN:7A994SCHEDULE B CODE:9104.00.0000Dimensions: 2.375 x 1.3 x 2.375 in Range: 8 to 32 V Input voltage: 14 to 28 V Resolution: 0.1 V Input current: 150 mA Operating temperature: -25°C to +60°C..
