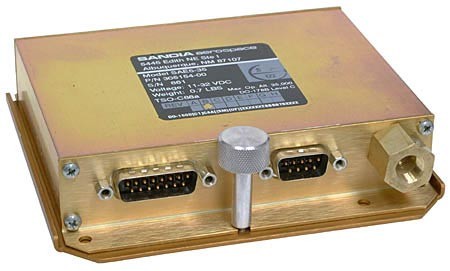

0-35k Altitude Encoder, Gray Code and Serial, TSO AIS SAE5-35..

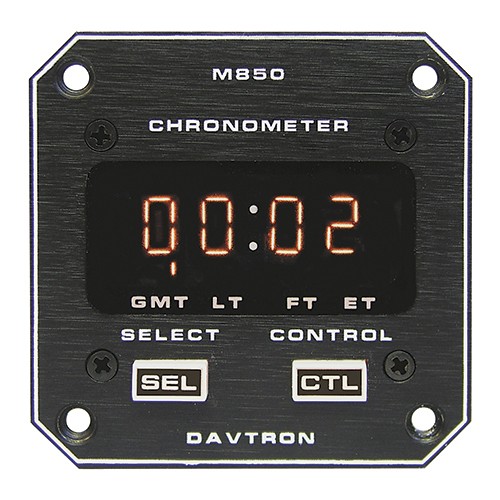

850-5V/24HR LOCAL TIME/NO BATTERY HOLDER 1095-850C-5VM850 Digital Clock Chronometer | 2-1/4in, 5V Orange Incandescent, No Battery HolderThe M850 digital clock chronometer has a two-button control system, setting operations are identical for both alarm and time setting. The universal time is in a 24 hour format, while local time can be set to 12 or 24 hour format. The incandescent high-contrast display is readable in bright sunlight. Version M850C-5V has orange incandescent 5V lighting with no battery holder. This is a 2-1/4 inch front panel mount instrument.Greenwich Mean TimeLocal TimeFlight TimeFlight Time AlarmElapsed TimeCount Up, Count Down, AlarmTwo button control system is natural and error free. Setting operations are identical for both alarm and time settingBright sunlight readable incandescent displaysIlluminated buttons and annunciators for night viewingFlight time recorded in hours and minutes or in hours, tenths and hundredthsSerial time data output for remote useFlight time alarm with external outputElapsed time count down timer with alarmA 4 Megahertz crystal precision time referenceProduct CodesMfr Part No:1095-850C-5VWeight: 4.4 oz Dimensions: 2.375 x 2.46 x 2.375 in Universal Time: 24 hour format Local Time: 12 hour or 24 hour option, user selectable Elapsed Time Count Up: Starts in minutes and seconds, then hours and minutes, up to 99:59 hours Elapsed Time Countdown: Settable from one second to 59 minutes and 59 seconds Elapsed Time Alarm: Activates at zero when counting down Display:  Incandescent Keep alive current: 0.004 Amps. 12 to 30 Volts Voltage: 14 to 28 volts..

ANNUNCIATION CONTROL UNIT/14V, Horizontal, with Internal Relay. For use with Honeywell KLN-89B/94 models. MD41-524ANNUNCIATION CONTROL UNIT/14V, Horizontal, with Internal Relay. For use with Honeywell KLN-89B/94 models. Interface and annunciation device that combines navigation source switching to pilot's primary CDI or HSI with key GPS selection and annunciation functions Transfers Navigation display between VOR/LOC and approach certified GPS systemsProvides up to 19 user defined relay polesTSO C129 Approved to meet NEW FAA field approval requirementsLighted push buttons and daylight readable annunciatorsPush-button lighting level is controlled by the instrument lighting rheostatAnnunciator lighting is automatically dimmed by means of a photocell feedback circuitAvailable in Horizontal or Vertical configurationAvailable with 5, 14, or 28 Volt lightingAvailable for most GPS manufacturersProduct CodesMfr Part No:MD41-524ECCN:EAR66SCHEDULE B CODE:8536.50.9030TSO:C129..

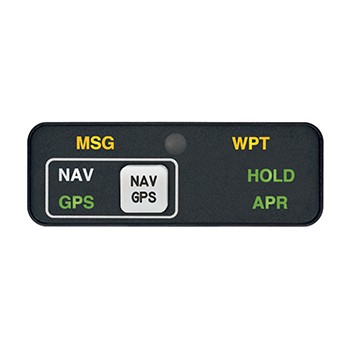

ANNUNCIATION CONTROL UNIT/24 Pole Remote Relay, Horizontal, 28V. For use with FreeFlight (Trimble) 2000APR and 2101 models. MD41-1628ANNUNCIATION CONTROL UNIT/24 Pole Remote Relay, Horizontal, 28V. For use with FreeFlight (Trimble) 2000APR and 2101 models. TSO C129 Approved system (DO-160C Env. Cat. F2-up to 55,000 Feet) Ultra-Compact design available in vertical or horizontal configuration 24-Pole remote relay unit with multiple mounting options Relays energized individually or simultaneously for flexible installation Aircraft Quality MIL-SPEC connectors and installation kit included Internally lighted push buttons Automatic photocell dimming for annunciators Proven daylight readability ILS frequency override selectable Rugged construction insures trouble free operation Available for all approach certified GPS systems Field proven installations, from single-engine to Boeing 737's Professional technical support Product CodesMfr Part No:MD41-1628ECCN:9A991SCHEDULE B CODE:8536.50.9030TSO:C129..

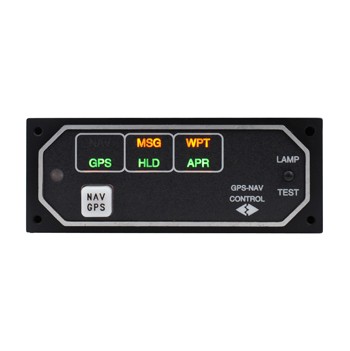

ANNUNCIATION CONTROL UNIT/28V, Horizontal, with internal relay. For use with FreeFlight (Trimble) 2000 APR and 2101 models. MD41-628ANNUNCIATION CONTROL UNIT/28V, Horizontal, with internal relay. For use with FreeFlight (Trimble) 2000 APR and 2101 models. Interface and annunciation device that combines navigation source switching to pilot's primary CDI or HSI with key GPS selection and annunciation functions Transfers Navigation display between VOR/LOC and approach certified GPS systems Provides up to 19 user defined relay poles TSO C129 Approved to meet NEW FAA field approval requirements Lighted push buttons and daylight readable annunciators Push-button lighting level is controlled by the instrument lighting rheostat Annunciator lighting is automatically dimmed by means of a photocell feedback circuit Available in Horizontal or Vertical configuration Available with 5, 14, or 28 Volt lighting Available for most GPS manufacturersProduct CodesMfr Part No:MD41-628ECCN:9A991SCHEDULE B CODE:8536.50.9030TSO:C129..

ANNUNCIATION CONTROL UNIT/28V, Horizontal, with Internal Relay. For use with Honeywell KLN-89B/94 models. MD41-528ANNUNCIATION CONTROL UNIT/28V, Horizontal, with Internal Relay. For use with Honeywell KLN-89B/94 models. Interface and annunciation device that combines navigation source switching to pilot's primary CDI or HSI with key GPS selection and annunciation functionsTransfers Navigation display between VOR/LOC and approach certified GPS systemsProvides up to 19 user defined relay polesTSO C129 Approved to meet NEW FAA field approval requirementsLighted push buttons and daylight readable annunciatorsPush-button lighting level is controlled by the instrument lighting rheostatAnnunciator lighting is automatically dimmed by means of a photocell feedback circuitAvailable in Horizontal or Vertical configurationAvailable with 5, 14, or 28 Volt lightingAvailable for most GPS manufacturersProduct CodesMfr Part No:MD41-528ECCN:9A991SCHEDULE B CODE:8536.50.9030TSO:C129..

ANNUNCIATOR..

ANNUNCIATOR..

ANNUNCIATOR 4766-101207123ANNUNCIATORProduct CodesMfr Part No:4766-101207123..

ANNUNCIATOR 4766-101230123ANNUNCIATORProduct CodesMfr Part No:4766-101230123..

ANNUNCIATOR ASSEMBLY..

ANNUNCIATOR PANEL..

ANNUNCIATOR PANEL (DIAGR)..

ANNUNCIATOR PANEL BLK LTG 065-0063-06KAP 315A Annunciator Panel | Black BezelThe KAP 315A Annunciator Panel is the annunciator panel for the KFC 325 and KFC 275 Flight control System. It features an automatic brightness adjustment with its photocell located on the face of the annunciator panel. The FD, SR, HDG, HB, APR, APR ARM, IAS, BC, TRIM, ALT, NAV, and NAV ARM operate identically to the annunciations provided by the Mode Controllers. No product features currently available.Product CodesMfr Part No:065-0063-06SCHEDULE B CODE:8531.80.0050No product specifications currently available...

AOA/Pitot Boom Probe, Unheated DYNON 532-000..

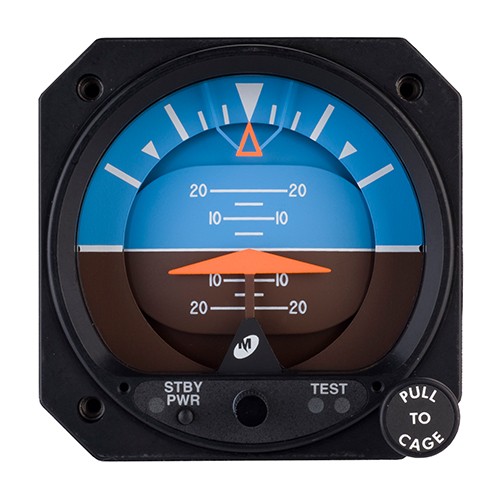

ATTITUDE INDICATOR/Electric, 10-32 VDC, Rotating Roll Dial, Delta Aircraft Symbol 4300-413Attitude Indicator | 3-1/8in, Electric, Rotating Roll, Delta, 10-32VDCThe Model 4300 Electric Attitude Indicator incorporates a moving display that simulates the earth’s horizon and provides the pilot with a real time visual indication of the aircraft pitch and roll attitude relative to the indicator symbolic airplane.Version (#AAP 4300-413) is a 3-1/8 inch 10-32VDC electric attitude indicator with rotating roll and delta symbolic aircraft.A safe alternative to unreliable vacuum systemsIdeal primary or standby artificial horizon in fixed-wing and helicopter applicationsSingle 4-pin connector installation7,500 hours MTBF — more than double the life of most electric gyros10–32 volt DC operation for use in both 14 and 28 volt aircraftField-replaceable lightingAnti-reflective glass enhances visibility and reduces pilot fatigueFAA TSO-C4c certified and RTCA DO-160D qualifiedDO-160 qualified for helicopter vibrationProduct CodesMfr Part No:4300-413SCHEDULE B CODE:9014.20.6000Weight: 2.7 lbs. Length: 6.6 inches MTBF: 7,500 Hours Certification: FAA TSO-C4c RTCA/DO-160D Power Input: 10–32 VDC: 1400 mA start, 600 mA max at 14 VDC input 700 mA start, 300 mA max at 28 VDC input Annunciators: STBY PWR (standby power mode) TEST (battery test — red/green) Lighting: 5, 14 or 28 VDC Incandescent Field-replaceable tray wired through main connector Glass: Special HEA anti-reflective coating Mounting: Rear mount in standard 3 1/8” round panel cutout Temperature Range: –30°C to +70°C (–22°F to +158°F) Mating Connector: Mid-Continent P/N 9015514 (MS3116F8–4S) Panel Tilt: Aircraft specific — calibrated at factory Specify exact tilt between 0° to 20° when ordering Dial: Rotating roll dial, traditional symbolic airplane..

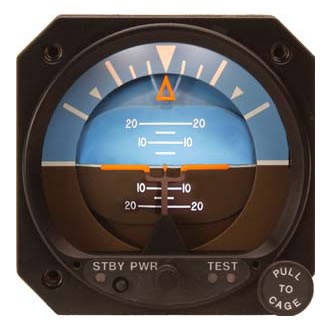

ATTITUDE INDICATOR/Electric, 10-32 VDC, Rotating Roll Dial, Traditional Symbolic Aircraft. 4300-411/0ATTITUDE INDICATOR/Electric, 10-32 VDC, Rotating Roll Dial, Traditional Symbolic Aircraft. Fly with confidence and peace of mind. Fly with Mid-Continent Instruments' new 4300 series electric attitude indicator the Lifesaver gyro. Even if every other system in your aircraft's avionics panel goes dark, the Lifesaver powers on. The only attitude indicator with a self-contained battery backup, it delivers one full hour of emergency attitude reference. One hour of precious time to pull you through when trouble strikes and all other power fails. Can you live without it? Features: Custom versions available to match existing instrument/EFIS displaysOptional self-contained battery backup features built-in annunciators and internal emergency lightingUp to one hour of emergency attitude referenceEasy to install with single connector for primary and optional standby battery modelsExceptional value with 7,500 hours MTBF, more than double the life of most electric gyrosDesigned as the primary or standby artificial horizon in fixed and rotor-wing aircraft.May be installed in place of an existing turn coordinator or turn and slip indicator per FAA advisory circular AC91-75, or as a replacement for the existing attitude gyro per advisory circular AC20-41A.10-32 volt DC replacement for use in either 14 or 28 volt aircraftAnti-reflective glass enhances visibility and reduces fatigueField replaceable lightingApproved to FAA TSO-C4c, RTCA DO160DOne-year manufacturer's limited warranty Product CodesMfr Part No:4300-411/0ECCN:7A994SCHEDULE B CODE:9014.20.6000TSO:C4c..

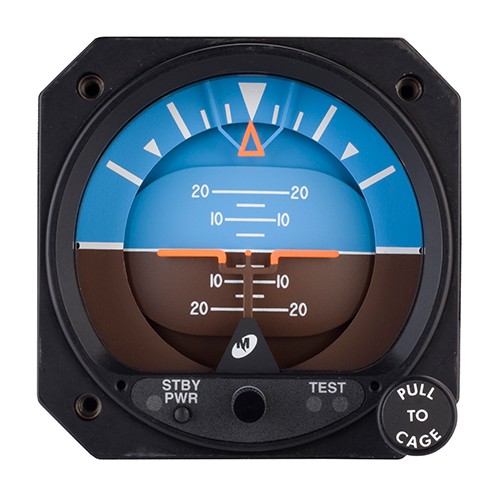

ATTITUDE INDICATOR/Electric, 10-32VDC, 10 Degree Tilt, 28V Lighting 4300-411Attitude Indicator | 3-1/8in, Electric, Rotating Roll, Traditional, 10-32VDC, 10º Tilt, 28V LightingThe Model 4300 Electric Attitude Indicator incorporates a moving display that simulates the earth’s horizon and provides the pilot with a real time visual indication of the aircraft pitch and roll attitude relative to the indicator symbolic airplane.Version (#AAP 4300-41110) is a 3-1/8 inch 10-32VDC electric attitude indicator with rotating roll, traditional symbolic aircraft, 11º tilt, and 28V lighting.A safe alternative to unreliable vacuum systemsIdeal primary or standby artificial horizon in fixed-wing and helicopter applicationsSingle 4-pin connector installation7,500 hours MTBF — more than double the life of most electric gyros10–32 volt DC operation for use in both 14 and 28 volt aircraftField-replaceable lightingAnti-reflective glass enhances visibility and reduces pilot fatigueFAA TSO-C4c certified and RTCA DO-160D qualifiedDO-160 qualified for helicopter vibrationProduct CodesMfr Part No:4300-411ECCN:7a994SCHEDULE B CODE:9014.20.6000TSO:C4cWeight: 2.7 lbs. Length: 6.6 inches MTBF: 7,500 Hours Certification: FAA TSO-C4c RTCA/DO-160D Power Input: 10–32 VDC: 1400 mA start, 600 mA max at 14 VDC input 700 mA start, 300 mA max at 28 VDC input Annunciators: STBY PWR (standby power mode) TEST (battery test — red/green) Lighting: 5, 14 or 28 VDC Incandescent Field-replaceable tray wired through main connector Glass: Special HEA anti-reflective coating Mounting: Rear mount in standard 3 1/8” round panel cutout Temperature Range: –30°C to +70°C (–22°F to +158°F) Mating Connector: Mid-Continent P/N 9015514 (MS3116F8–4S) Panel Tilt: Aircraft specific — calibrated at factory Specify exact tilt between 0° to 20° when ordering Dial: Rotating roll dial, traditional symbolic airplane..

ATTITUDE INDICATOR/Electric, Rotating roll dial, Traditional symbolic aircraft, 10-32 VDC. 4300-311Attitude Indicator | 3-1/8in, Electric, Rotating Roll, Traditional, 10-32VDC, 11º TiltThe Model 4300 Electric Attitude Indicator incorporates a moving display that simulates the earth’s horizon and provides the pilot with a real time visual indication of the aircraft pitch and roll attitude relative to the indicator symbolic airplane.Version (#AAP 4300-31111) is a 3-1/8 inch 10-32VDC electric attitude indicator with rotating roll, traditional symbolic aircraft, and 11º tilt.A safe alternative to unreliable vacuum systemsIdeal primary or standby artificial horizon in fixed-wing and helicopter applicationsSingle 4-pin connector installation7,500 hours MTBF — more than double the life of most electric gyros10–32 volt DC operation for use in both 14 and 28 volt aircraftField-replaceable lightingAnti-reflective glass enhances visibility and reduces pilot fatigueFAA TSO-C4c certified and RTCA DO-160D qualifiedDO-160 qualified for helicopter vibrationProduct CodesMfr Part No:4300-311TSO:C4cWeight: 2.7 lbs. Length: 6.6 inches MTBF: 7,500 Hours Certification: FAA TSO-C4c RTCA/DO-160D Power Input: 10–32 VDC: 1400 mA start, 600 mA max at 14 VDC input 700 mA start, 300 mA max at 28 VDC input Annunciators: STBY PWR (standby power mode) TEST (battery test — red/green) Lighting: 5, 14 or 28 VDC Incandescent Field-replaceable tray wired through main connector Glass: Special HEA anti-reflective coating Mounting: Rear mount in standard 3 1/8” round panel cutout Temperature Range: –30°C to +70°C (–22°F to +158°F) Mating Connector: Mid-Continent P/N 9015514 (MS3116F8–4S) Panel Tilt: Aircraft specific — calibrated at factory Specify exact tilt between 0° to 20° when ordering Dial: Rotating roll dial, traditional symbolic airplane..

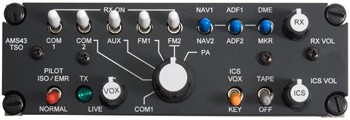

AUDIO CONTROLLR/SINGLE CHANNEL AMS43 TSOAMS43 Single-Channel Audio Controller | TSOThe AMS43TSO single-channel audio controller provides pilots the ability to control the audio sources within an aircraft. Pilots can select audio from transmit (TX) and receive (RX), LIVE, KEYED, or voice activated (VOX) intercom, in addition, handheld microphone transmission and pilot isolation/emergency operations are also provided. This AMS43 single-channel audio controller (Alternate Part# AMS43TSO) is TSO certified. Features: Audio Controller provides transmit and intercom capabilities for pilot and co-pilot, plus intercom for four up to passengersPanel controls include master RX volume, ICS volume, and ICS squelch (VOX adjust)ICS Tie line provided to allow multiple controllers to be networkedSelect between COM1, COM2, AUX, FM1, FM2, PA, NAV1/2, ADF1/2, DME/MKR inputsTransmit capability for five COM channels with auto-receive functionsReceivers select switches allow for first four COM channelsHigh headphone output provides up to 500mW per channelIntercom supports two crew and and passenger stationsActive Noise Filtering (ANF) intercom systemVoice activated (VOX) squelchTwo direct inputs are provided to accommodate functions such as Rad Alt, GPS Alerts, Low Rotor, or Telephone RingerFront panel selectable emergency mode switches the pilot's headphones directly to selected radioThree internal alert tone generators: single-tone, two-tone, and timed sirenProduct CodesMfr Part No:AMS43 TSOECCN:7A994PROAPP:PT2204NM/PQ2204NMSCHEDULE B CODE:8518.40.2000TSO:C50cWeight: 2.1 lb (955 g) Dimensions: 1.9 x 6.82 x 5 in (48.3 x 173.2 x 125 mm) Mounting: Dzus rail Faceplate: Engraved acrylic edge lit panel Material/Finish: Chassis & cover are 5052-H32 brushed aluminum with conversion coating finish Connectors: Male 50 pin & 37 pin D-sub connectors with slide locks Temperature: -20°C to 55°C, operating -55°C to 85°C, survival Altitude: 25,000 ft Input Power: 27.5 VDC @ 0.5 A, nominal Lighting Voltage: 27.5 VDC @ 150 mA, nominal Alert Power: 27.5 VDC 150 mA, nominal INPUT SIGNALS: Quantity: 13 receive channels 7 Mic channels 1 ICS tie channel 2 direct channels Audio Level: 2.5 Vrms (receiver inputs) 0.25 Vrms (mic inputs) 0.34 Vrms (ICS tie input) 2.5 Vrms (direct audio inputs) Impedance: 1KΩ ±10% (receive inputs) 1KΩ ±10% (mic inputs) 1.8KΩ ±10% (ICS tie input) 1.3KΩ ±10% (Direct Audio 1 input) 100Ω ±10% (Direct Audio 2 input) Circuit Type: All single ended inputs Coupling: < -50dB Keylines: Pilot & Copilot Transmit PTT Rear Hand mic Transmit PTT Pilot & Copilot ICS PTT 3 Alerts - active low OUTPUT SIGNALS: Quantity: 6 Headset outputs 6 Transmitter mic outputs 5 Transmitter keyline outputs Rated Level: Headset: 7.7 Vrms or 100 mW (20 dBm) into 600Ω Direct Audio 1: 10 mW (10 dBm) into 600Ω Direct Audio 2: 0.1 mW (-10 dBm) 0.25 Vrms into 600Ω Alert level: 90mV rms ±10% into 600Ω Impedance: 65Ω, maximum Circuitry Type: Single-ended, except for phones, which are balanced Frequency Response: Sidetone:..
