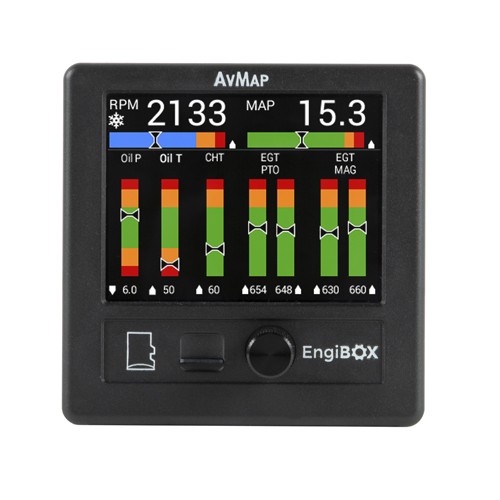

AvMap EngiBOX and 4x EGT PROBE KIT/Stand-alone engine monitoring system. Displays EGT, CHT, Coolant temp, Oil temp, Air temp, Oil pressure, RPM, MAP. Kit includes 4ea EGT Probes, ungrounded thermocouple type K. Connection type: M8x1 screw in (includes M8x1 inox soldering nut). Length 8'.Compatible with Rotax Engines: 912, 912S, 914, 618, 582, 503, and 447 series UX0EMS1XAMEngiBOX Engine Monitoring System | EGT Probe KitEngiBOX is a stand-alone Engine Monitoring System (EMS), developed especially for Rotax Engines, displaying the engine parameters with an update rate of five times per second and recording 160 hours of data in the internal memory. It is a rugged and reliable system designed for fixed panel installation and fits in a standard 3 1/8” diameter hole.The EngiBOX displays Exhaust Gas Temperature (EGT), Revolutions per Minute (RPM), Manifold Pressure (MAP), Oil Pressure, Oil Temperature / Air Temperature, and Cylinder Head Temperature (CHT) / Coolant Temperature (CT).Version (Alternate Part# UX0EMS1XAM) includes EngiBOX unit with 4 each EGT probes, ungrounded thermocouple type K connection type, M8 screw and inox soldering nut.Displays EGT, RPM, MAP, oil pressure, oil temp, air temp, CHT, and coolant tempCompatible with Rotax engines: 912, 912S, 914, 618, 582, 503, and 447 seriesEngiBOX App and Portal for engine management & controlIncludes EGT probe kitFits in a standard 3 1/8” diameter holeProduct CodesMfr Part No:UX0EMS1XAMWeight: 250 g Dimensions: 3.74 x 3.74 x 3.46 in (95 x 95 x 88 mm) Power input range: 10 – 35 VDC Current consumption: 12VDC: 150 mA, maximum Operating Temperature range: -20° C / 70° C..

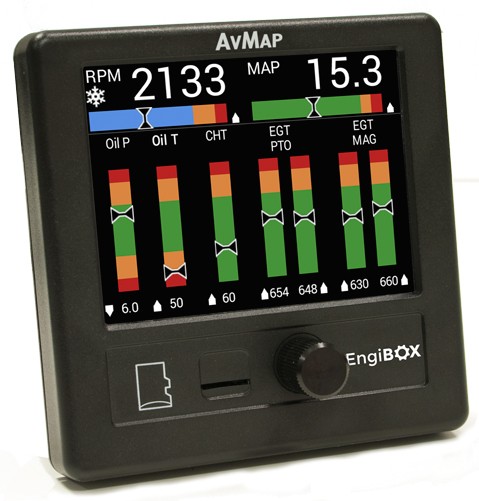

AVMAP ENGIBOX UXOEMS10AM..

AvMap EngiBOX/Stand-alone engine monitoring system. Displays EGT (exhaust gas temp), CHT (cylinder head temp), Coolant temp, Oil temp, Air temp, Oil pressure, RPM, MAP. Compatible with Rotax Engines: 912, 91S, 914, 618, 582, 503, and 447 series. UX0EMS10AMEngiBOX Engine Monitoring System | Rotax EnginesEngiBOX is a stand-alone Engine Monitoring System (EMS), developed especially for Rotax Engines, displaying the engine parameters with an update rate of five times per second and recording 160 hours of data in the internal memory. It is a rugged and reliable system designed for fixed panel installation and fits in a standard 3 1/8” diameter hole.The EngiBOX displays Exhaust Gas Temperature (EGT), Revolutions per Minute (RPM), Manifold Pressure (MAP), Oil Pressure, Oil Temperature / Air Temperature, and Cylinder Head Temperature (CHT) / Coolant Temperature (CT).Displays EGT, RPM, MAP, oil pressure, oil temp, air temp, CHT, and coolant tempCompatible with Rotax engines: 912, 912S, 914, 618, 582, 503, and 447 seriesEngiBOX App and Portal for engine management & controlFits in a standard 3 1/8” diameter holeProduct CodesMfr Part No:UX0EMS10AMWeight: 250g Dimensions: 3.74 x 3.74 x 3.46 in (95 x 95 x 88 mm) Power input range: 10 – 35 VDC Current consumption: 12 VDC: 150 mA, maximum Operating Temperature range: -20° C / 70° C..

MGL COLOR TEMPERATURE / PRESSURE / VOLTS DISPLAY - BLAZE SERIES TP-4..

MGL COLOR TEMPERATURE / PRESSURE / VOLTS DISPLAY VEGA SERIES TP-3..

Water Temperature Sender, Experimental MGL WATER TEMP..
