H-M-series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

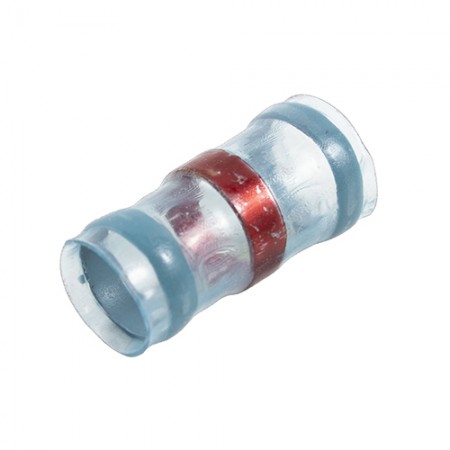

This H-M solder sleeve terminal (Alternate Part# H-M-5) fits wire diameters of 0.100 – 0.275 inch (øD4). No lead or braid. *see Datasheet
- Mil-Spec. AS83519/1 Qualified
- Immersion Resistant
- 150°C Operating Temperature
- 183°C Solder Melt Temperature
- Convection or infrared heated installation
- Sn63 (RMA flux)
Product Codes | |
|---|---|
| Mfr Part No: | H-M-5 |
| MIL SPEC: | M83519/1-5 |
| ECCN: | EAR99 |
| MIL SPEC: | M83519/1-5 |
| NSN: | 5940-01-135-7079 |
| SAE: | AS83519/1-5 |
| SCHEDULE B CODE: | 8536.69.4050 |
Cable Size: ØD4: 0.100 – 0.275 in (see datasheet)Operating Temperature: -55°C to 150°CSolder Melt Temperature: 183°CSolder Type: Sn63 (63% tin ,37% lead)Temperature Indicating Paint (TI): yesJacket Type: KynarLead Wire Include: NoBraid Included: NoEnvironmental Seals: YesRoHS Compliant: NoFlux: RMA
