The Lycoming fuel injection Tube Assembly, Manifold to Nozzle, identified by part number LW-12098-2-216, is an essential component designed for the accurate and reliable delivery of atomized fuel within specific Lycoming fuel-injected aircraft engines. This part plays a crucial role in the engine's fuel distribution system, connecting the main fuel manifold to the individual fuel injection nozzle at each cylinder head, ensuring precise fuel metering for optimal combustion.
Overview
The Lycoming Manifold to Nozzle Tube Assembly (P/N LW-12098-2-216) functions as a dedicated fuel line within the engine's continuous-flow fuel injection system. Each cylinder in a fuel-injected Lycoming engine requires one of these assemblies to transport fuel from the fuel distributor or manifold valve to its respective fuel injector nozzle. Crafted to withstand the demanding operational environment of an aircraft engine, including high pressures, varying temperatures, and constant vibration, the integrity of this tube assembly is paramount for consistent engine performance and safety.
Its primary purpose is to channel fuel from the central distribution point to the precisely calibrated fuel nozzle, which then sprays fuel directly into the cylinder's intake port or combustion chamber, depending on engine design

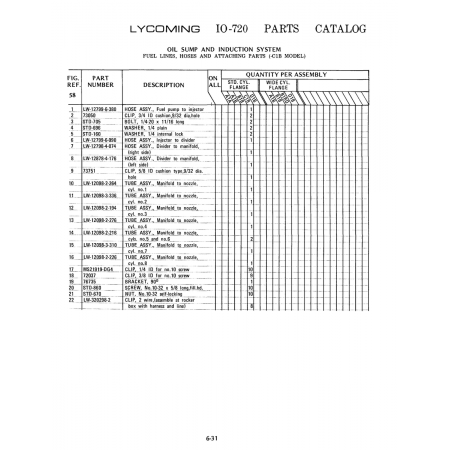

AI disclosure: this product description and its specifications were generated with AI assistance from the manufacturer's Illustrated Parts Catalog.
- Stock: Out of Stock
- Manufacturer Part #: LW-12098-2-216
- Part#: LW-12098-2-216
