429 Databus Analyzer/With Williamsburg Protocol, handheld 01-1404-01
429 DATABUS ANALYZER/With Williamsburg Protocol, handheld 01-1404-01429 Databus Analyzer | with Williamsburg Protocol

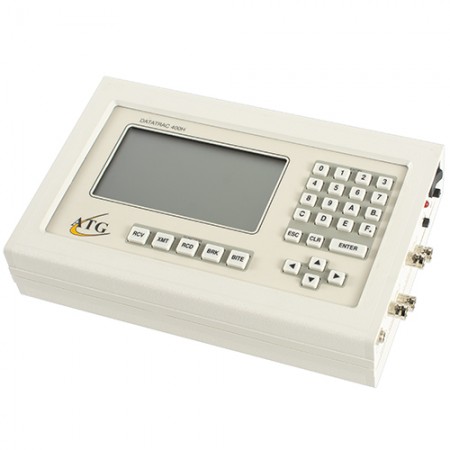

The DT400H Databus Analyzer is a lightweight handheld ARINC 429 databus analyzer that provides the same features as the full-sized DT400. This device provides breakpoint troubleshooting mode, 16-label recorder, 128-label transmitter, RS-232C port, D/A conversion, and a Williamsburg protocol analyzer. The LCD backlit display is sunlight readable and can operate for over six hours on battery power. The large 16-line display provides two main advantages: Bite messages and the ability to simultaneously display multiple labels. The screen accommodates the ARINC 604 normal or inactive mode formats and 350-label maintenance information can be read using a pre-stored database for 700-series equipment. In addition, the user can record up to 240 screes for later download to a PC or printer. BITE mode supports systems on the 737-300, 747-400, MD-11, and A320/330/340. Data from two buses can be displayed in nine formats (hex, binary, ASCII, engineering units, user programmed, etc). Database conforms to 429-15 and includes Boeing labels for AVM, EIS, EICAS, FSEU, and FQIS.
- Lightweight handheld unit
- 16-line, backlit display
- User friendly operation with BITE Mode that ensures that messaging such as setup menus and help screens all display on the single screen; BITE mode supports systems on the 737-300, 747-400, MD-11, and A320/330/340
- Record up to 240 screens for later download to PC/printer
- Displays multiple labels simultaneously
- Fully compatible with all other DATATRAC test equipment and PC-based support programs
- Database conforms to 429-15 and includes Boeing labels for AVM, EIS, EICAS, FSEU, and FQIS
AI disclosure: this description was generated with AI assistance from this product's own listing data.
Product Codes | |
|---|---|
| Mfr Part No: | 01-1404-01 |
| SAP: | 992 |
| ECCN: | 7B994 |
| SCHEDULE B CODE: | 9030.89.0100 |
Weight: 3.5 lb (1.6 kg)Dimensions: 6.3 x 9.75 x 2 in (16 x 24.75 x 5 cm)RECEIVER OPERATION:Ports: 2Bus Frequency: 12 kHz – 14.5 kHz or 100 kHz (selectable)Input Levels: 6.5 VDC to 13.5 VDC (A to B)Input Impedance: 12.0ΩWord Update: 1 ms to 19 sec. update rate displayed as instantaneous, min. or max. valueDisplay Format: Engineering units with pre-stored scaling based on equipment IDs, hexadecimal (full or data field), binary (full or data field), user-defined, graphic plots, or ASCII characterMaximum Words: 128 per channelTransmit Word Gap: 4 bitsDynamic Transmit: Repeat patterns of ramps and flat segments; levels programmable between + full scale and segment times or 0 to 999.999 sec.BREAKPOINT OPERATION:Label Sequence: A, B, A or B, A then B, B then AData Conditions: EQ, NEQ, OR, GT, LT, /GT/, /LT/Event Count: 1 to 99 before breakHistory: Up to 24,540 words in a programmable window about the breakpoint; selectable time stampTrigger Pulse: 5V, 0.02 msRECORD OPERATION:Channels: up to 16 selectable labelsSample Interval: 1 ms to 10 sec. (selectable)Record Capacity: 120 kbytes (e.g. 85 hours of single label at 1/sec)Playback Options: graphic plots, data lists, DAC, RS-232C Bite OperationBITE Formats: Compatible with distributed and centralized BITE concept used on 747-400, 737-300, MD-11, A320, A330, and A340 aircraftMenu Display: Standard 14-line x 24-character menu with selectable menu choicesSimulation: select NULL, DC1, DC2, or DC4 command outputs to simulate various flight phasesMaintenance Words: displays 350/351 label maintenance bits; bit status along with pre-stored text presentedRecording Feature: save up to 240 BITE screens for later viewing or downloadingReference: ARINC 429-15; Boing labels for AVM, EIS, FSEU, EICAS, and FQISPower Requirements: 110 or 220 VAC, 50 - 400 Hz AC Adapter, internal NiCad
