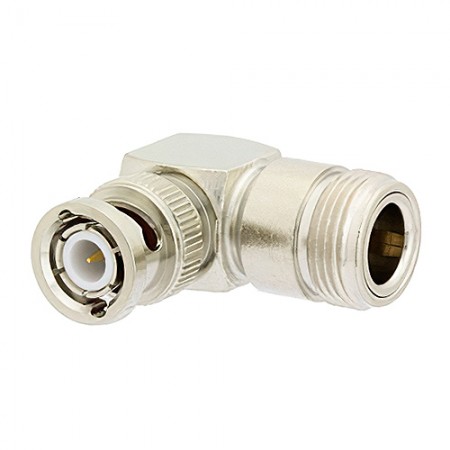

The PE9566 N female to BNC male adapter features a right angle body geometry and a gold-plated brass contact. This connector also has maximum 1.3:1 VSWR up to 4 GHz with a 50Ω impedance and is MIL-STC-348A compliant.
- Right angle body geometry
- 1.3:1 VSWR up to 4 GHz
- 50Ω impedance
- Gold-plated brass contact
- N & BNC interface compliant MIL-STD-348A
Product Codes | |
|---|---|
| Mfr Part No: | PE9566 |
Weight: 0.105 lb (47.63 g)Dimensions: 1.264 x 0.625 in (32.11 x 15.88 mm)Frequency Range: DC – 11 GHzVSWR: 1.3:1Connector Type: N female (connector 1) BNC male (connector 2)Contact Material: gold-plated brass (30 µ-in min.)Insulation Material: PTFEOuter Conductor Material: nickel-plated brass (100 µ-in)Body Material: nickel-plated brass (100 µ-in)Gasket Material: siliconeCoupling Nut: nickel-plated brass (100 µ-in)Operating Temperature: -65°C 165°C
- Stock: Out of Stock
- Manufacturer Part #: PE9566
