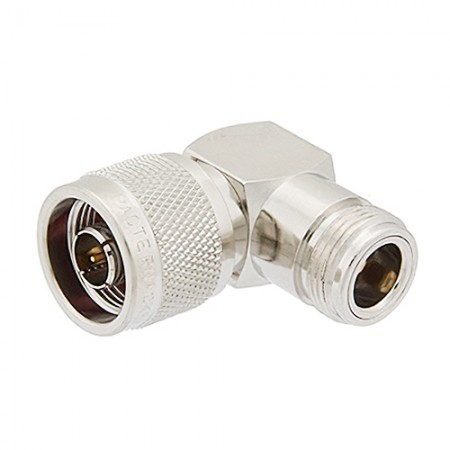

The PE9086 N male to N female right angle adaptor features gold-plated brass contact, a maximum 1.3:1 VSWR up to 11 GHz, and a 50Ω impedance. MIL-STD-3348A compliant.
- Right angle body geometry
- Gold-plated brass contact
- 50Ω impedance
- 1.3:1 maximum VSWR up to 11 GHz
- N-type interface compliant with MIL-STD-348A specification
Product Codes | |
|---|---|
| Mfr Part No: | PE9086 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8536.69.4010 |
Weight: 0.16 lb (72.57 g)Dimensions: 1.441 x 0.787 x 1.371 in (36.6 x 19.99 x 34.82 mm)Frequency Range: DC – 11 GHzVSWR: 1.3:1Operating Voltage: 1,000 Vrms ACConnector Type: N male (connector 1) N female (connector 2)Polarity: standardInterface Specification: MIL-STD-3348AContact Material: gold-plated brass (30 µ-in min.)Insulation Material: PTFEOuter Conductor: nickel-plated brass (100 µ-in min.)Body Material: nickel-plated brass (100 µ-in min.)Gasket Material: siliconeCoupling Nut Material: nickel-plated brass (100 µ-in min.)Operating Temperature: -65°C to 165°C
- Stock: Out of Stock
- Manufacturer Part #: PE9086
