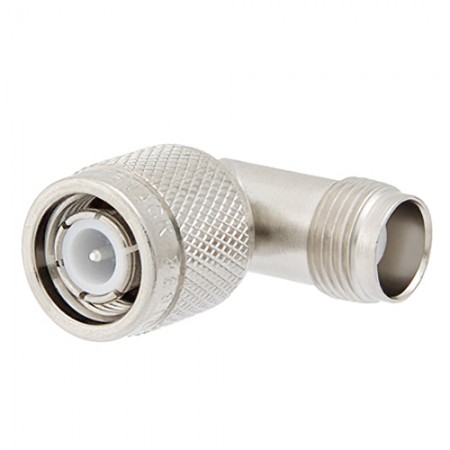

The PE9100 TNC male to TNC female adapter features a right angle body geometry and a silver-plated beryllium copper contact. This connector also has a frequency range from DC up to 11 GHz with a 50Ω impedance and is MIL-STC-348 compliant.
- Right angle geometry
- DC — 11 GHz frequency response
- 50Ω impedance
- Silver-plated beryllium copper contact
- TNC interface compliant with MIL-STD-348
Product Codes | |
|---|---|
| Mfr Part No: | PE9100 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8536.69.4010 |
Weight: 0.049 lb (22.23 g)Dimensions: 1.05 x 0.59 x 1.03 in (26.67 x 14.99 x 26.16 mm)Frequency Response: DC – 11 GHzOperating Voltage: 500 Vrms ACDielectric Withstanding Voltage: 1,500 Vrms ACPolarity: standardInterface Specification: MIL-STD-348Contact Material: silver-plated beryllium copper (200 µ-in min.)Insulation Material: PTFEOuter Conductor Material: nickel-plated brass (150 µ-in min.)Body Material: nickel-plated brass (150 µ-in min.)Operating Temperature: -65°C to 165°C
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: PE9100
