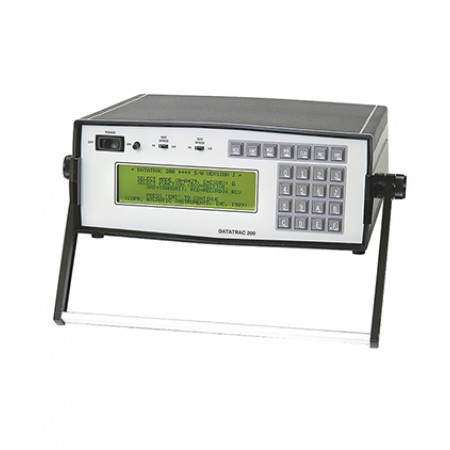

The Datatrac 200 CSDB Database Analyzers advanced features support two avionic databus standards, ARINC 429 and CSDB (Commercial Standard Data Bus). The DT200 has extensive receive and transmit capabilities and can manage many data words, display subfields, and manipulate data using features such as freeze, scroll, and clear. The DT200 also provides dual operation in either ARINC 429 or CSBD modes, data display in hexadecimal, binary, or engineering units, and general purpose recording mode for lab or flight tests.
- CSDB capability for Collins ProLine Avionics
- Light weight and battery operated
- Manages multiple data words
- Clearly displays subfields
- Manipulates data with such features as FREEZE, SCROLL, and CLEAR
- Receives and displays data in hexadecimals, binary, or engineering units
- Transmits multiple words at selected rates
- Identifies failures with breakpoint trigger pulse and history features
- Converts digit data to DC
- General purpose recording mode for lab or flight test
- Presents data transients as graphic time plots
- Operates anywhere for up to 6 hours on rechargeable battery
- Easy setup with menu selections
Product Codes | |
|---|---|
| Mfr Part No: | 01-1400-00 |
| ECCN: | 7B994 |
| SCHEDULE B CODE: | 8803.90.9010 |
Weight: 7.5 lbDimensions: 12.5 x 11.6 x 5 in.Power requirements: 7.0 Watts at 110 VAC/60 Hz 8.4 Watts at 28 VDC or internal batteryDisplay: 1.7" x 6.0" LCD with 8 lines x 40 char. mode or 64 x 256 dot graphics mode. Front panel dimming control
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: 01-1400-00
