3-CONDUCTOR 1/4 PLUG. Pair of 2ea. 33-1032-00429EX ARINC Databus Analyzer 1/4-inch 3-Conductor Phone PlugsThis 3-conductor, 1/4-inch phone plugs provide for the fabrication of cables to connect to the transmit and receiver cables of the  the 429EX databus analyzer.No product documents currently available.Product CodesMfr Part No:33-1032-00..

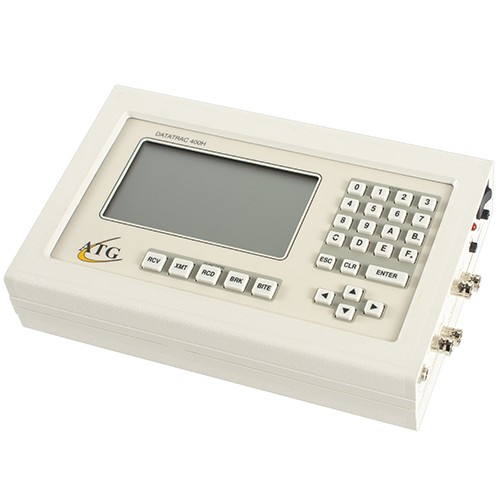

429 DATABUS ANALYZER/With Williamsburg Protocol, handheld 01-1404-01429 Databus Analyzer | with Williamsburg Protocol The DT400H Databus Analyzer is a lightweight handheld ARINC 429 databus analyzer that provides the same features as the full-sized DT400. This device provides breakpoint troubleshooting mode, 16-label recorder, 128-label transmitter, RS-232C port, D/A conversion, and a Williamsburg protocol analyzer. The LCD backlit display is sunlight readable and can operate for over six hours on battery power. The large 16-line display provides two main advantages: Bite messages and the ability to simultaneously display multiple labels. The screen accommodates the ARINC 604 normal or inactive mode formats and 350-label maintenance information can be read using a pre-stored database for 700-series equipment. In addition, the user can record up to 240 screes for later download to a PC or printer. BITE mode supports systems on the 737-300, 747-400, MD-11, and A320/330/340. Data from two buses can be displayed in nine formats (hex, binary, ASCII, engineering units, user programmed, etc). Database conforms to 429-15 and includes Boeing labels for AVM, EIS, EICAS, FSEU, and FQIS. Lightweight handheld unit16-line, backlit displayUser friendly operation with BITE Mode that ensures that messaging such as setup menus and help screens all display on the single screen; BITE mode supports systems on the 737-300, 747-400, MD-11, and A320/330/340Record up to 240 screens for later download to PC/printerDisplays multiple labels simultaneouslyFully compatible with all other DATATRAC test equipment and PC-based support programsDatabase conforms to 429-15 and includes Boeing labels for AVM, EIS, EICAS, FSEU, and FQISProduct CodesMfr Part No:01-1404-01SAP:992ECCN:7B994SCHEDULE B CODE:9030.89.0100Weight: 3.5 lb (1.6 kg) Dimensions: 6.3 x 9.75 x 2 in (16 x 24.75 x 5 cm) RECEIVER OPERATION: Ports: 2 Bus Frequency: 12 kHz – 14.5 kHz or 100 kHz (selectable) Input Levels: 6.5 VDC to 13.5 VDC (A to B) Input Impedance: 12.0Ω Word Update: 1 ms to 19 sec. update rate displayed as instantaneous, min. or max. value Display Format: Engineering units with pre-stored scaling based on equipment IDs, hexadecimal (full or data field), binary (full or data field), user-defined, graphic plots, or ASCII character Maximum Words: 128 per channel Transmit Word Gap: 4 bits Dynamic Transmit: Repeat patterns of ramps and flat segments; levels programmable between + full scale and segment times or 0 to 999.999 sec. BREAKPOINT OPERATION: Label Sequence: A, B, A or B, A then B, B then A Data Conditions: EQ, NEQ, OR, GT, LT, /GT/, /LT/ Event Count: 1 to 99 before break History: Up to 24,540 words in a programmable window about the breakpoint; selectable time stamp Trigger Pulse: 5V, 0.02 ms RECORD OPERATION: Channels: up to 16 selectable labels Sample Interval: 1 ms to 10 sec. (selectable) Record Capacity: 120 kbytes (e.g. 85 hours of single label at 1/sec) Playback Options: graphic plots, data lists, DAC, RS-232C Bite Operation BITE Formats: Compatible with distributed and centralized BITE concept used on 747-400, 737-300, MD-11, A320, A330, and A340 aircraft Menu Display: Standard 14-line x 24-character menu with selectable menu choices Simulation: select NULL, DC1, DC2, or DC4 command outputs to simulate various flight phases Maintenance Words: displays 350/351 label maintenance bits; bit status along with pre-stored text presented Recording Feature: save up to 240 BITE screens for later viewing or downloading Reference: ARINC 429-15; Boing labels for AVM, EIS, FSEU, EICAS, and FQIS Power Requirements: 110 or 220 VAC, 50 - 400 Hz AC Adapter, internal NiCad..

429 TX/RX DATABUS ANALYZER/With Boeing labels. Printer Port 01-1001-12..

429 VINYL SOFT SIDE CASE/For use with 429E, 429EB and 429EX. 15-5022-00Vinyl Soft Side Case | For 429 Databus AnalyzerThe Soft-sided Vinyl Case is designed for the 429 Databus Analyzer. This case is compatible with 429E, 429EB and 429EX models.Vinyl materialSoft-sided429E, 429EB and 429EX modelsProduct CodesMfr Part No:15-5022-00SAP:11692SCHEDULE B CODE:9014.20.8040..

490S-1 INTERFACE CABLE (P/N: 55-1202-03). Aircraft control cable. Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number 55-1202-03 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

ADF ANTENNA FIELD SIMULATOR/T1201 (P/N: 55-1201-11). Avionics antenna. Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number 55-1201-11 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

ADF INTERFACE CABLE (P/N: 55-1201-03). Aircraft control cable. Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number 55-1201-03 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

ADF/VOR/MB/ILS/THOMSON MMR DFI 01-1201-00. FAA-approved aviation aftermarket part. Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number 01-1201-00 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

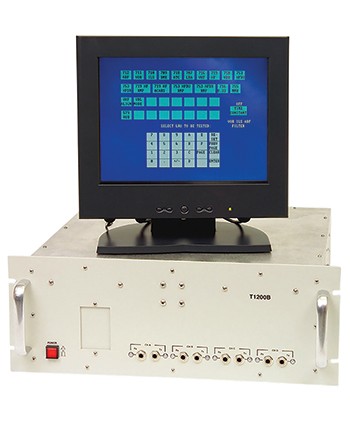

ARINC 429 CONTROL DISPLAY UNIT 01-1200-B2T1200B ARINC 429 | Control Display UnitThe T1200B ARINC 429 control display unit is designed for use with any system using an ARINC 429 databus. The T1200 is equipped with an external, touch-sensitive color Liquid Crystal Display that provides a convenient user configuration menu that makes it easy to select data to be sent or received. This unit is compatible with all major makes of navigation/communication equipment due to its ARINC 429 compatibility. The T1200B also provides an advantage with on-board electrical systems with its ability to provide control and display functions such as operating or directional lights, electrical switching, and cockpit display panels.External 12-inch touch-screen display allows main unit to be located away from operationPS-2 style mouse may be used with or without touchscreenMaybe ordered with front or rear display connectorsEasy-to-use menu selection of avionics test formatsTest formats that follow specific OEM avionic CMMsUp to 10 words transmitted on each channelTransmission and reception of all ARINC 429 wordsTwo low speed and two high speed ARINC 426 transmitter/receiver cardsAbility to decode VOR, ILS, ADF, VHF, HF, DME, LRA, and ATC associated words as well as all other BCD and BNR data words into easily recognizable engineering unitsProduct CodesMfr Part No:01-1200-B2SAP:934ECCN:7B994SCHEDULE B CODE:9031.89.0100Weight: 18 lb (main unit) 7.5 lb (display) Dimensions: 19 x 16 x 7 in (main unit) 12.3 x 5.7 x 12.2 in (display) Power requirements: 50-60 Hz, 100-240 VAC..

ARINC 429 DATABUS ANALYZER 01-1001-05. FAA-approved aviation aftermarket part. Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number 01-1001-05 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

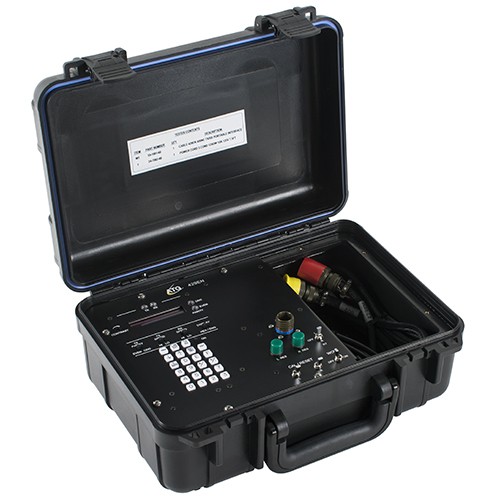

ARINC 429 TX/RX KINETICS CASE/28 Volt DC 01-1001-60429EN Databus Analyzer | Kinetic Case, 28 VDCThe 429EN databus analyzer allows avionic technicians and line-maintenance personnel to troubleshoot ARINC 429 labels. This unit can selectively trap labels in three different ways. The 429EN has non-volatile memory and user-selectable ARINC Air Transport Equipment Identifier codes. The transmitted and received data can be viewed in either hexadecimal or easy-to-understand engineering format.The 429EN databus analyzer includes a Kinetics case and 28 VDCTransmits up to ten 32-bit words in ARINC 429 or 419 bipolar RZ format; the transmit bit rate can be set for high (100 kbps) or low (12.5 kbps) speed with selectable odd or even parityProvides keypad entry of transmit label (octal) with data entry via hexadecimal (bits 32 through 9) or by engineering equivalent valuesNon-RF labels have additional screens that allow for slewing data with programmable slew limits and direction of slew in desired incrementsTransmitter operation is independent of the receiver, allowing simultaneous operation of both the transmitter and receiverUnit can receive and store up to 255 high or low speed 32 bit words in 429 or 419 bipolar RZ format as well as storing 511 occurrences of one label of data only from strings of data containing multiple wordsSpecial trigger trap mode expands receiver capabilities further to allow trapping of block data protocols or of alphanumeric strings of dataSwitch-selectable receiver bus speedLCD display of received labels is provided with selection of hexadecimal or engineering formatsTrap mode allows the operator to select which labels are trapped (stored); trapped data is stored in non-volatile memory until clearedProduct CodesMfr Part No:01-1001-60SAP:884NSN:6625-01-536-1918SCHEDULE B CODE:9030.89.0100SIN:602-40USML:XI(C)Weight: 3 lb (1.36 kg) Dimensions: 7.25 x 4.5 x 2.5 in (18.42 x 11.43 x 6.35 cm) TRANSMITTER OPERATIONS: Pulse Rise/Fall Time: Lo speed 10+5.0 µs Hi speed 1.5 µs Voltage Levels Line A to B): HI; +10.0 + 1.0 VDC NULL; 0.0 +0.5 VDC LO; -10 + 1.0 VDC Output Impedance: 75 + 5Ω (line A to B) Bit Rate: low speed; 12.5 kbps hi speed; 100.0 kbps Word Rate: 4 to 59,998 ms (selectable) Parity: ODD or EVEN (selectable)..

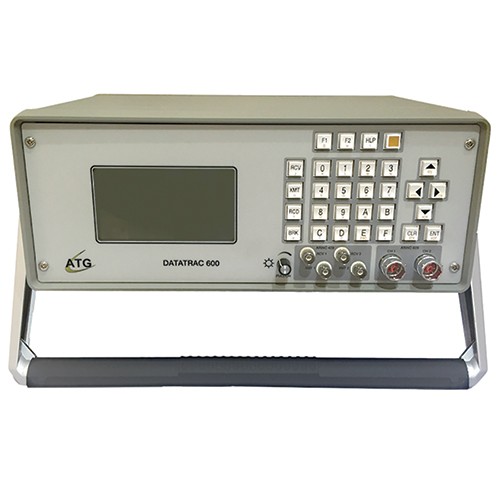

ARINC 429-629 DATABUS ANALYZER/With Williamsburg Protocol, ARINC 629 Single Channel 01-1405-02..

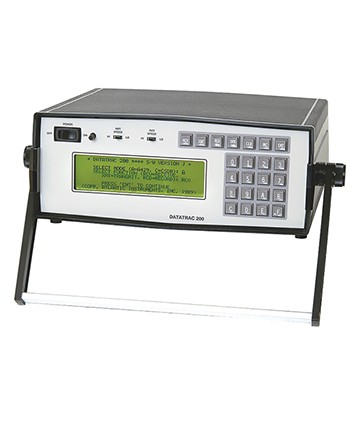

ARINC 429/CSDB DATABUS ANALYZER 01-1400-00DT200 Databus Analyzer | ARINC 429, CSDBThe Datatrac 200 CSDB Database Analyzers advanced features support two avionic databus standards, ARINC 429 and CSDB (Commercial Standard Data Bus). The DT200 has extensive receive and transmit capabilities and can manage many data words, display subfields, and manipulate data using features such as freeze, scroll, and clear. The DT200 also provides dual operation in either ARINC 429 or CSBD modes, data display in hexadecimal, binary, or engineering units, and general purpose recording mode for lab or flight tests.CSDB capability for Collins ProLine AvionicsLight weight and battery operatedManages multiple data wordsClearly displays subfieldsManipulates data with such features as FREEZE, SCROLL, and CLEARReceives and displays data in hexadecimals, binary, or engineering unitsTransmits multiple words at selected ratesIdentifies failures with breakpoint trigger pulse and history featuresConverts digit data to DCGeneral purpose recording mode for lab or flight testPresents data transients as graphic time plotsOperates anywhere for up to 6 hours on rechargeable batteryEasy setup with menu selectionsProduct CodesMfr Part No:01-1400-00ECCN:7B994SCHEDULE B CODE:8803.90.9010Weight: 7.5 lb Dimensions: 12.5 x 11.6 x 5 in. Power requirements: 7.0 Watts at 110 VAC/60 Hz 8.4 Watts at 28 VDC or internal battery Display: 1.7" x 6.0" LCD with 8 lines x 40 char. mode or 64 x 256 dot graphics mode. Front panel dimming control..

BATTERY CHARGER/100-240 Volt AC to 9 VDC. For use with 429EX. 15-0009-01429EX Databus Analyzer Battery Charger | 100V – 240V This battery charger allows charging of the 429EX Databus Analyzer. It provides 9-volts DC @ 500 mA of charging and operates on 100VAC – 240VAC.Compatible with 429EX ARINC 429 Databus Analyzer100VAC — 240VAC input power9VDC @ 500 mA output powerProduct CodesMfr Part No:15-0009-01ECCN:EAR99SCHEDULE B CODE:9033.00.0000Input Current: 100VAC — 240VAC Output Current: 9VDC @ 500 m..

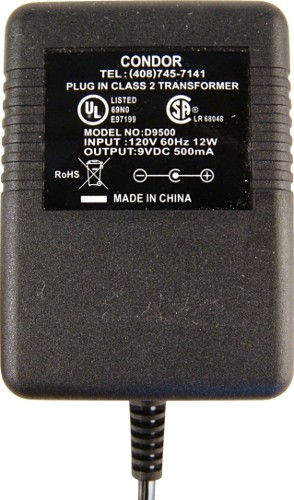

BATTERY CHARGER/110 to 250 Volt, AC to 9 VDC. For use with 429EBP. 15-0009-03429EBP Databus Analyzer Battery Charger | 110V input, 9 VDC outputThis battery charger allows charging of the 429EBP Databus Analyzer. It provides 9-volts DC @ 500 mA of charging and operates on 110 — 250 volts.9 VDC output current110 VAC input currentProduct CodesMfr Part No:15-0009-03..

BATTERY CHARGER/220V. For use with DT-200. 15-0009-21Battery Charger | 220V, For DT-200This battery charger is designed for the DT-200 Databus Analyzer.Compatible with DT-200 Databus Analyzer220VACProduct CodesMfr Part No:15-0009-21ECCN:EAR99SCHEDULE B CODE:9033.00.0000..

BATTERY CHARGER/220V. For use with DT400H and DT350H. SA-121A6IV-2W/EURO-205DDT400H & DT350H Battery Charger | 220VThis battery charger allows charging of the DataTrac 400H & 350H ARINC 429 databus analyzer.Provides charging for DataTrac DT400H & DT350H ARINC 429 databus analyzerProduct CodesMfr Part No:SA-121A6IV-2W/EURO-205DInput Voltage: 220V..

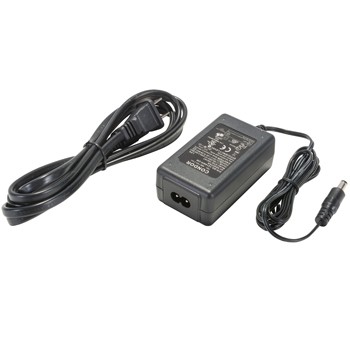

BATTERY CHARGER/For DT-400H 15-0009-10DT400H Databus Analyzer Battery ChargerThis battery charger allows charging of the DataTrac 400H ARINC 429 databus analyzer.Compatible with DataTrac 400H ARINC 429 databus analyzerProduct CodesMfr Part No:15-0009-10ECCN:EAR99SCHEDULE B CODE:9033.00.0000..

CABLE RTA-83A INTERFACE CABLE/For use with T1202. (P/N: 55-1202-08). Aircraft control cable. Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number 55-1202-08 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

CD MAINTENANCE MANUAL/For use with T1201. E6-1201-00..
