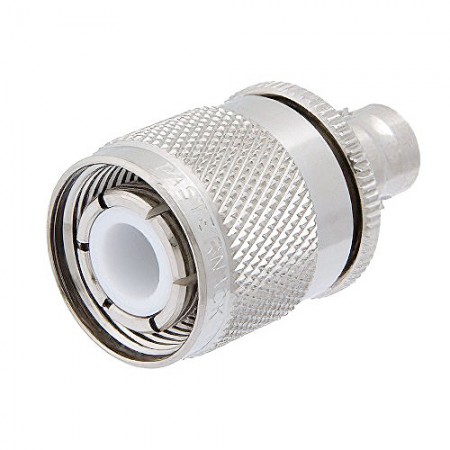

The PE9126 HN male to BNC female adapter features a straight body geometry and a gold-plated brass contact. This connector also has maximum 1.5:1 VSWR up to 4 GHz with a 50Ω impedance and is MIL-STC-348A compliant.
- Straight body geometry
- 1.5:1 maximum VSWR up to 4 GHz
- 50Ω impedance
- Gold-plated brass contacts
- HN & BNC compliant MIL-STD-348A compliant
Product Codes | |
|---|---|
| Mfr Part No: | PE9126 |
Weight: 0.103 lb (46.72 g)Dimensions: 1.508 x 0.866 in (38.3 x 22 mm)Frequency Range: DC – 4 GHzVSWR: 1.5:1Operating Voltage: 500 Vrms ACDielectric Withstanding Voltage: 1,500 Vrms ACPolarity: standardInterface Specifications: MIL-STD-348AContact Material: gold-plated brass (30 µ-in min.)Insulation Material: PTFEOuter Conductor Material: nickel-plated brass (100 µ-in min.)Body Material: nickel-plated brass (100 µ-in min.)Gasket Material: siliconeCoupling Nut Material: nickel-plated brass (100 µ-in min.)Operating Temperature: -65°C to 165°C
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: PE9126
