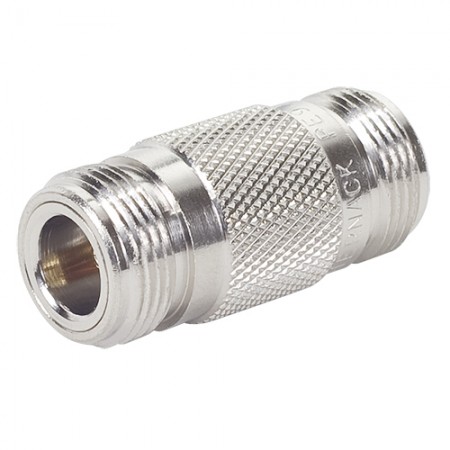

The PE9006 N-type to N-type female adapter facilities the connection one N-type terminal to another. It features a straight body design and a maximum VSWR of 1.3:1 up to 11 GHz.
N-type female to N-type female adapter (Alternate Part# PE9006) has maximum VSWR of 1.3:1 up to 11 GHz, 50Ω impedance, and MIL-STD-348A compliant.
- 1.3:1 Max VSWR up to 11 GHz
- 50 ohm impedance
- N interface compliant with MIL-STD-348A
- Gold-Plated Brass contact
- 30 µ-in gold contact plated
Product Codes | |
|---|---|
| Mfr Part No: | PE9006 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8536.69.4010 |
Weight: 0.1 lbDimensions: 1.437 x 0.669 in (36.5 x 16.99 in)Frequency Range: DC – 11 GHzVSWR: 1.3:1Impedance: 50ΩOperating Voltage: 1,000 Vrms (AC)Connector Type: N FemalePolarity: standardInterface Specification: MIL-STD-348AContact Material: Gold-Plated brassInsulation Material: PFTEOuter Conductor: Nickel-plated brassOperating Temperature: -65°C to 165°C
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: PE9006
