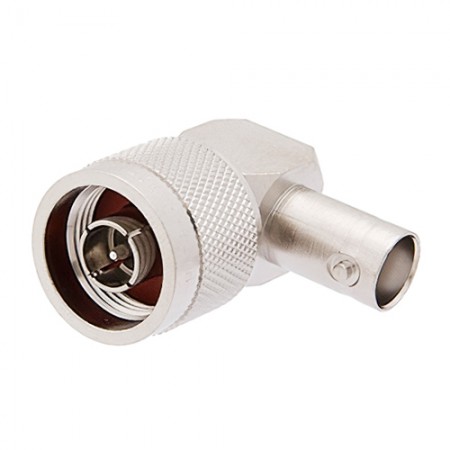

The PE9278 N male to to BNC female adapter features a right angle geometry for connecting cables with N-type and BNC-type terminals. This adapter features a maximum VSWR of 1.2:1 up to 4 GHz and is MIL-STD-348 compliant.
- Right angle geometry
- VSWR 1.2:1 max up to 4 GHz
- N interface compliant MIL-STD-348
- BNC interface compliant MIL-STD-348
- Silver-plated contact
- Contact plated per QC-S-365
Product Codes | |
|---|---|
| Mfr Part No: | PE9278 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8205.59.5560 |
Weight: 0.11 lb (49.9 g)Dimensions: 1.29 x 0.8 x 1.275 in (32.77 x 20.32 x 32.39 mm)Frequency Range: DC – 4 GHzVSWR: 1.2:1Impedance: 50ΩOperating Temperature: -65°C to 165°CConnector Type: N male (connector 1) BNC female (connector 2)Polarity: StandardInterface Specifications: MIL-STD-348Contact Material: silver QQ-S-365Insulation Material: PTFEOuter Conductor: nickel-plated brassBody Material: nickel-plated brassCoupling Nut: nickel-plated brass
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: PE9278
