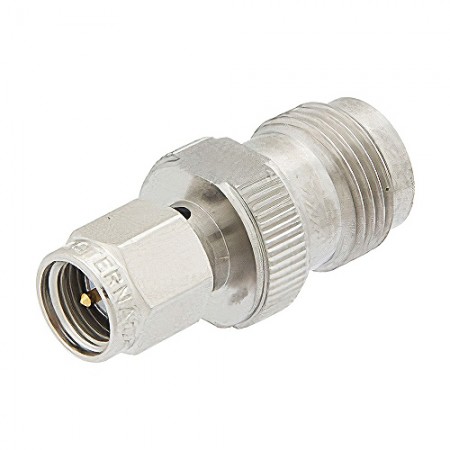

Coax Adapter/Sma male to Tnc female PE9078
Condition NE — Condition disclosed — is shown up front on this listing, along with the exact price, current availability, and what certification paperwork ships with the part, so you can confirm fit and airworthiness before you buy. Full specifications and answers to common questions are below.
What does “New” condition mean?
Request certification documents (8130-3 / EASA Form 1 / C of C)
Description
The PE9078 SMA male to TNC female adapter features a straight body geometry and a gold-plated beryllium copper contact. This connector also has maximum 1.3:1 VSWR up to 11 GHz with a 50Ω impedance and is MIL-STC-346A compliant.
- Straight body geometry
- 1.3:1 maximum VSWR up 11 GHz
- 50Ω impedance
- Gold-plated beryllium copper contact (50 µ-in plating)
- SMA male to TNC female adapter (MIL-STD-346A compliant)
Product Codes | |
|---|---|
| Mfr Part No: | PE9078 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8536.69.4010 |
Weight: 0.025 lb (11.34 g) Dimensions: 1.03 x 0.5 x 0.5 in (26.16 x 12.7 x 12.7 mm) Frequency Range: DC – 11 GHz Impedance: 50Ω VSWR: 1.3:1 Operating Voltage: 500 Vrms AC Connector Type: SMA male (connector 1) TNC female (connector 2) Hex Size: 5/8 in Polarity: standard Interface specification: MIL-STC-346A Mating Torque: 3 – 5 in-lb (0.34 – 0.57 Nm) Contact Material: gold-plated beryllium copper (50 µ-in min.) Insulation Material: PTFE Outer Conductor: Passivated Stainless Steel (TNC connector) Body Material: Passivated Stainless Steel (SMA) Gasket Material: Silicone Coupling Nut Material: nickel-plated brass (100 µ-in min.) Operating Temperature: -65°C to 165°C
Specifications
| Part number | PE9078 |
|---|---|
| Manufacturer | Pasternack |
| Condition | NE |
| Airworthiness | Condition disclosed |
| Country of origin | — |
| Lead time | days |
Frequently asked
Does the Coax Adapter/Sma male to Tnc female PE9078 include certification paperwork?
This item is supplied as "Condition disclosed" rather than with full 8130-3 traceability — normal for some condition codes, and it does not mean the part is unusable, only that the paperwork profile differs. Check the listing for exactly what documentation is included, and request any available records before you purchase if your installation requires them.
What condition is this part?
This part is listed in condition NE — Condition disclosed. Condition codes describe how a part reached its current state (for example new, overhauled, serviceable, repaired, or as-removed) and directly affect what paperwork ships with it and how it should be installed. See the Glossary for the full definition of every condition code we use.
How fast does it ship?
This item is in stock and ships promptly, usually the same or next business day once your order and payment are confirmed. Exact transit time depends on your shipping method and destination and is shown at checkout. If your aircraft is grounded, AOG expedited handling is available on request — no phone tree required.
Can I return it?
You may return this item within 30 days of delivery if it is unopened, uninstalled, and in its original packaging. Items that have been installed, powered on, opened hazmat, or separated from an attached 8130-3 tag are non-returnable because their airworthiness status can no longer be confirmed once removed from the part. See our Returns policy for the full process.
