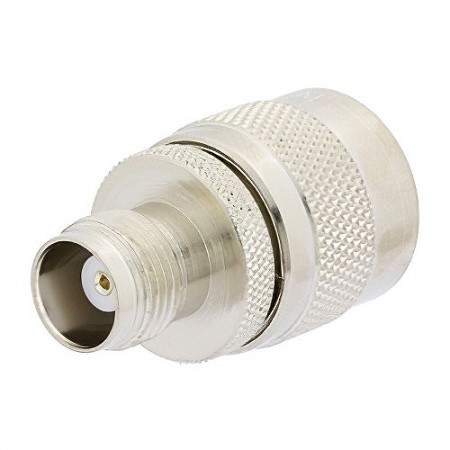

The PE9564 TNC female to C male adapter features a straight body geometry and a silver-plated contact. This connector operates up to 11 GHz with a 50Ω impedance and is MIL-STC-348 compliant.
- Straight body geometry
- 50Ω impedance
- DC – 11 GHz frequency response
- Silver-plated contact
- TNC & C type interface compliant with MIL-STD-348
AI disclosure: this description was generated with AI assistance from this product's own listing data.
Product Codes | |
|---|---|
| Mfr Part No: | PE9564 |
| SCHEDULE B CODE: | 8536.69.4010 |
Weight: 0.0714 lb (32.38 g)Dimensions: 1.264 x 0.75 in (32.11 x 19.05 mm)Frequency Range: DC – 11 GHzOperating Voltage: 500 Vrms ACDielectric Withstanding Voltage: 1,500 Vrms ACInsulation Resistance: 5,000 MΩConnector Type: TNC female (connector 1) C male (connector 2)Contact Material: silver-plated (QQ-N-290)Insulation Material: PTFEOuter Conductor: nickel-plated brass (QQ-N-290)Body Material: nickel-plated brass (QQ-N-290)Operating Temperature: -65°C to 165°C
- Stock: Out of Stock
- Manufacturer Part #: PE9564
